Roll collection mechanism for testing of sanitary condoms

Project Details

My picture

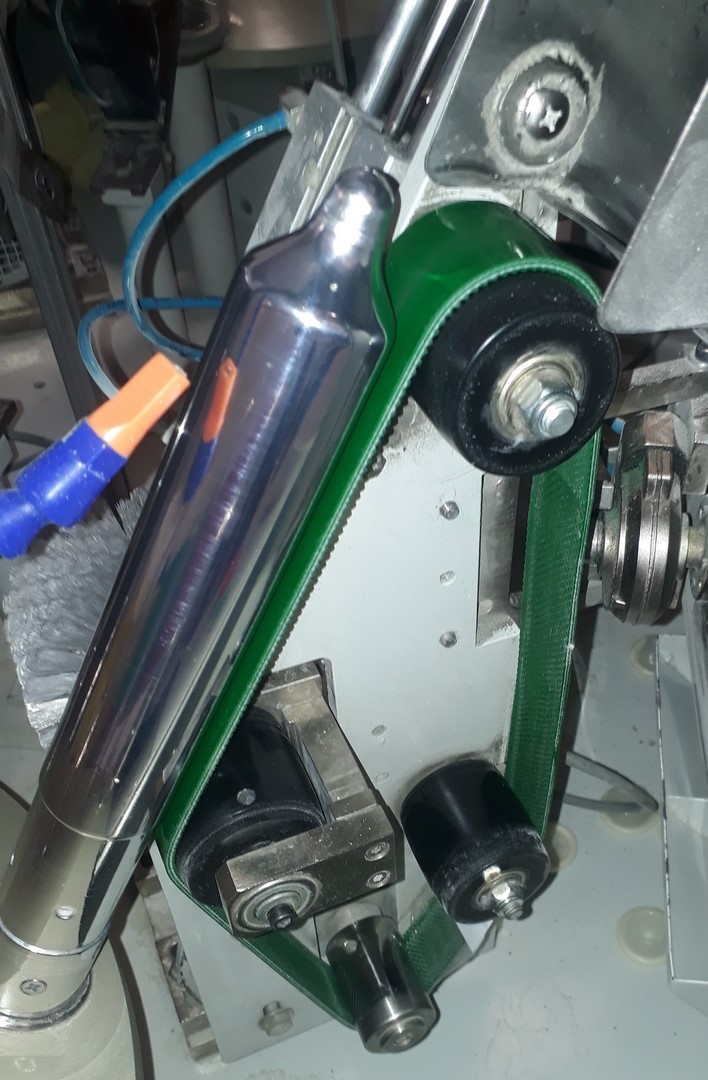

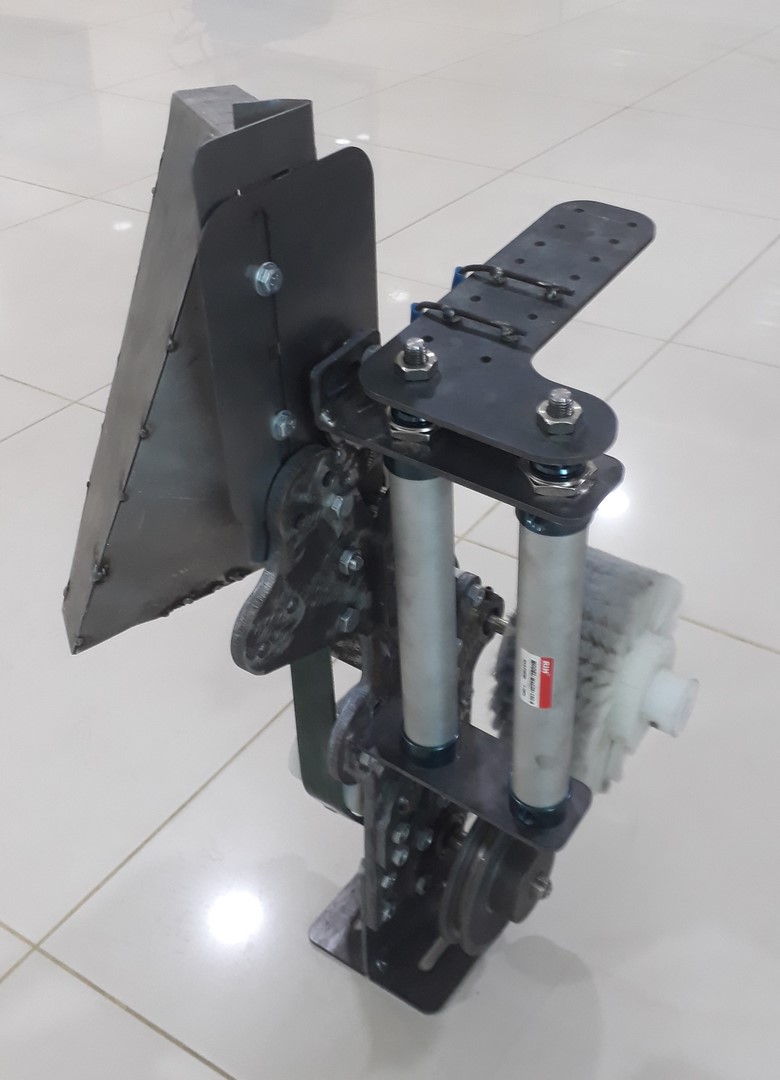

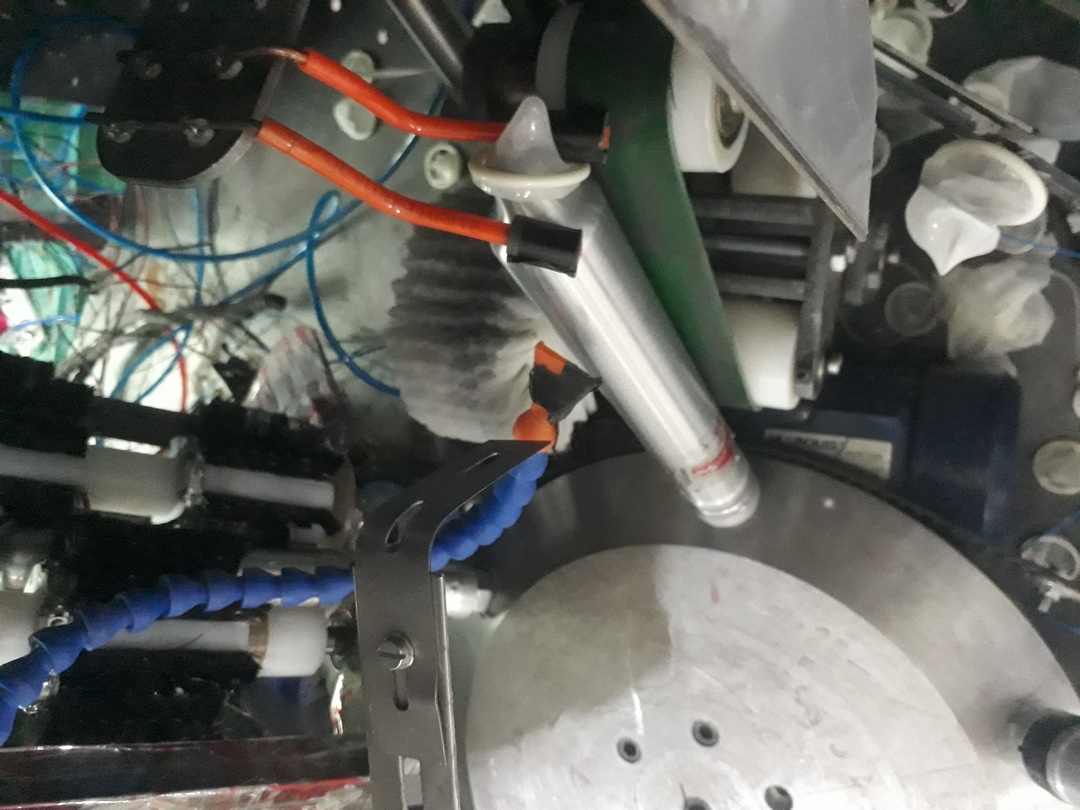

This mechanism is used to roll the condoms to be tested in the condom testing device. This mechanism has two pneumatic jacks. In the condom testing machine, the condoms must be removed from the mandrels after the testing process. This process should be carried out in such a way that the condoms are damaged as little as possible. An overview of the mechanism can be found in the following illustrations.

My picture
My picture
My picture
Download Summary

Some Cool Title

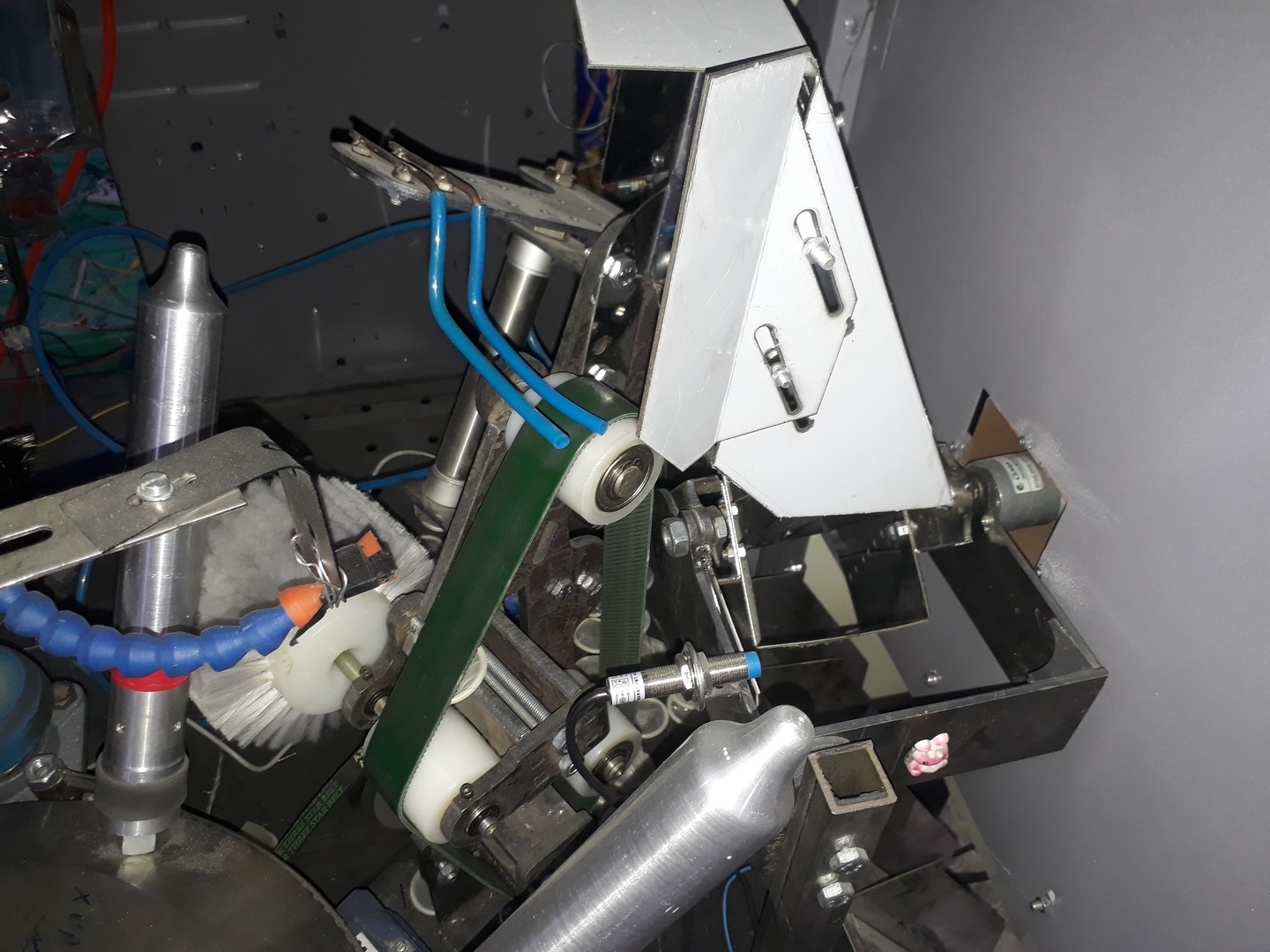

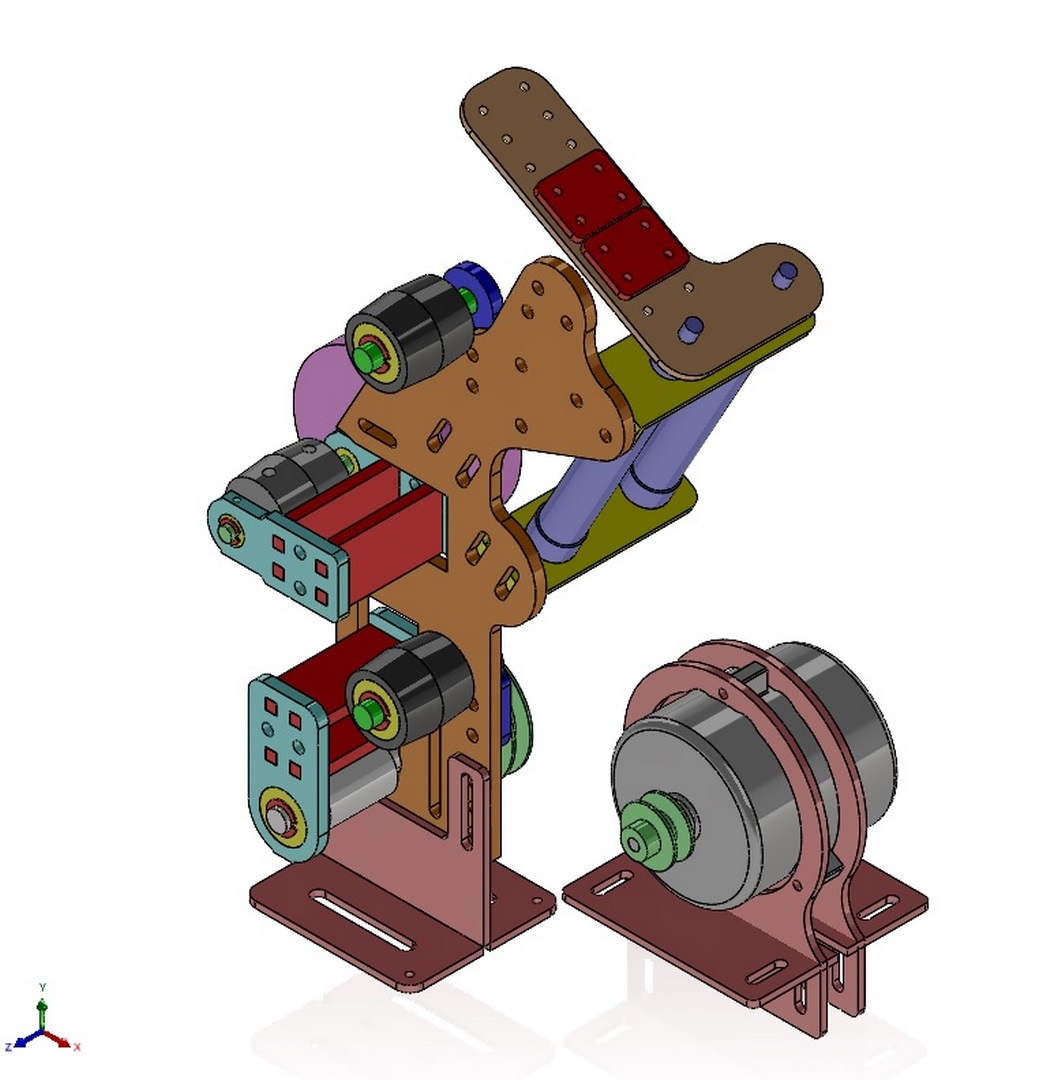

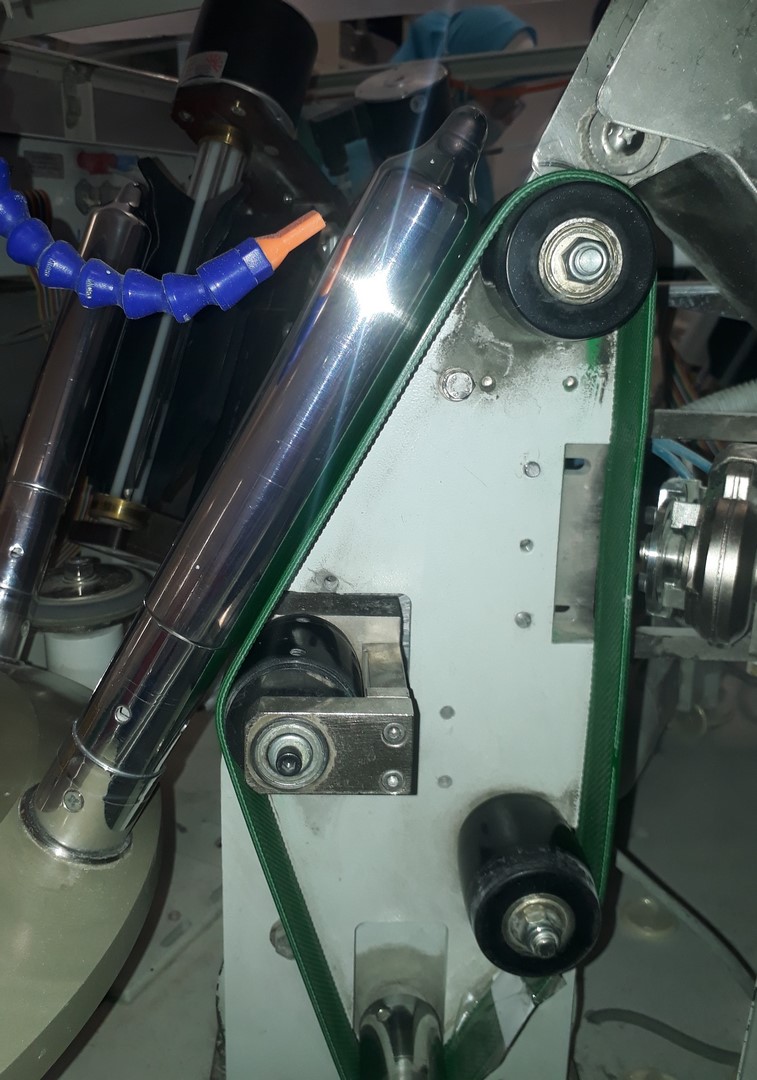

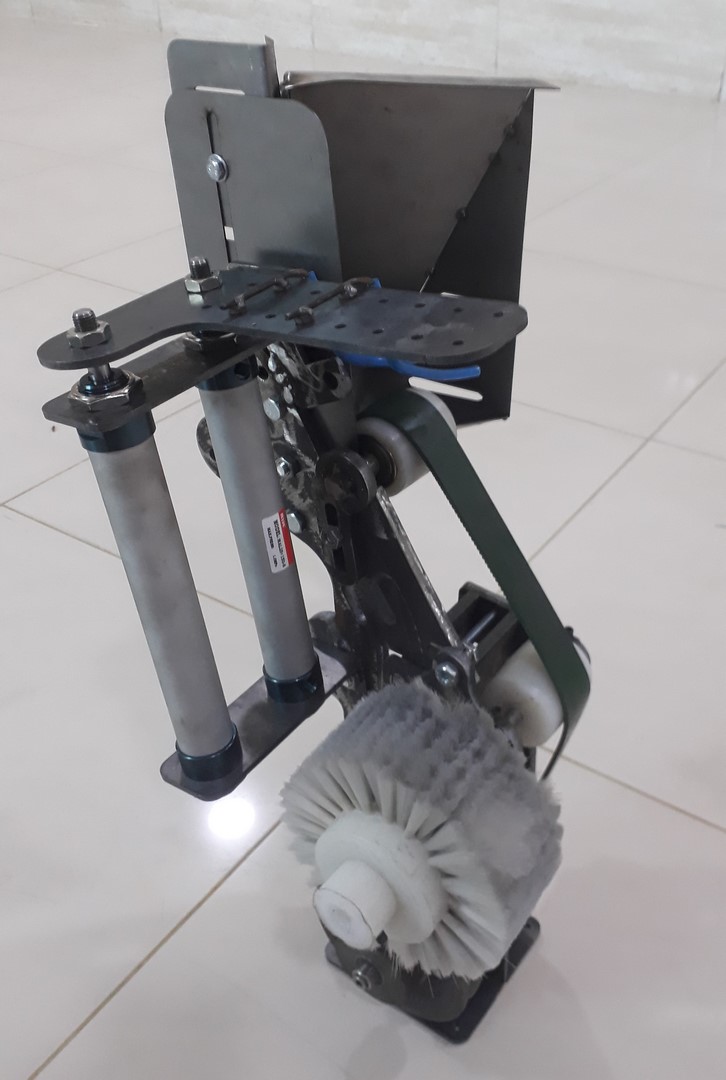

The mechanism for rolling the condoms to be tested in the condom testing machine is equipped with a brush. In the first step, this brush rolls up the lower part of the condom a little. Then this rolled thickness is completely rolled up by the rotating belt of the mechanism. In the last step, the rolled condom is propelled into the channel of the roll collector by the air blower. During the entire rolling process, the condom is held in place from above by two soft clamps so that it does not come out of the mandrel due to the movement of the belt.

This system was used in the research and development phase of the project to develop and manufacture condom testers.

My picture
My picture
My picture
My picture

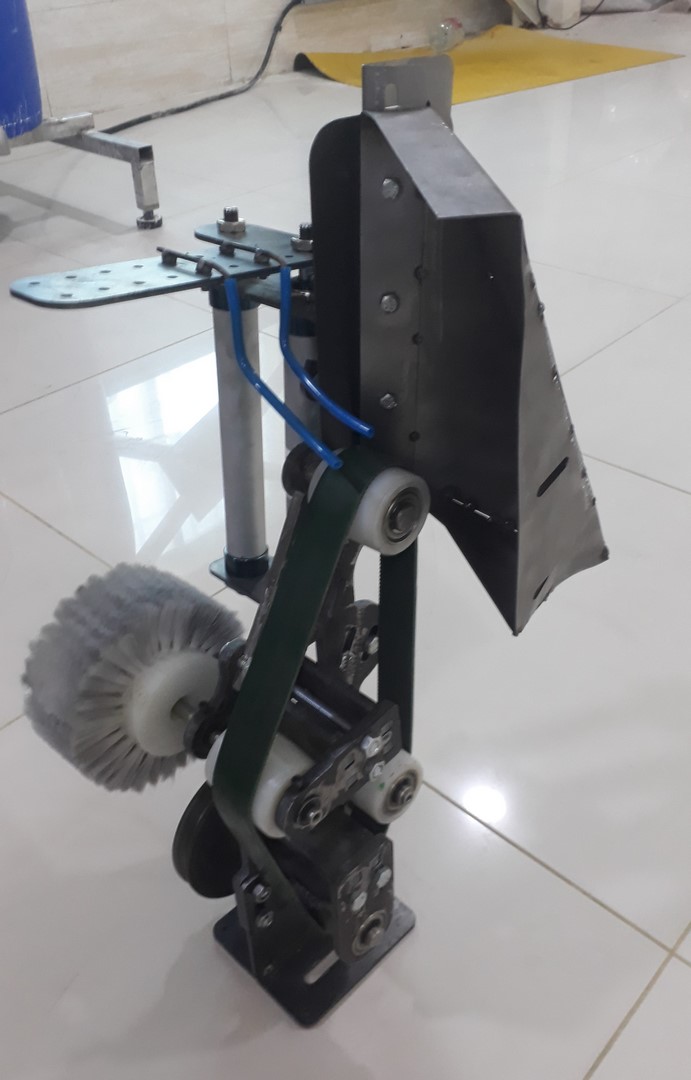

As the main project progressed, some parts of the mechanism were changed and new plans were implemented after the problems were solved. The following videos show the different phases of testing this mechanism.

The following videos show some initial tests of this experimental mechanism.
