Rotary mechanism with three different voltage zones for testing sanitary condoms V1.1

Project Details

My picture

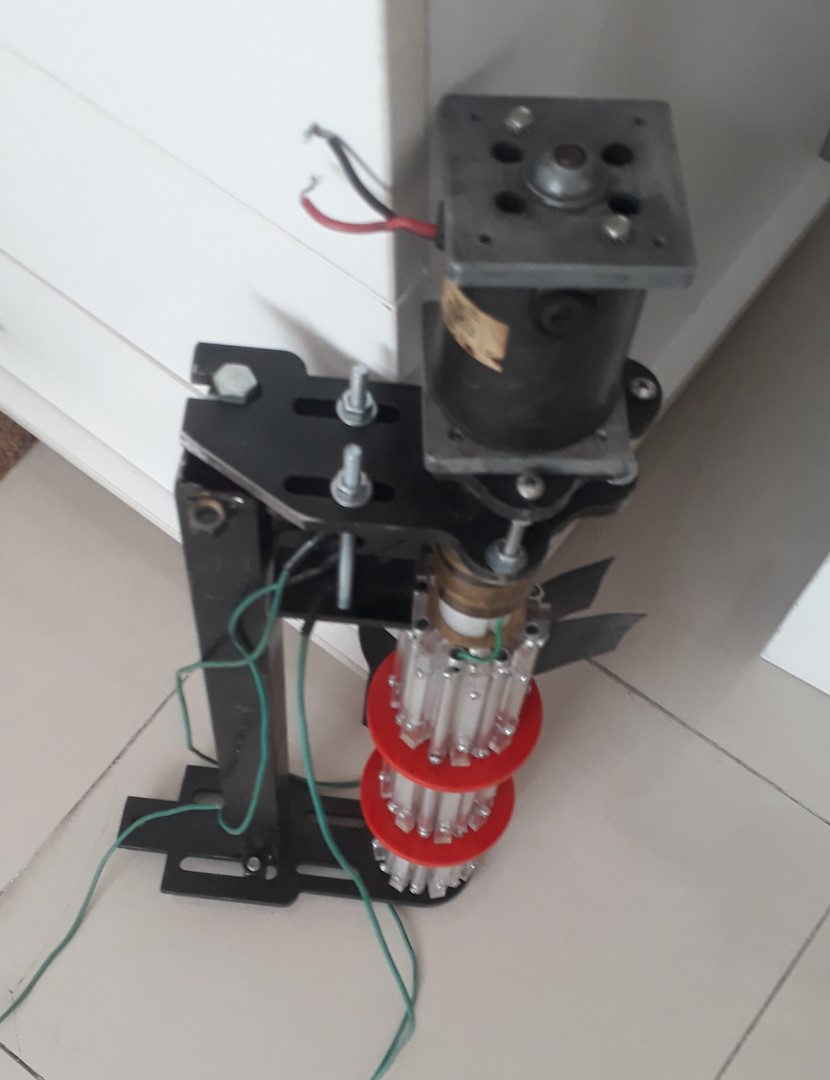

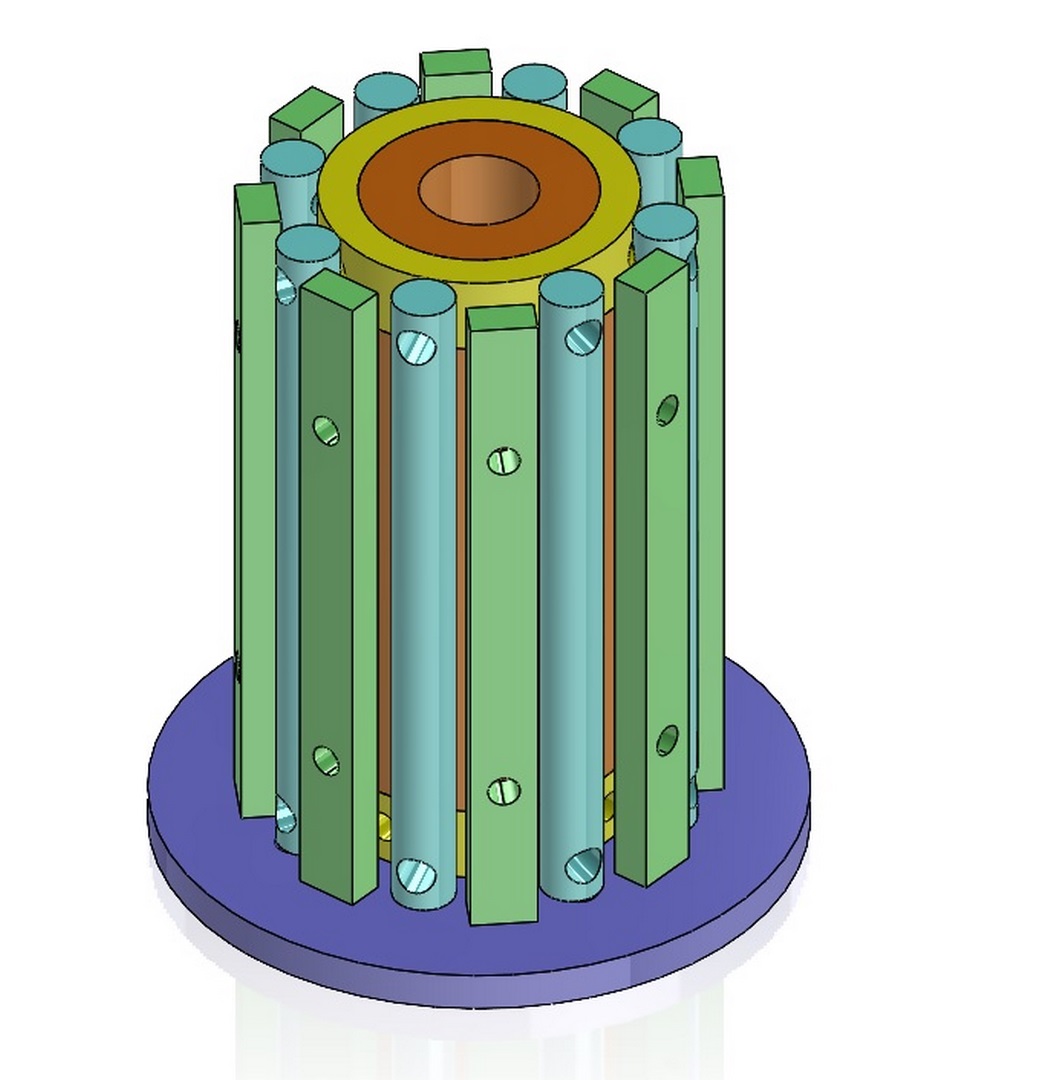

This mechanism is used to test different types of sanitary condoms in terms of condom thickness. In the condom industry, especially in the production of condoms by dipping them in latex, it is very important and essential to test the condoms produced to ensure that they have no holes. An overview of the mechanism can be found in the following illustrations.

My picture
My picture
Download Summary

Some Cool Title

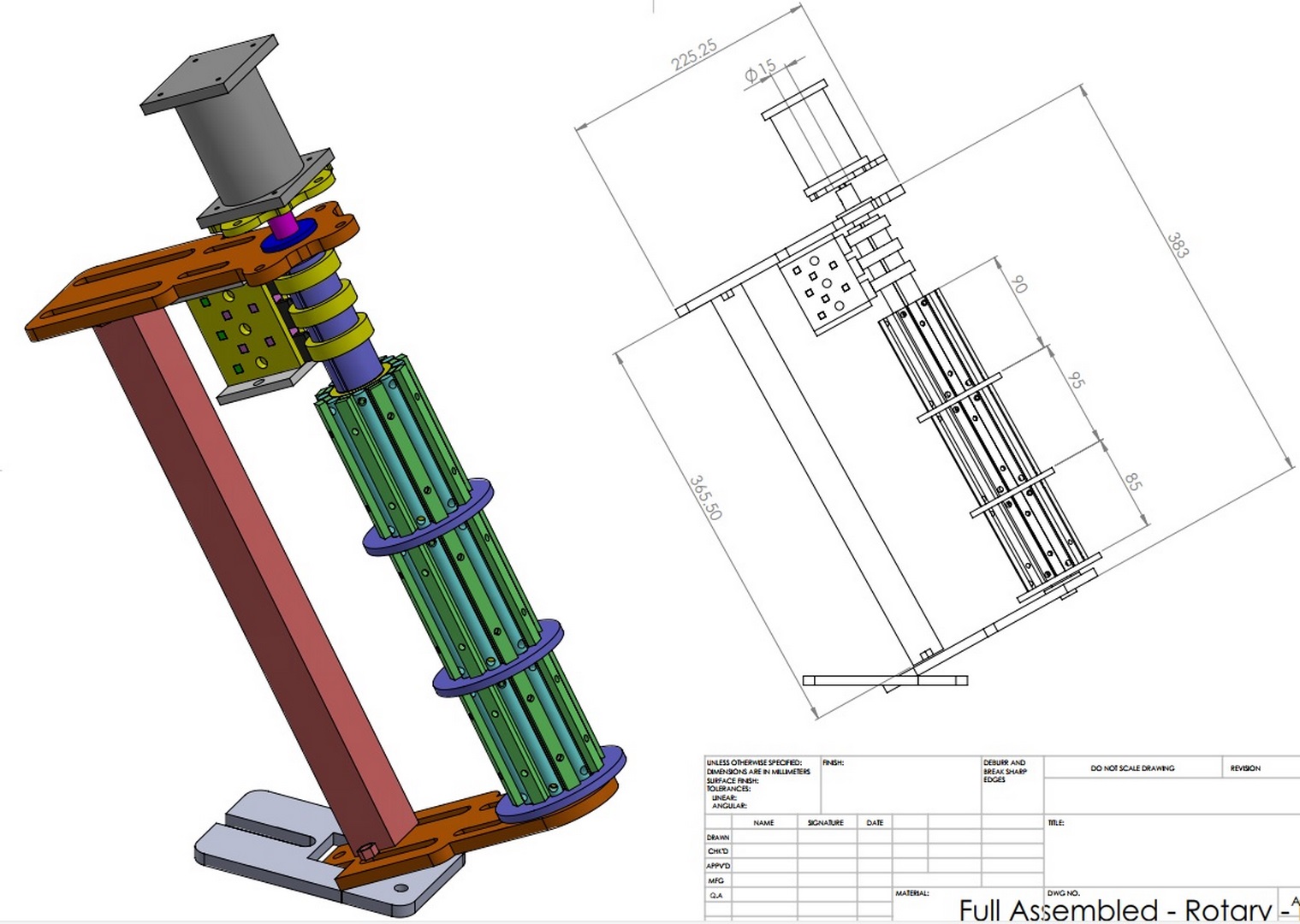

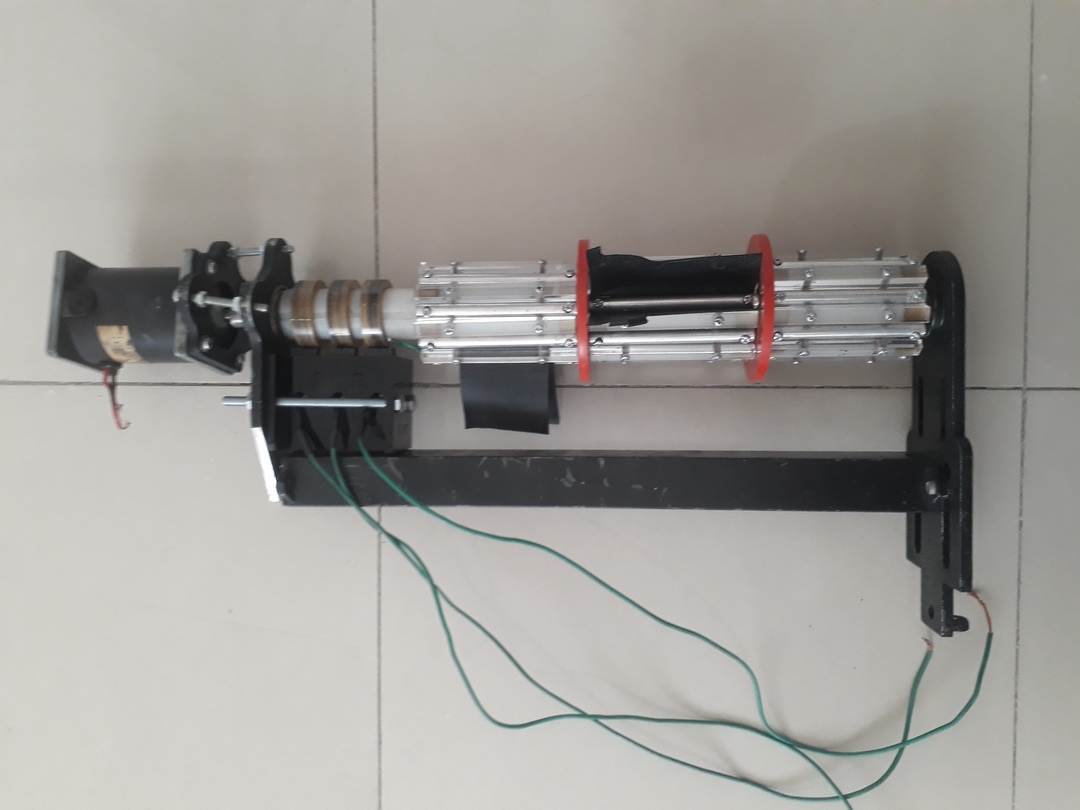

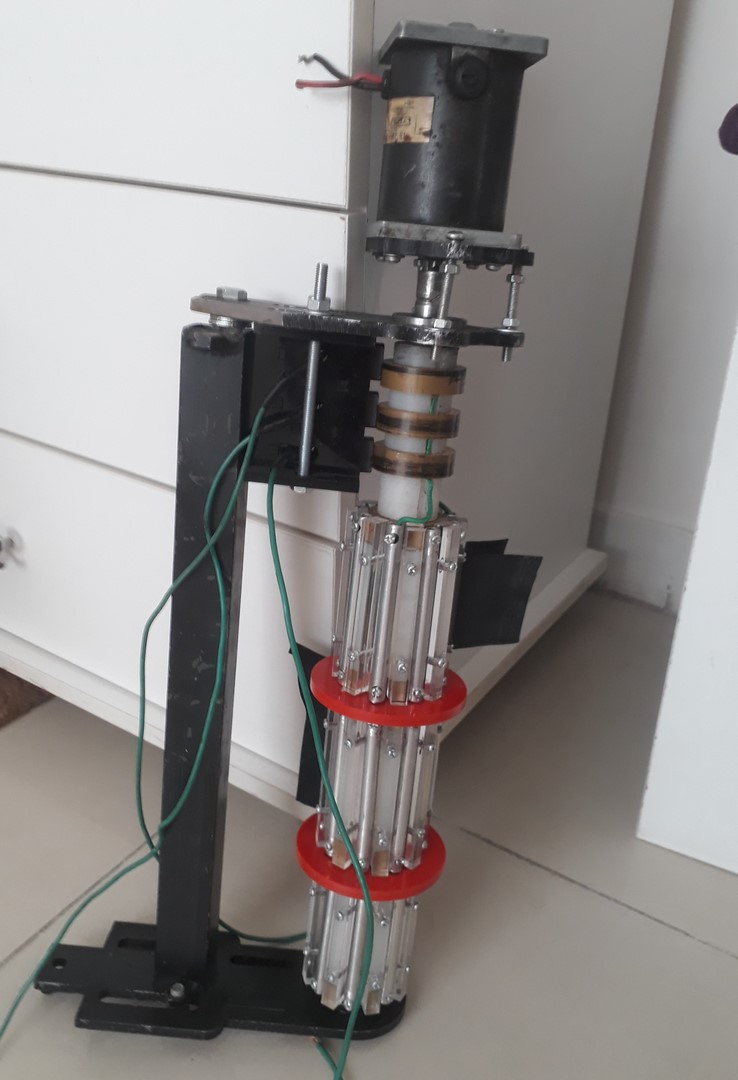

This mechanism is the first version developed for the electronic test (ET) of condoms. As part of the main project, a device was built that can test all types of condoms for thickness in three different voltage zones and reject condoms with holes.

This system was used in the research and development phase of the project to develop and manufacture condom testers.

My picture
My picture
My picture

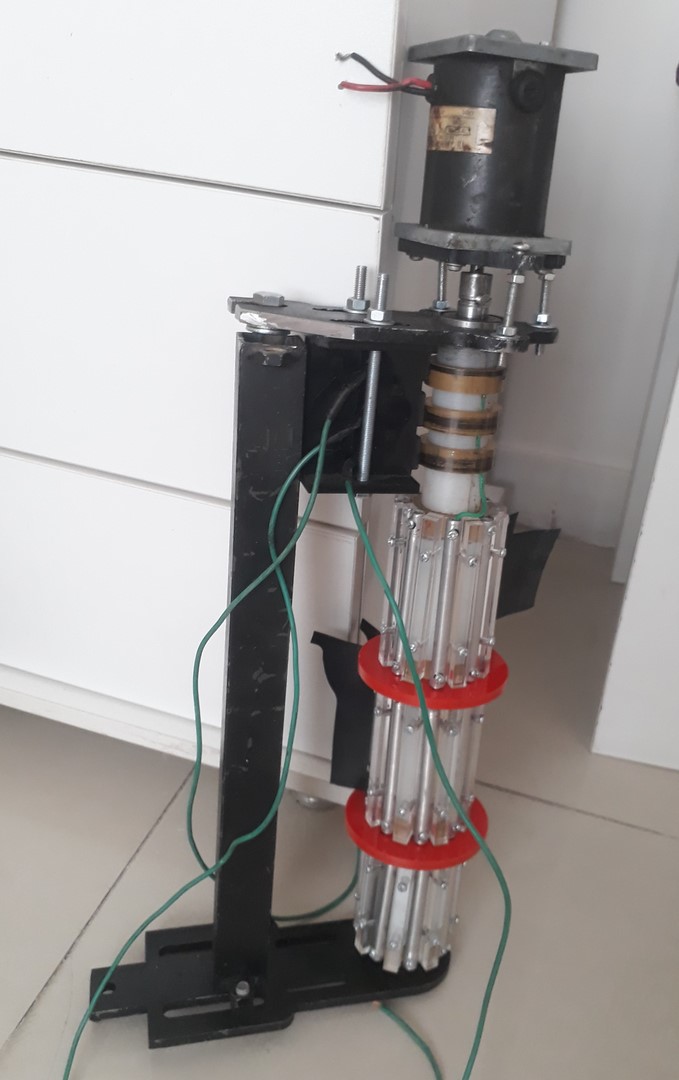

Various parts of this mechanism are shown in the video below. As the main project progressed, different parts of the mechanism were changed and new plans were implemented after the problems were solved.

Video-1
