This section presents the CAD design and CAE analyzes of the design and
construction project of a 2-seater nostalgic electric car.
This project was planned on the basis of a customer's request to start a
production line for nostalgic electric cars. First, a prototype of this type of
car was designed and built and initial tests were carried out. Then the
manufactured sample was tested and evaluated. After the successful results of
the tests, this project entered the semi-industrial phase.
Due to its large scope, this project is divided into the following main
sections:
- Chassis
- Suspension and motion control system
- Body
- The electrical part of the vehicle
includes
electric motor, batteries, driver and...
- Cab equipment and accessories
- Automotive electronics section
Each part of this project has many details. In the design phase of the project,
the designs were created in such a way that the various parts could be produced
using the existing production facilities.

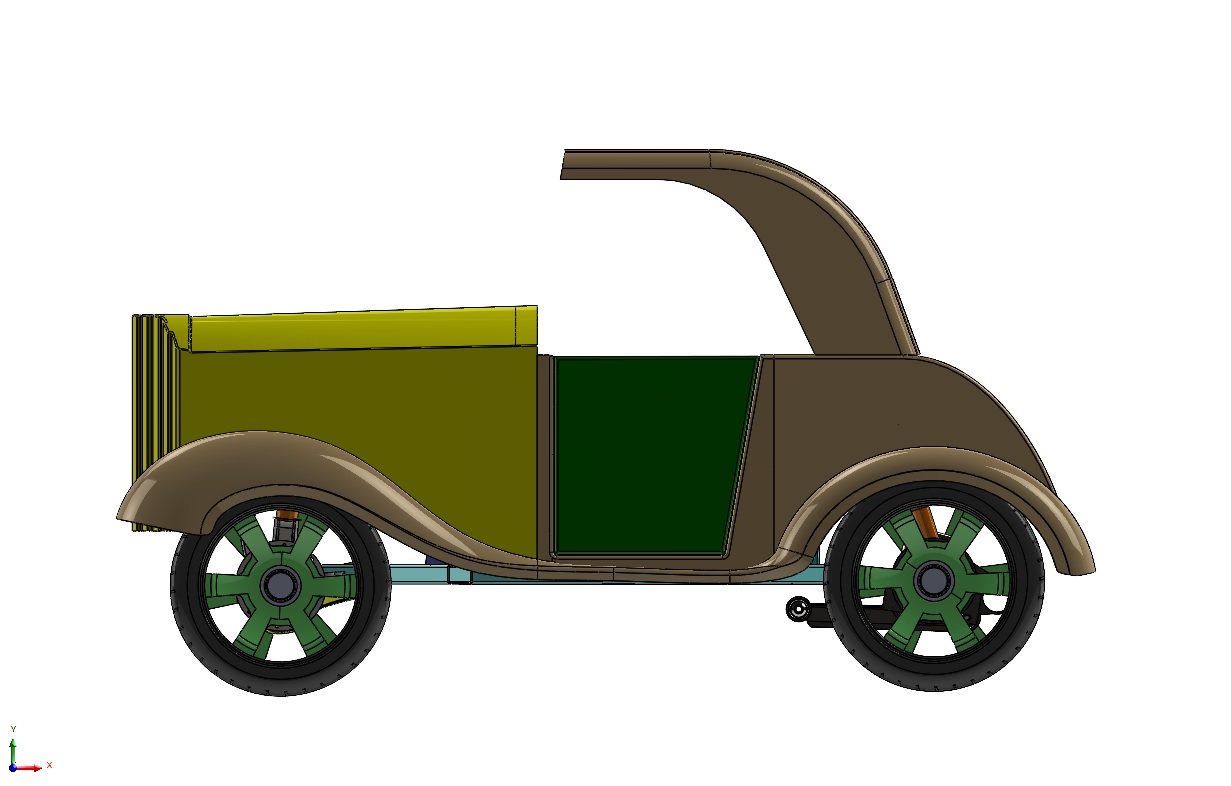

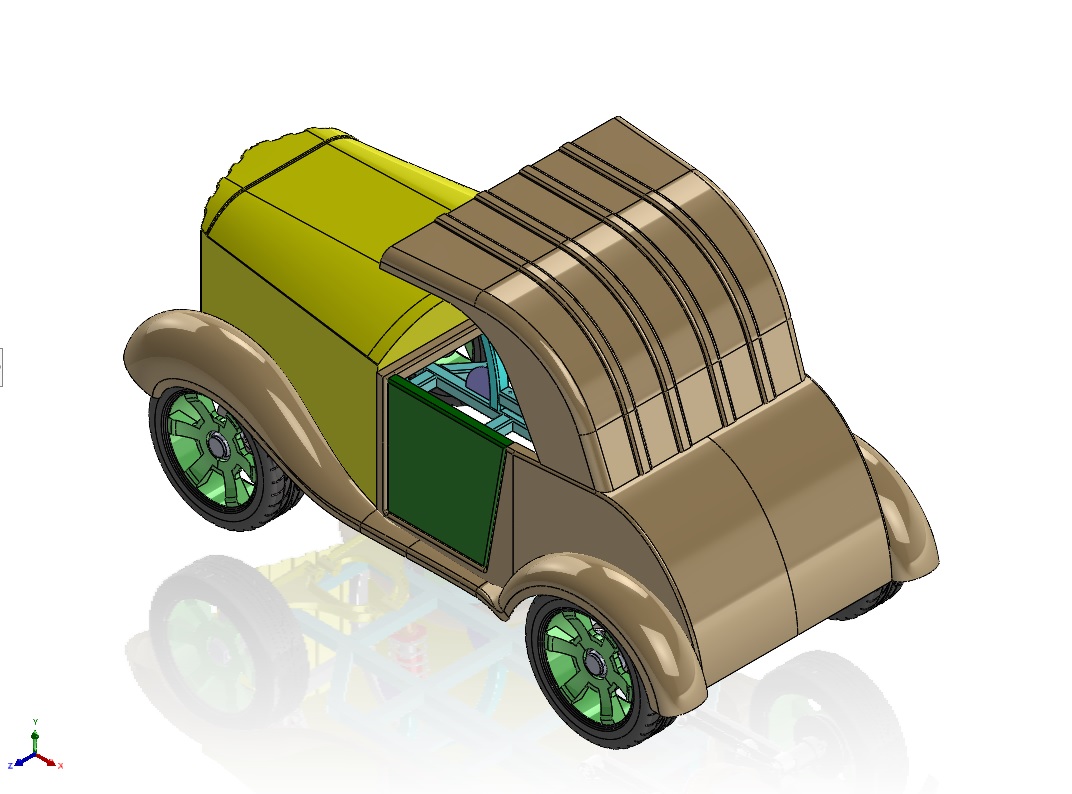

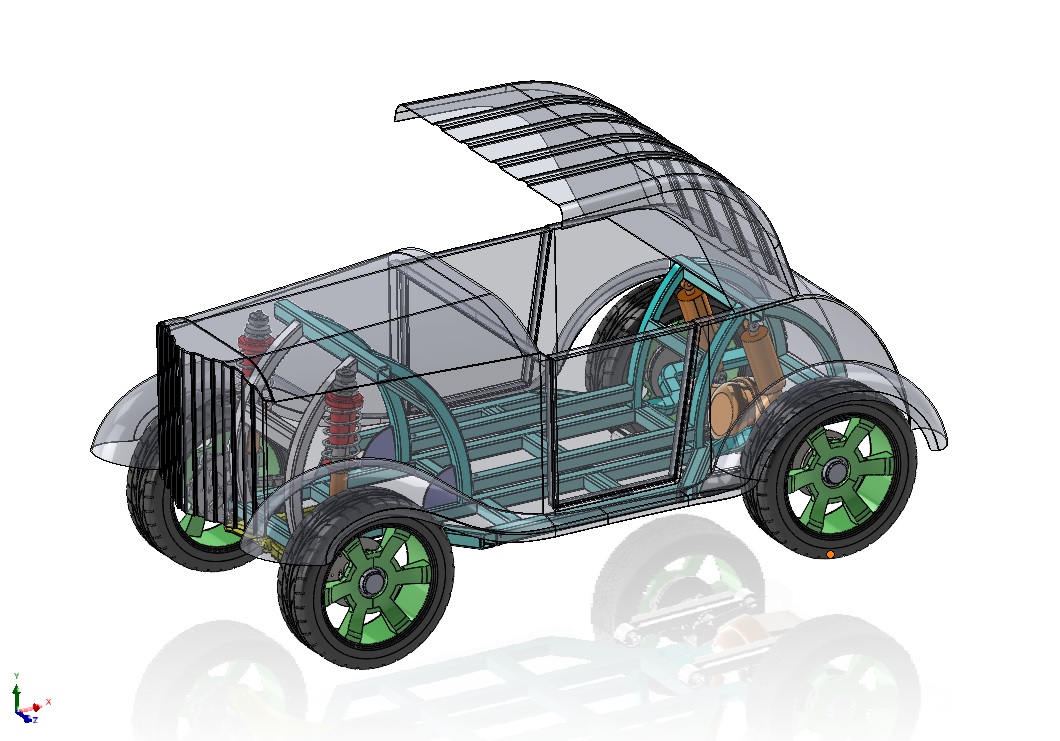

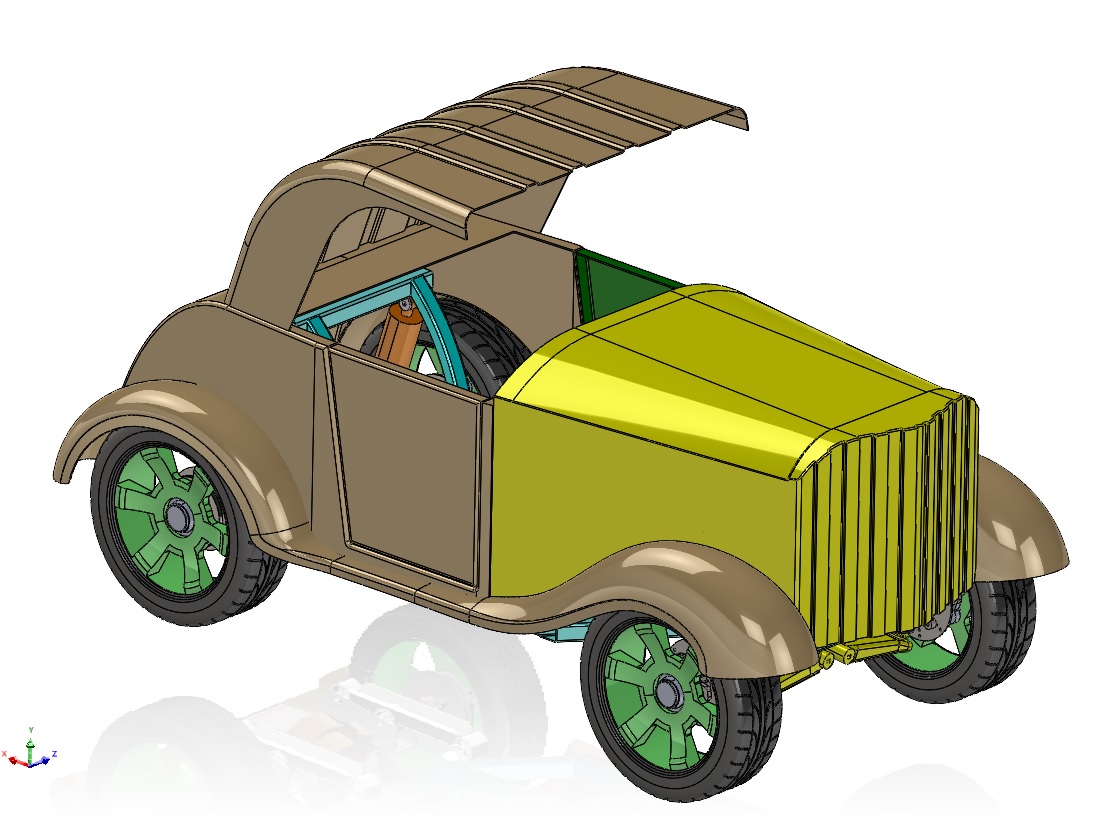

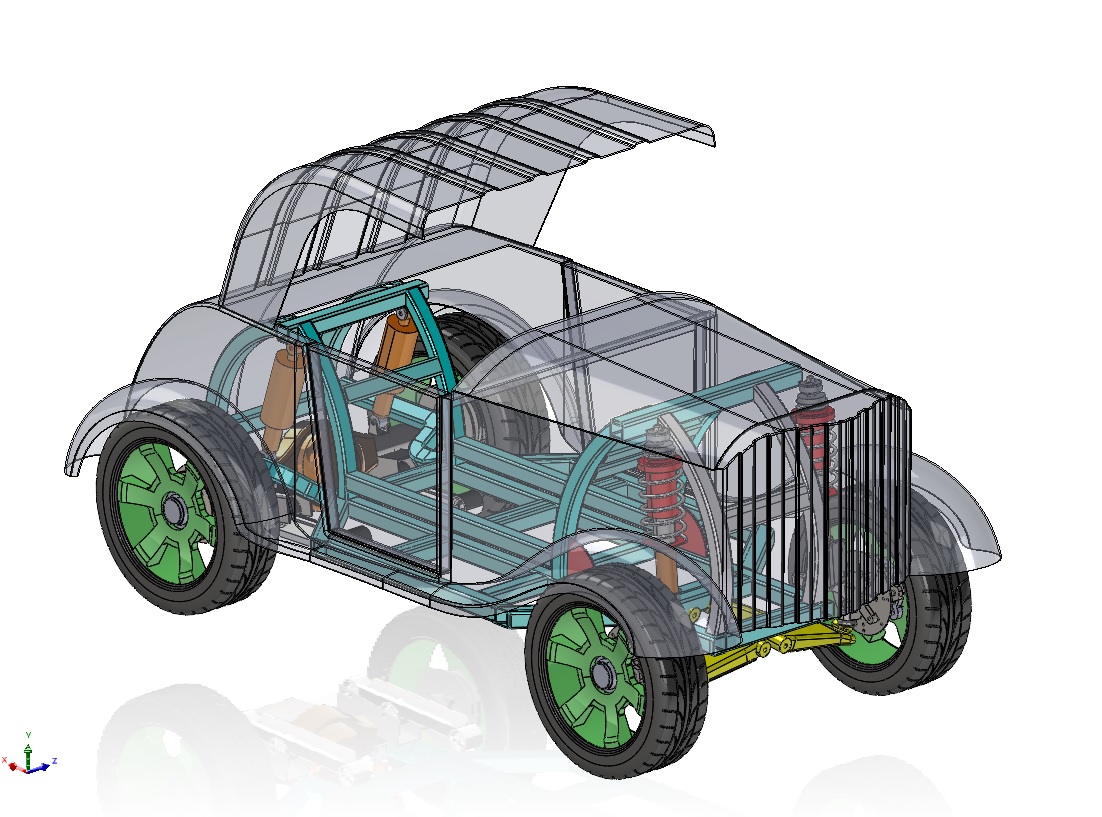

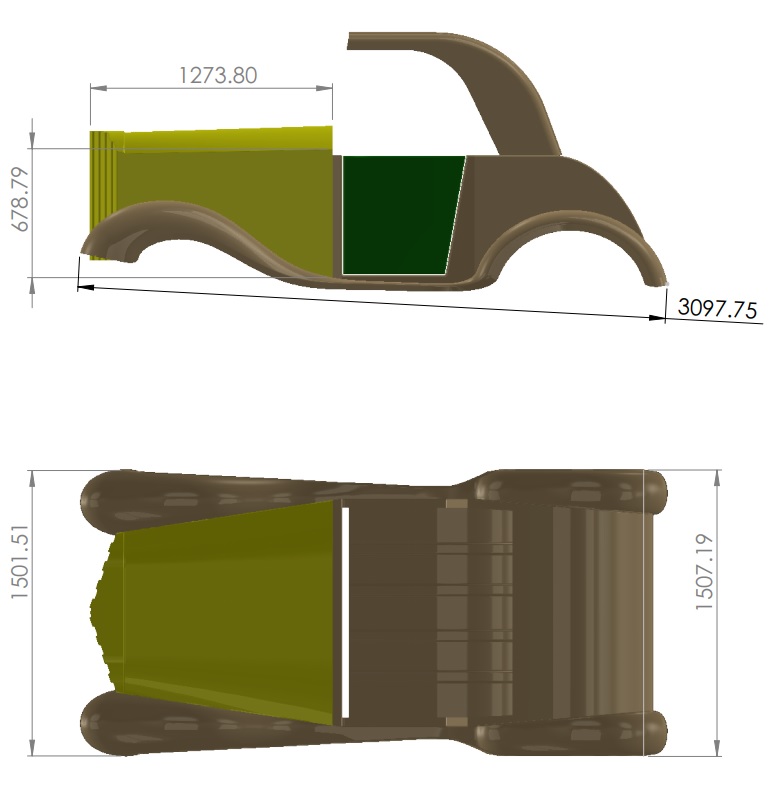

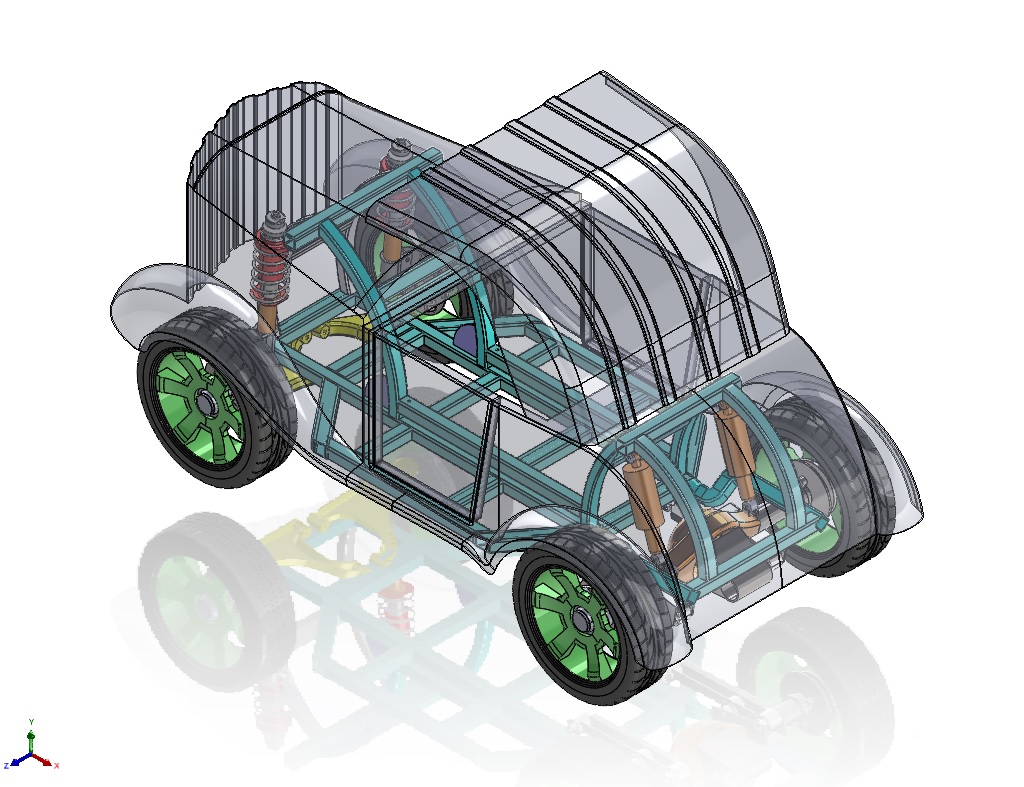

Below you can see various photos of the designs that were created in connection
with this project.

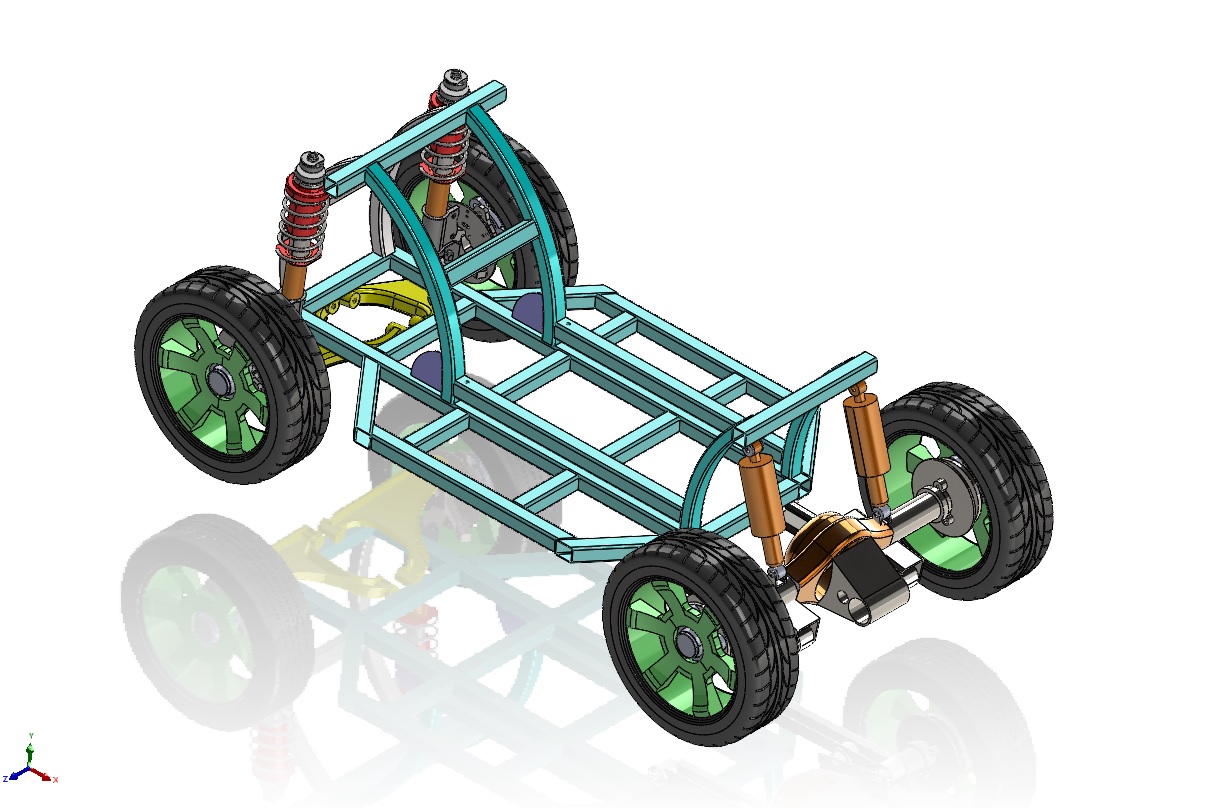

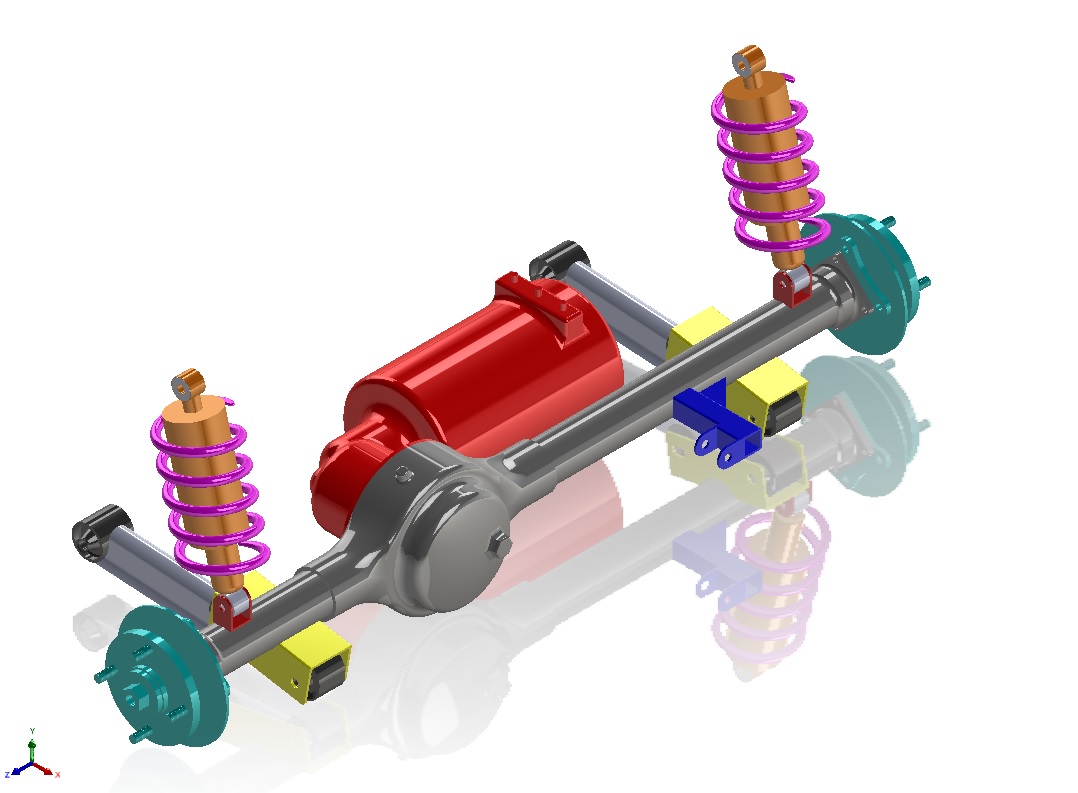

The illustration below shows a view of the rear part of the vehicle, where the
electric motor and the differential as well as the vehicle's suspension are
located.

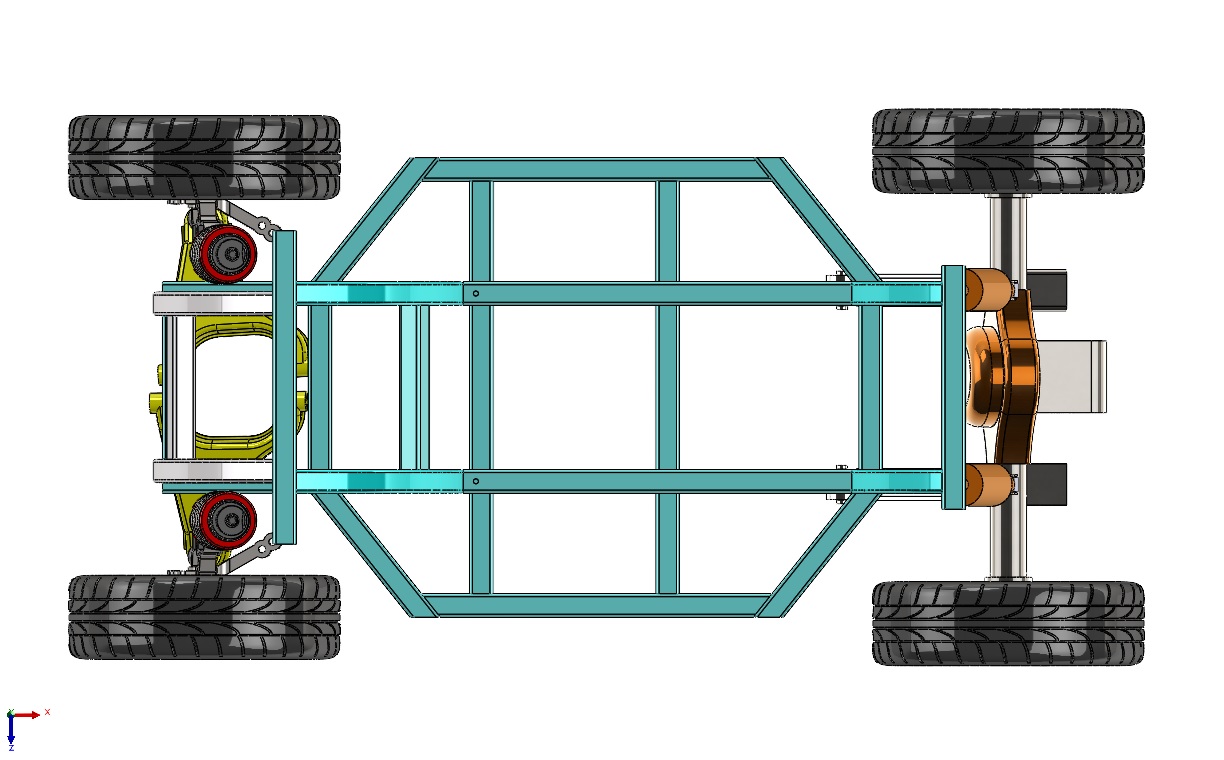

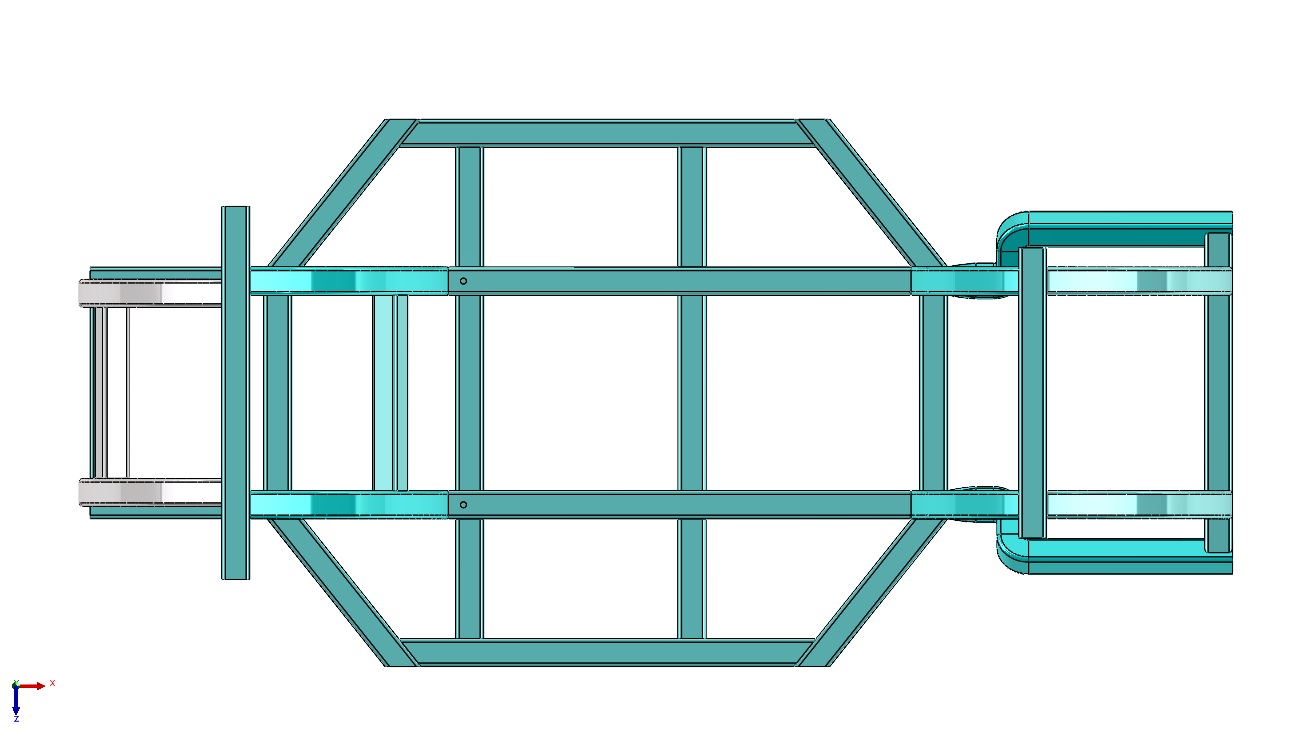

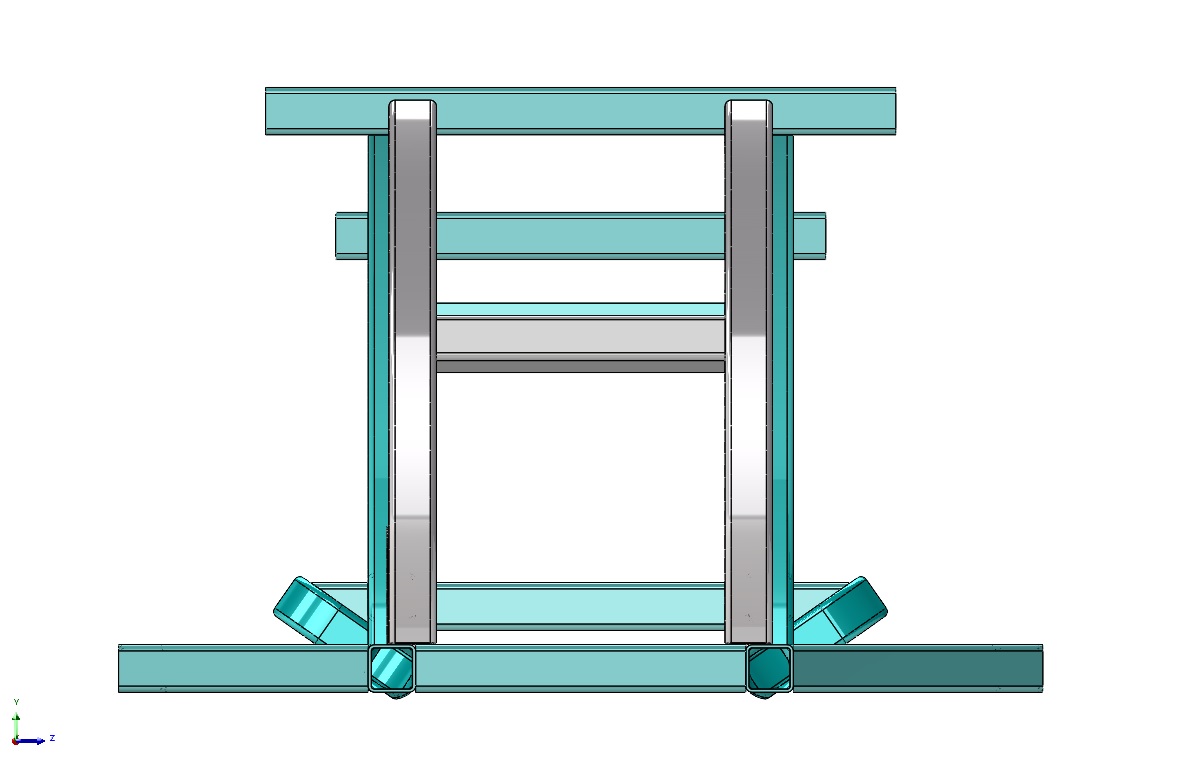

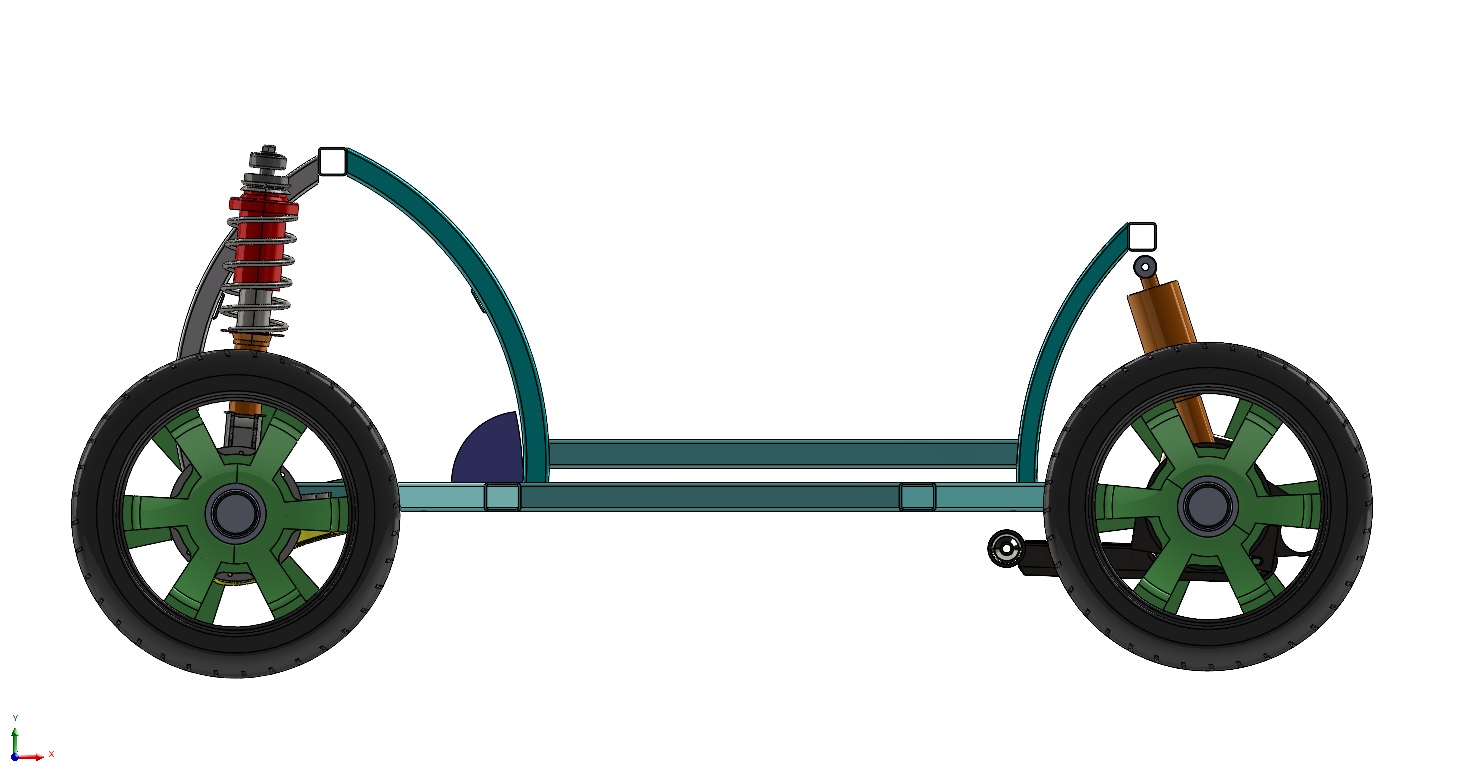

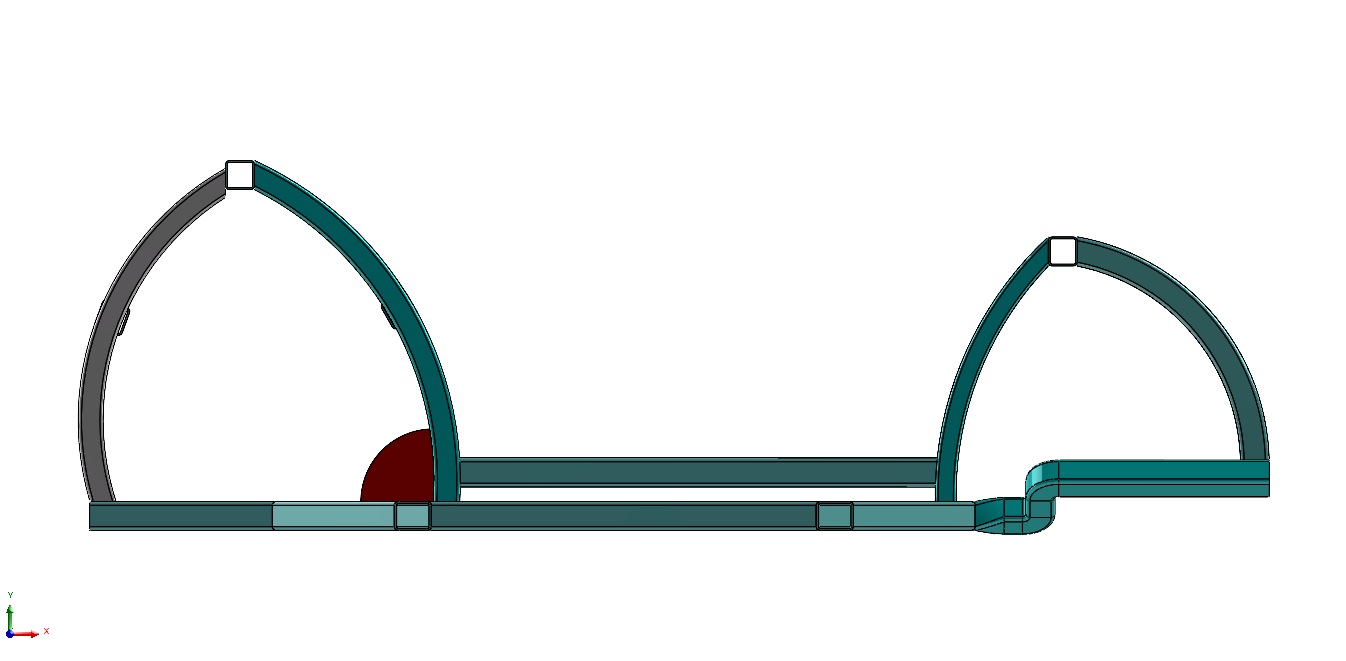

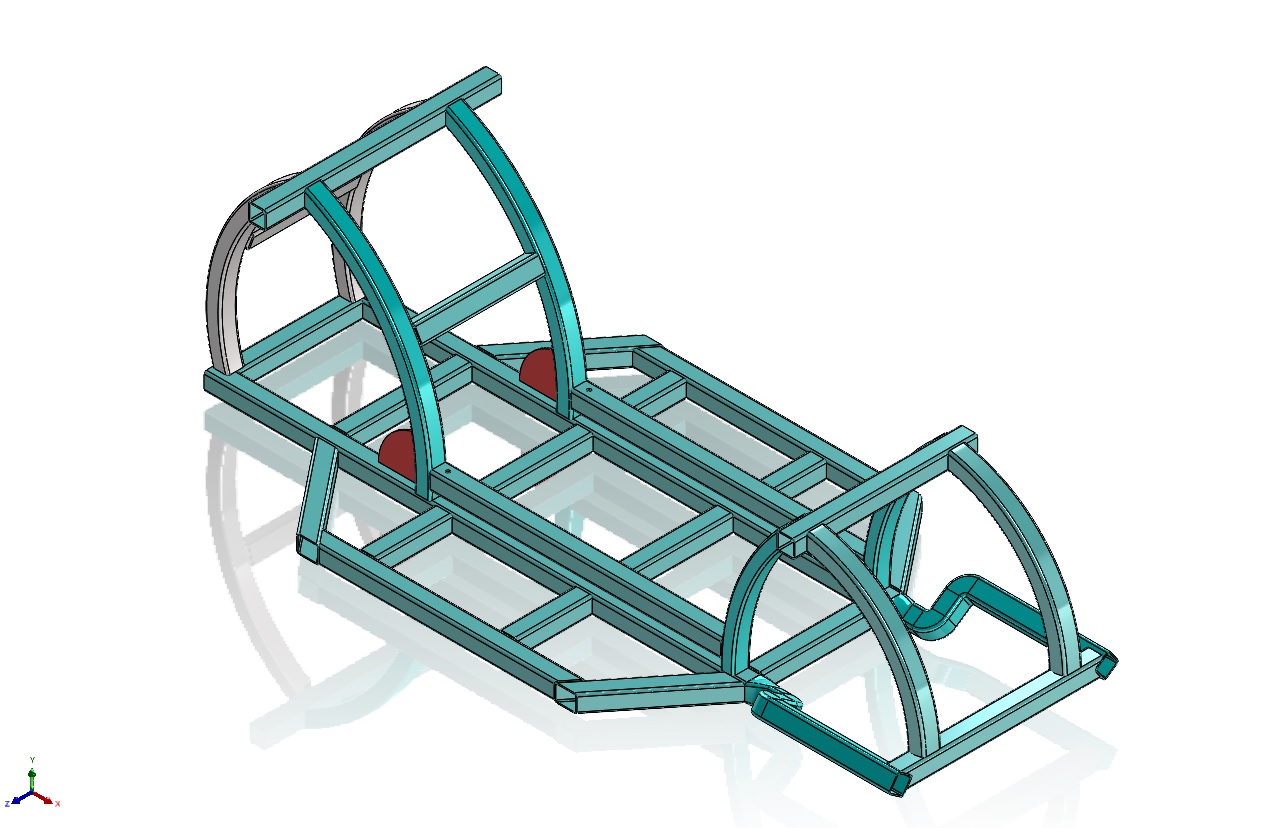

Below you can see photos of the chassis of this electric car.

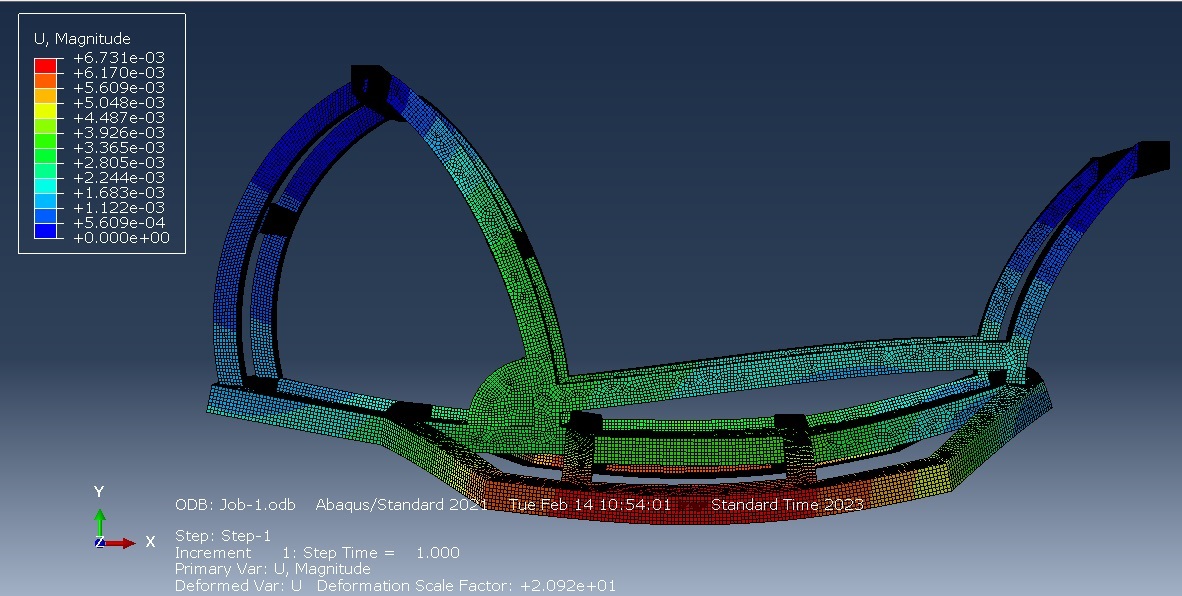

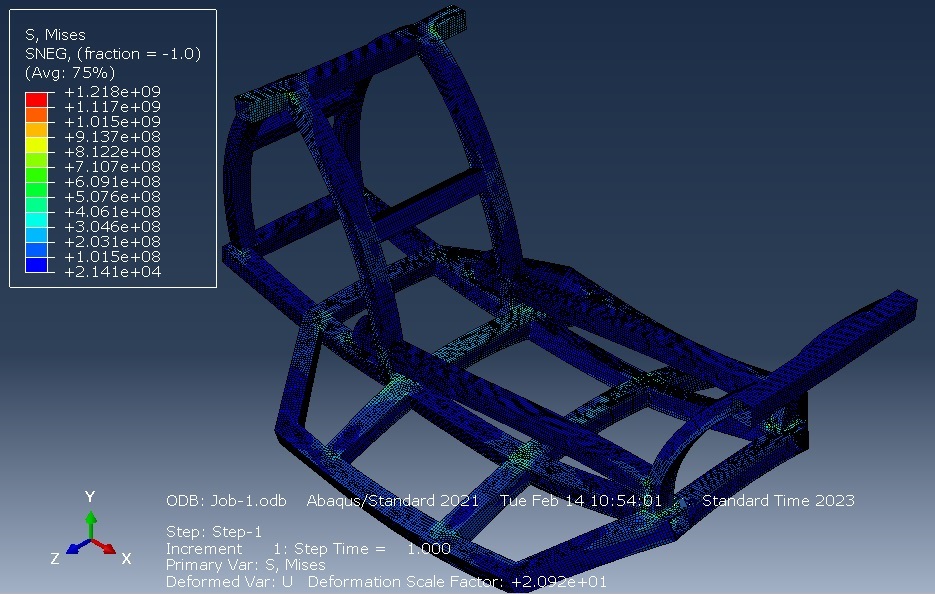

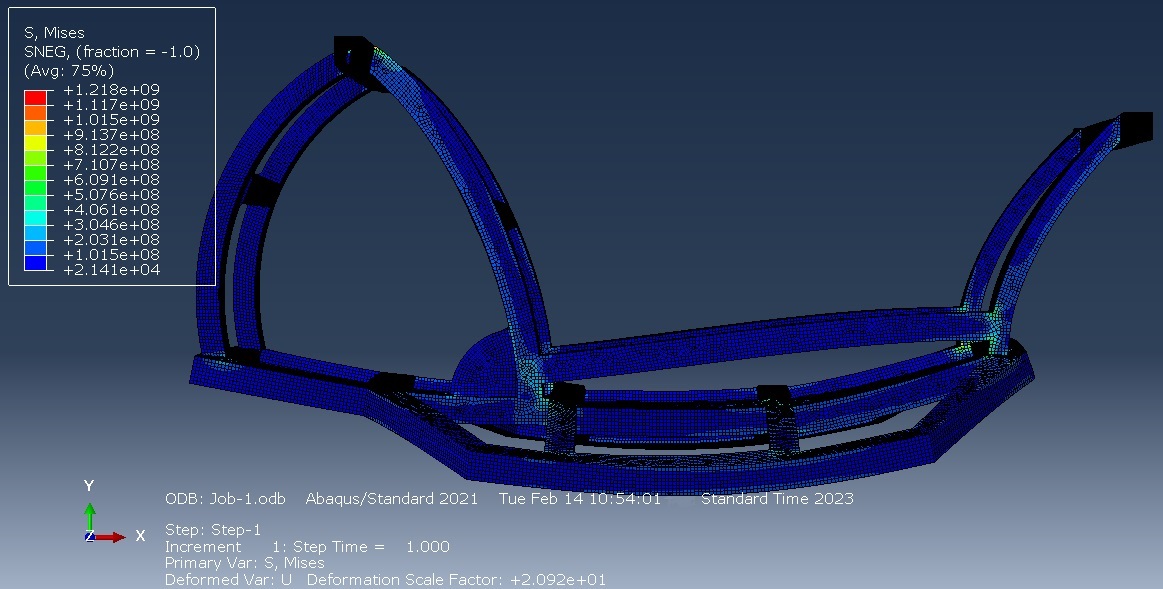

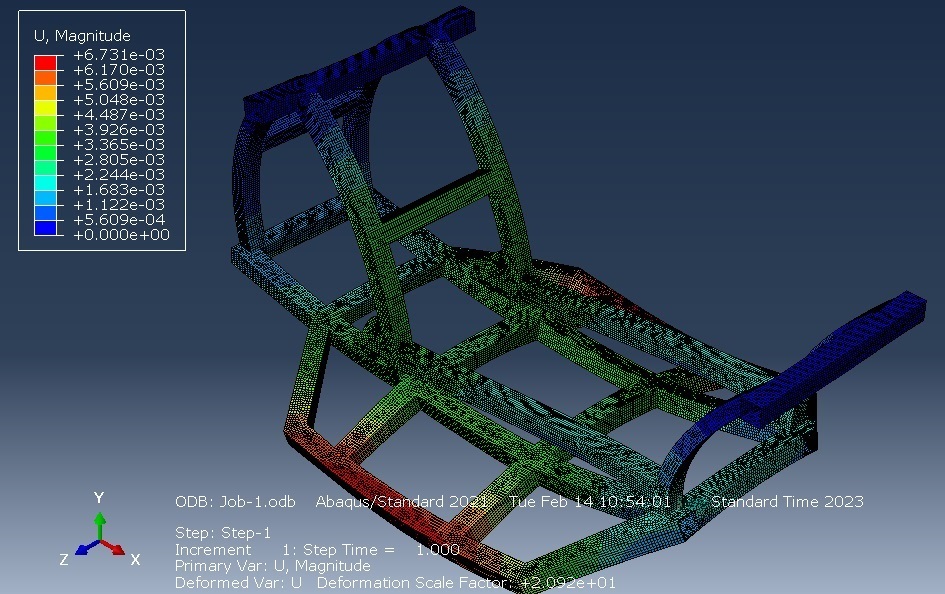

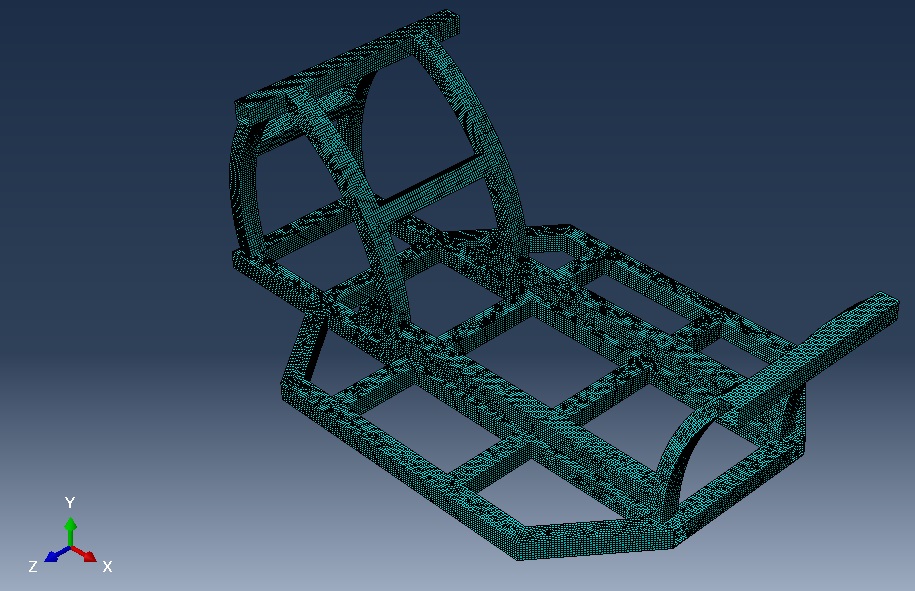

Various CAE analyzes were carried out to check the strength of the chassis. Based on
the results of the analysis, the weight and size of the profiles used in the chassis
were optimized. This section presents some of the results of the CAE analyzes for
this project.
The design of this project is presented in more detail in the following animations.
