Design and construction of a nostalgic 4-seater electric car

Project Details

My picture

This project was planned on the basis of a customer's request to start a production line for nostalgic electric cars. First, a prototype of this type of car was designed and built and initial tests were carried out. Then the manufactured sample was tested and evaluated. After the successful results of the tests, this project entered the semi-industrial phase.

Due to its large scope, this project is divided into the following main sections:

- Chassis

- Suspension and motion control system

- Body

- The electrical part of the vehicle includes electric motor, batteries, driver and...

- Cab equipment and accessories

- Automotive electronics section

Each part of this project has many details. In the design phase of the project, the designs were created in such a way that the various parts could be produced using the existing production facilities.

My picture
My picture
My picture
My picture

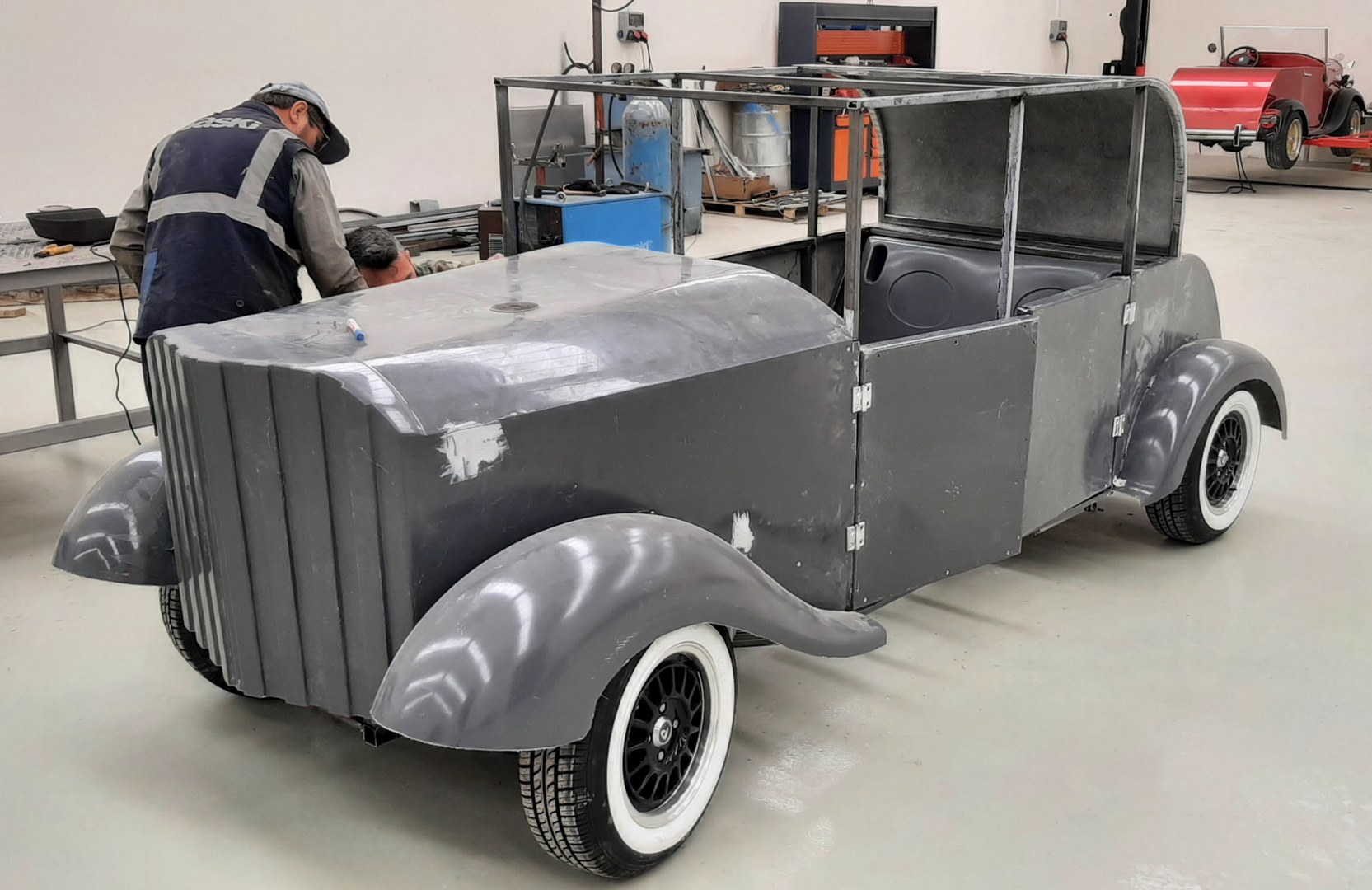

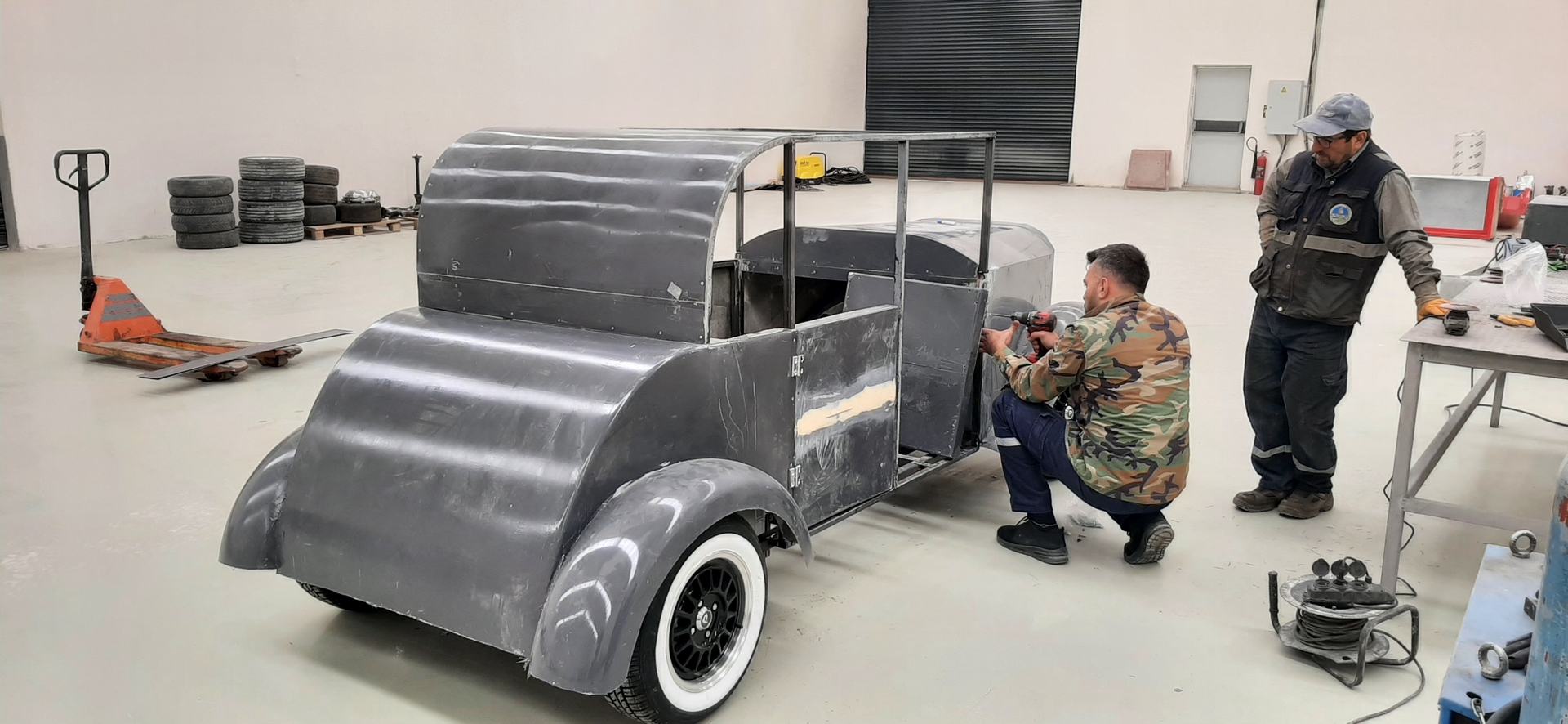

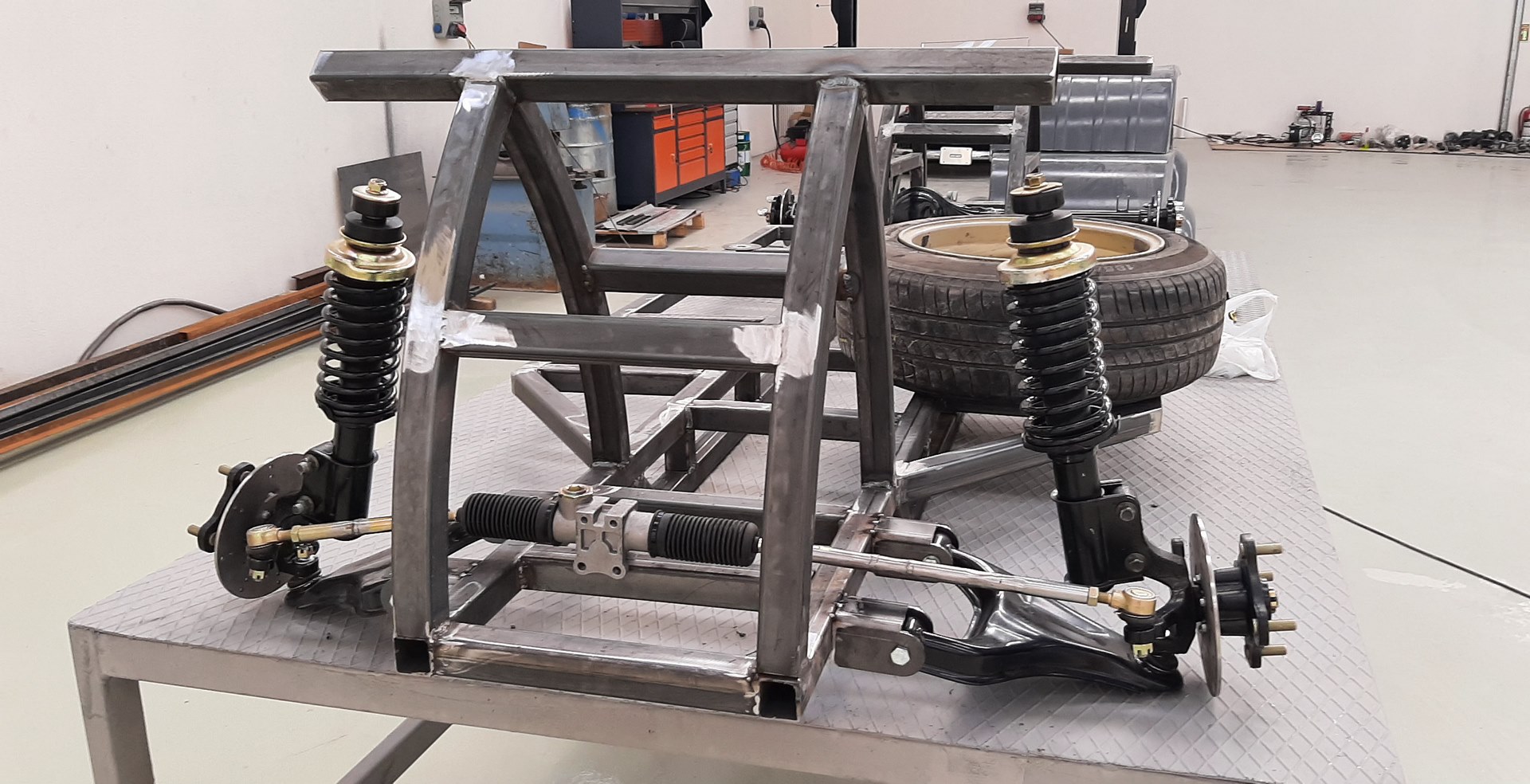

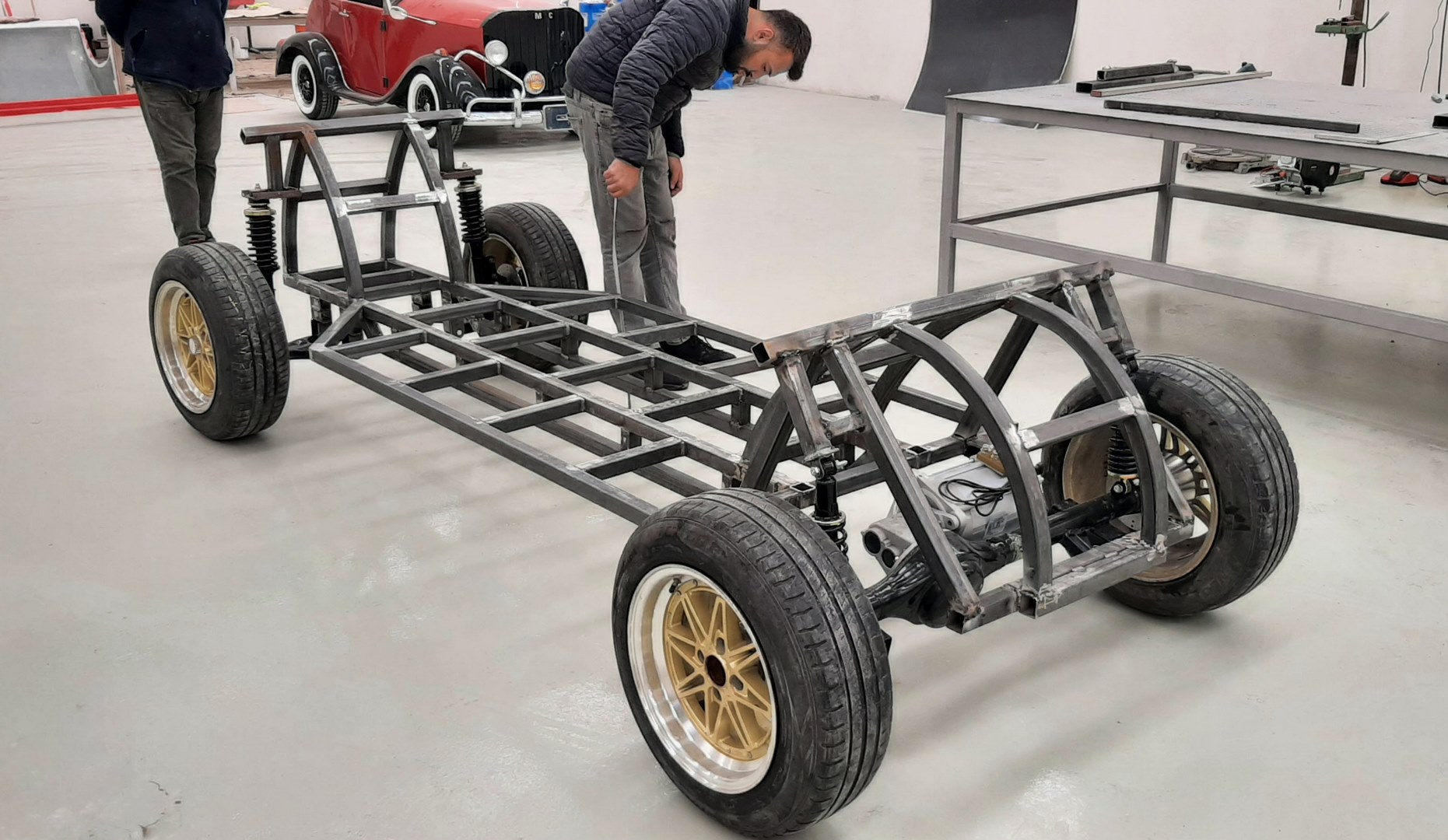

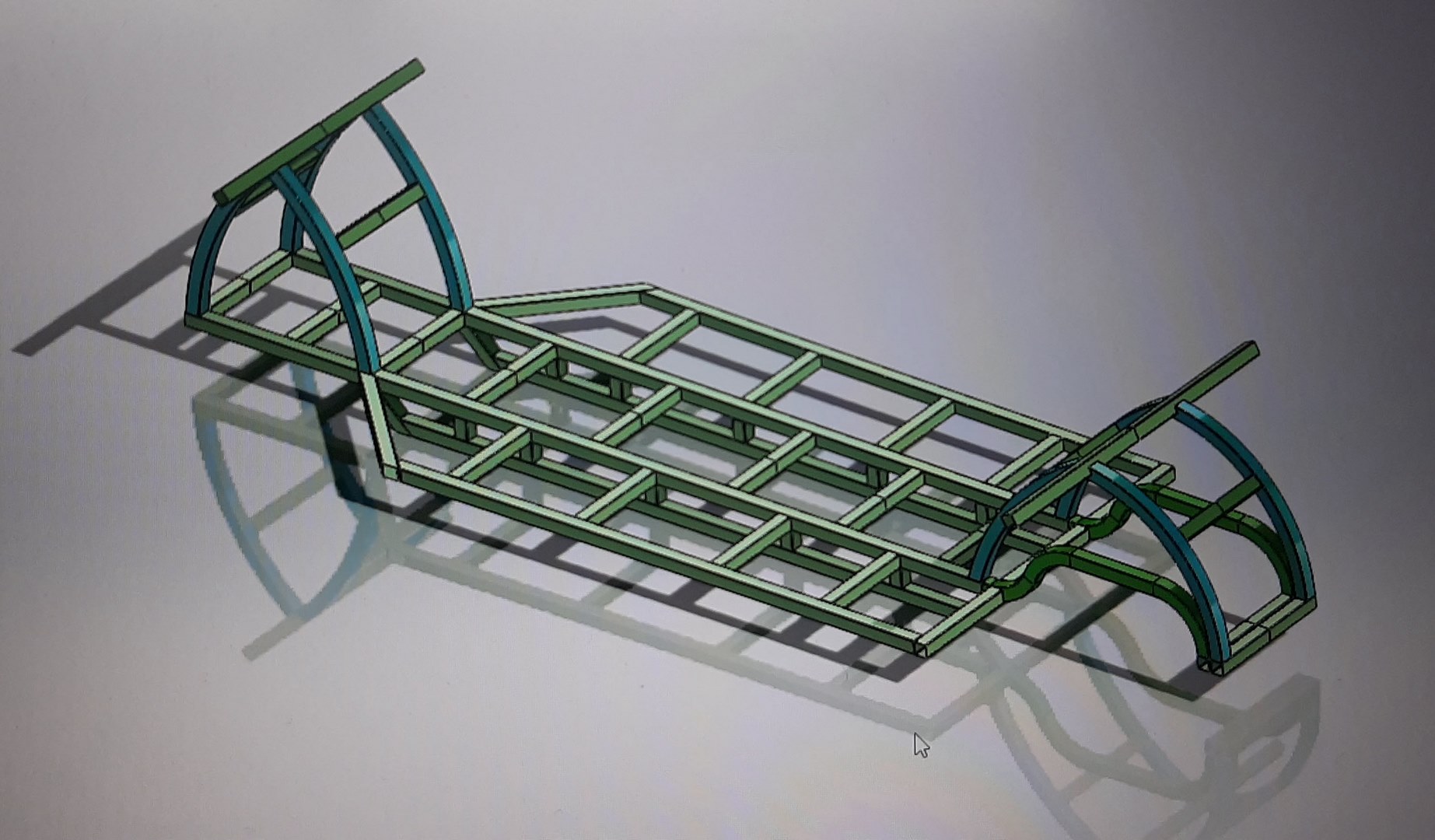

In the following pictures you can see photos related to the construction of this car. The chassis that was built for this project is lightweight, yet strong and durable enough to withstand static and dynamic loads. In the electric vehicle industry, the final weight of the vehicle has a major impact on the durability of the vehicle batteries.

My picture
My picture
My picture
My picture
My picture
Download Summary

Some Cool Title

The main scope of the project was to set up a production line for nostalgic 2 and 4-seater electric cars. In order to reduce costs and shorten the construction time, the prototype's body parts are made of fiberglass composites. This type of composite part is not only strong and durable, but also lightweight.

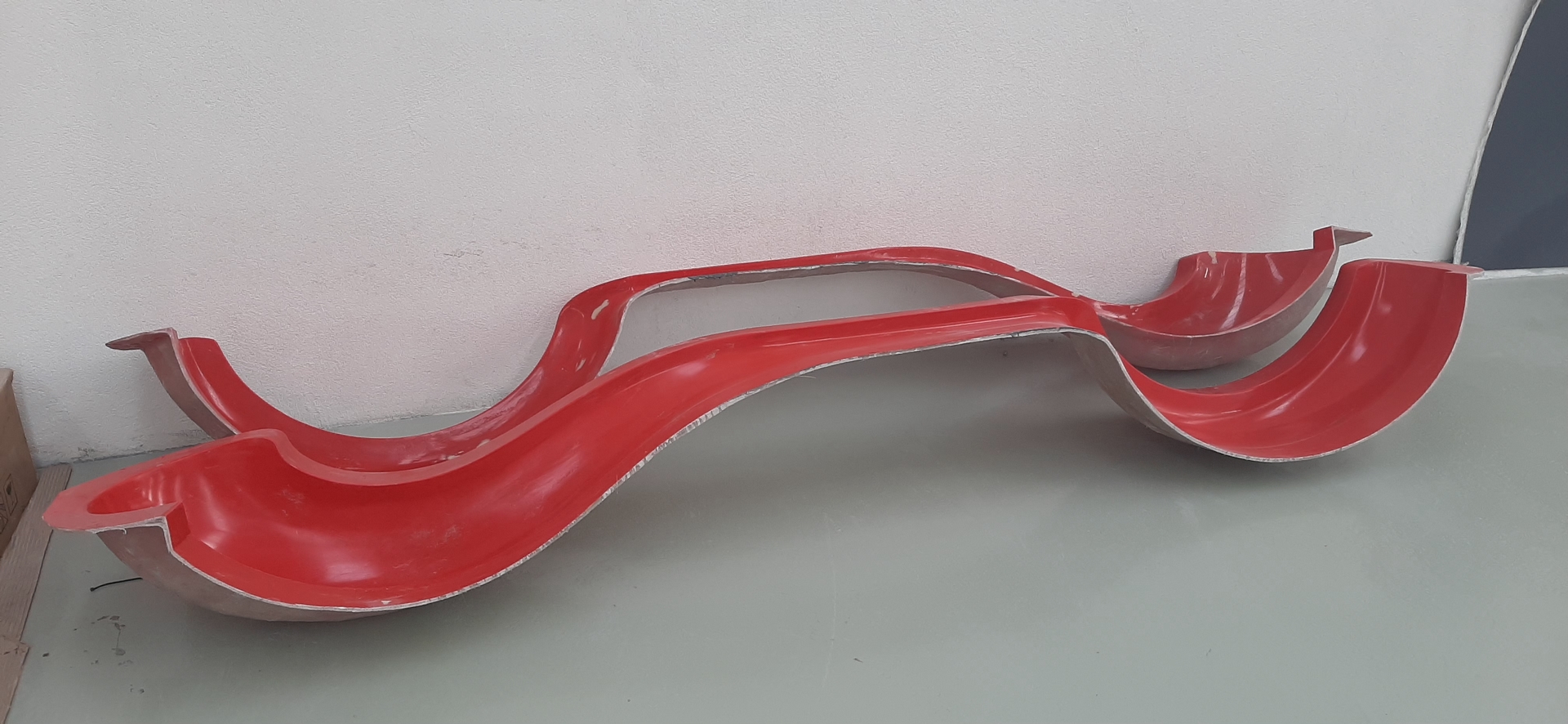

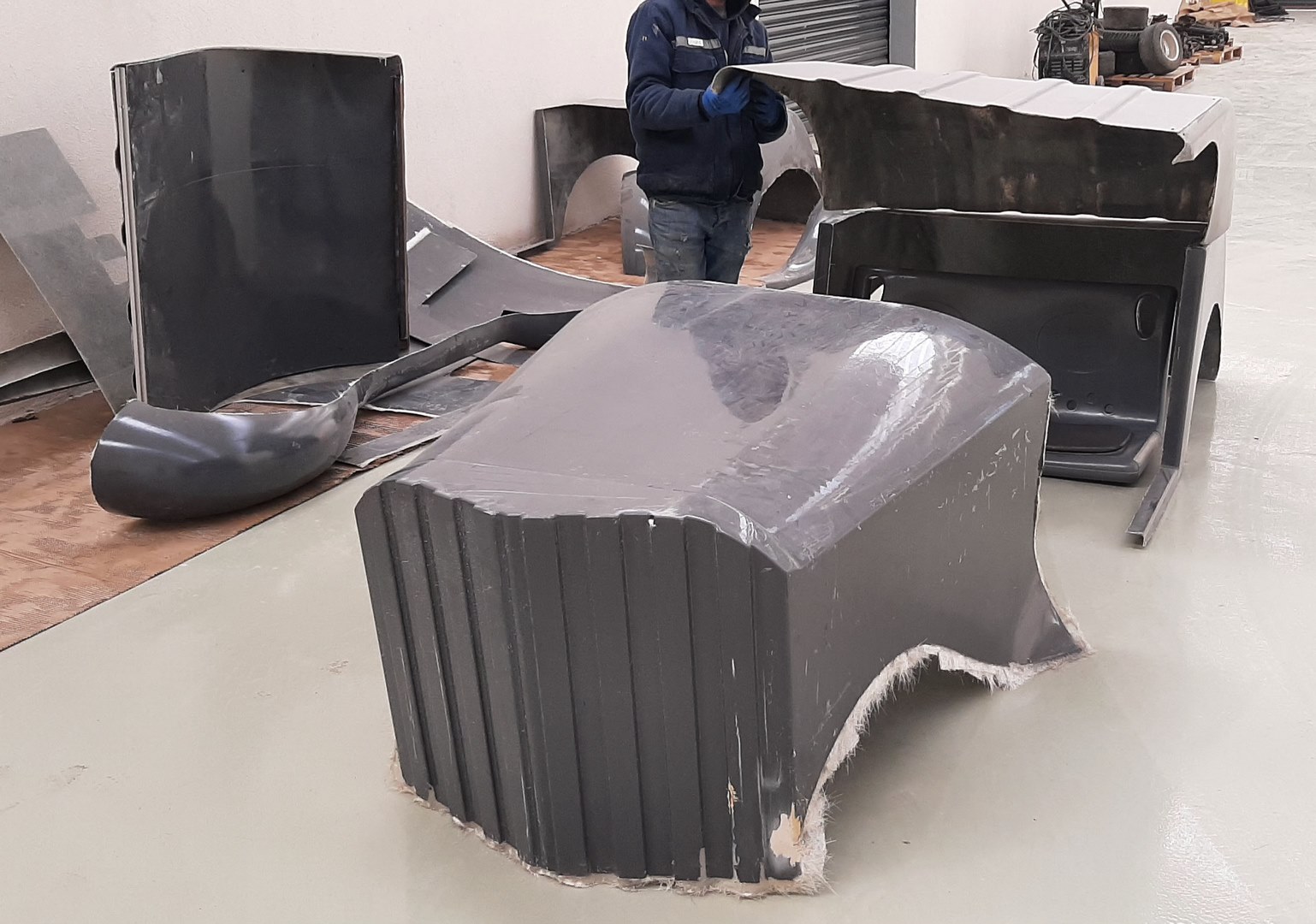

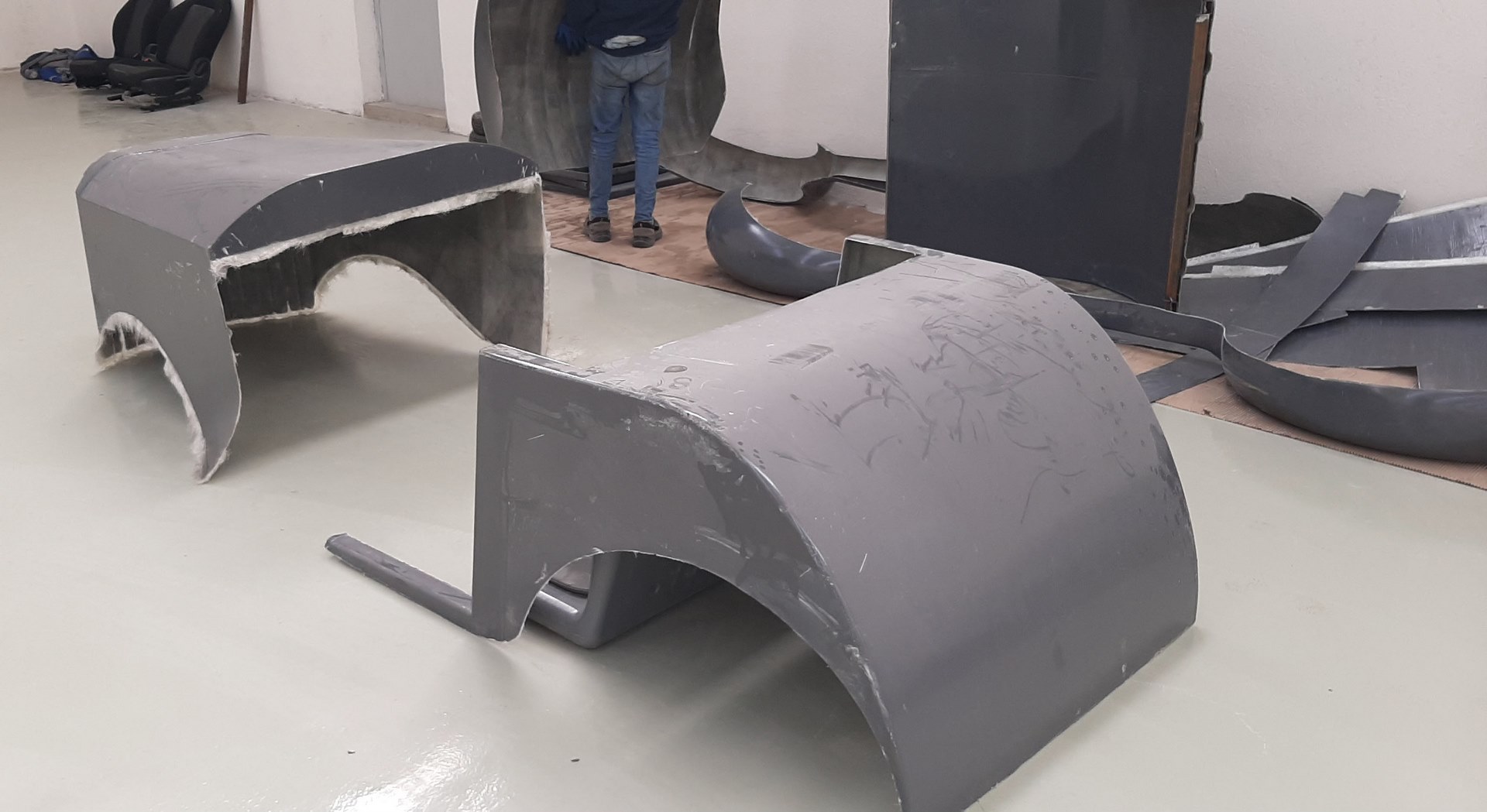

The following illustrations show the molds and the fiberglass parts produced using the composite method.

My picture
My picture

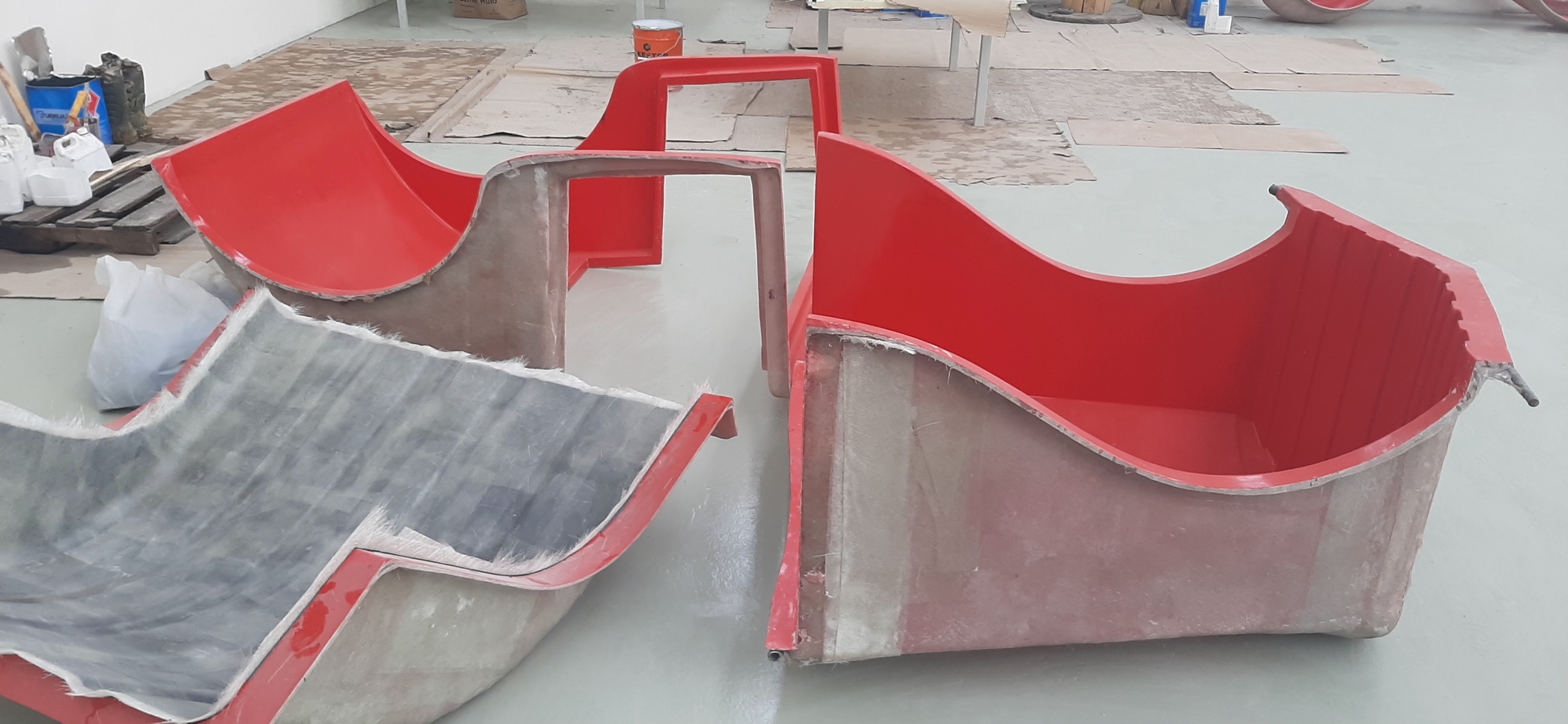

In the following illustrations you can see the molds that were made for the production of the fiberglass parts of this car.

My picture
My picture

In the videos below you can see different views of this car and how it performs on the road.
