This control unit is used in the test device for condoms. In this device there are many mechanical, electromechanical and pneumatic systems that must harmonize with each other. In condom manufacturing factories, it is necessary to test condoms for the absence of holes after initial production. This test is carried out with an electronic testing device or ET. The basis of this device is to create a high-voltage circuit. If the condom has a hole, a short circuit occurs in the circuit and the device rejects the condom.

This control unit sends the information and results of the operation of the device in a transient form to the central processor, which is a computer, moment by moment and applies the execution commands after receiving them from the central processor.

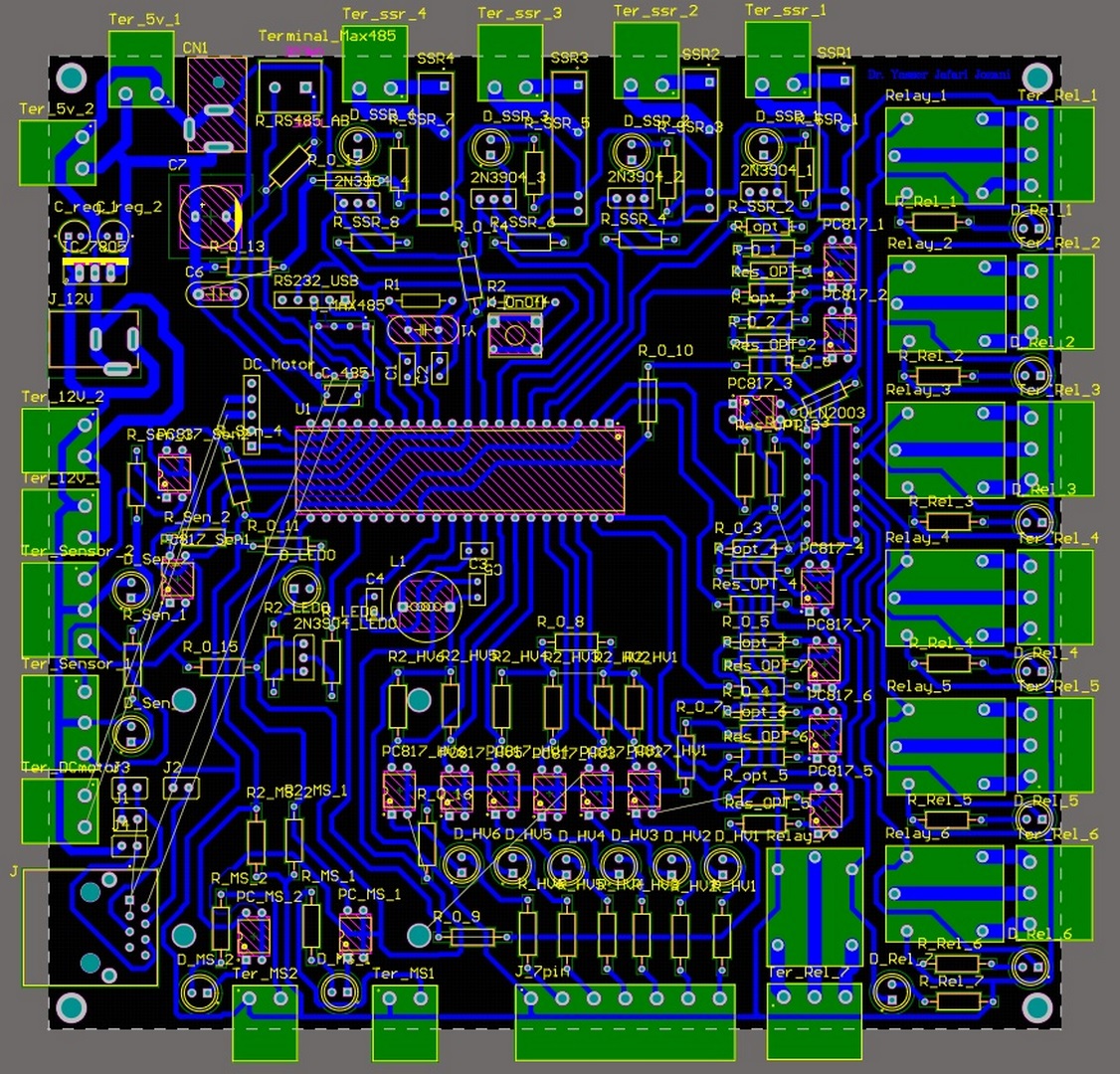

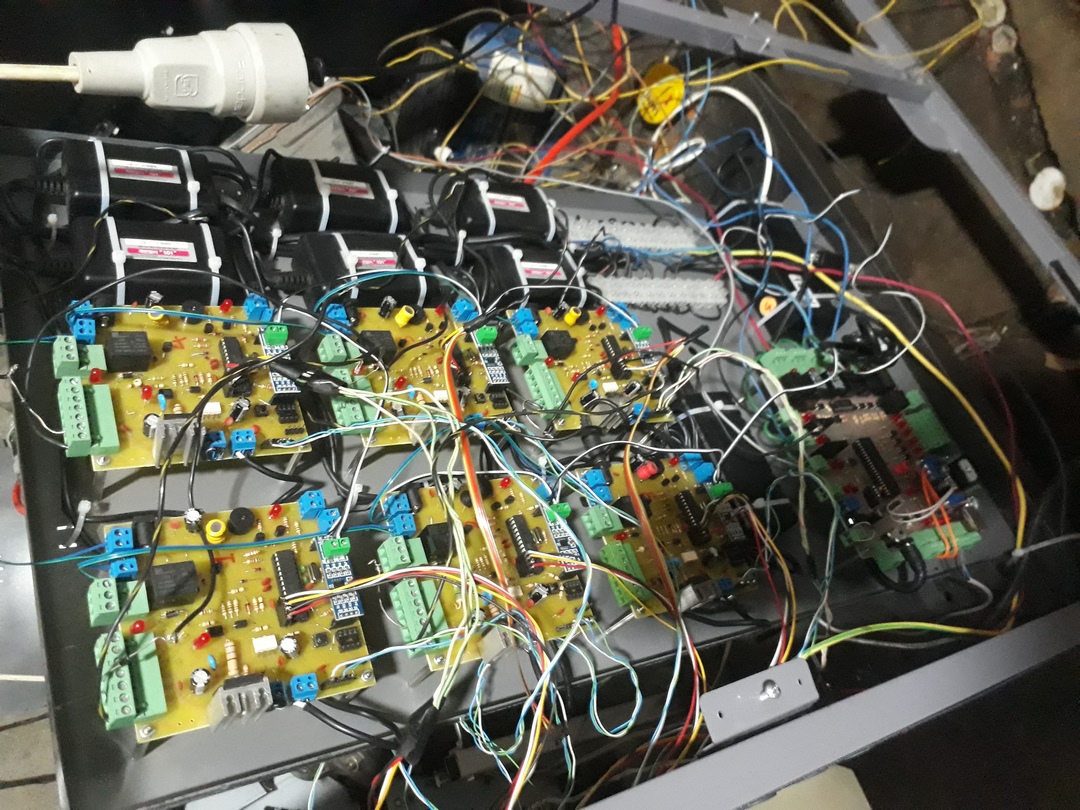

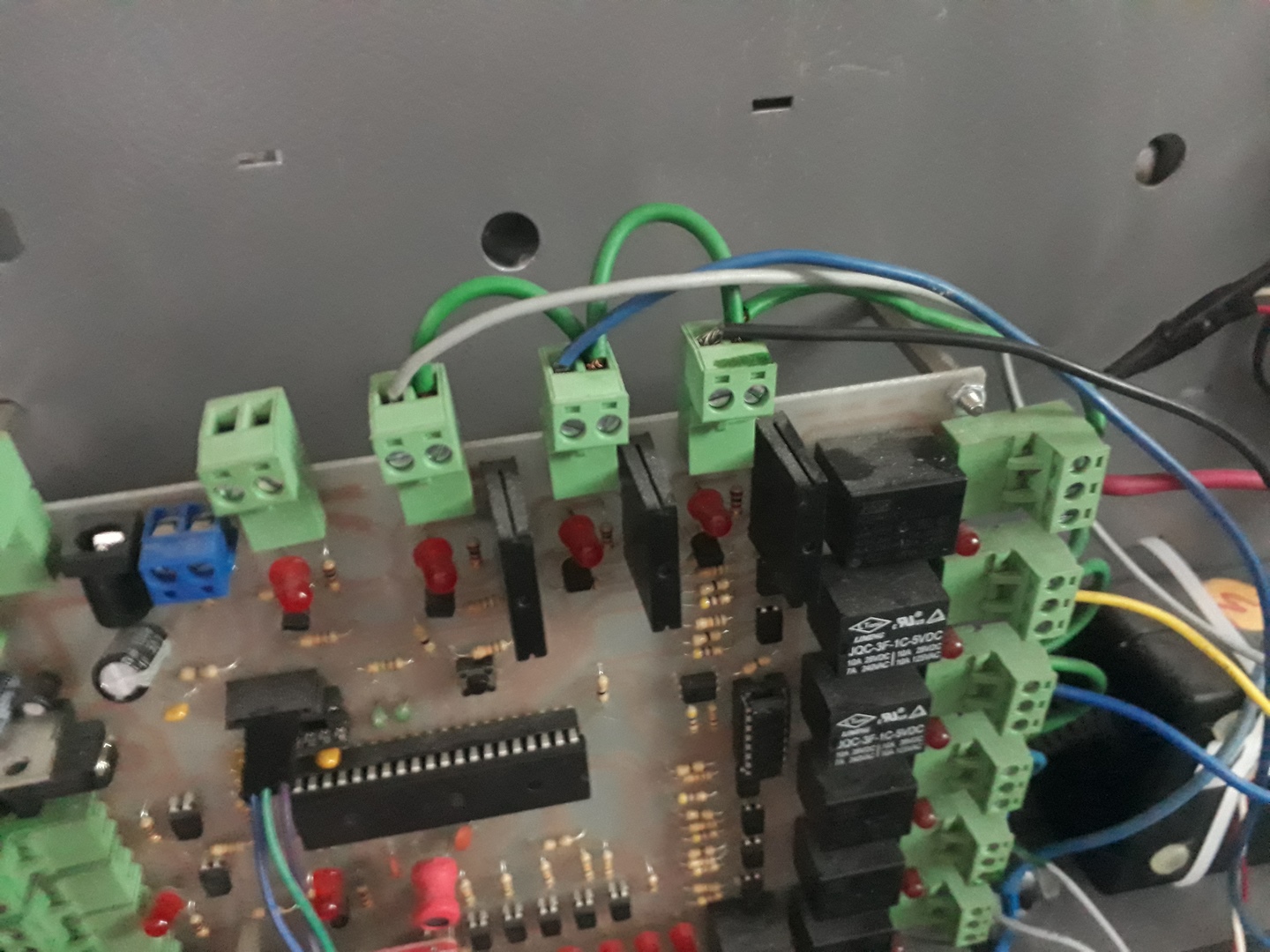

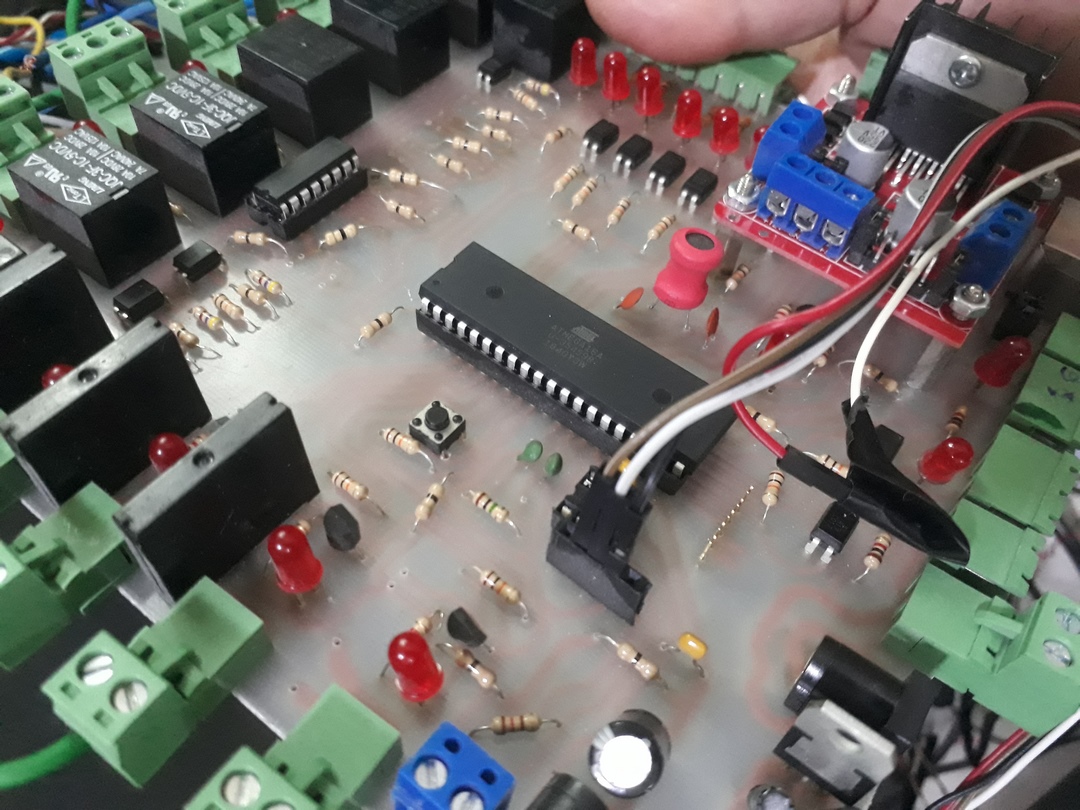

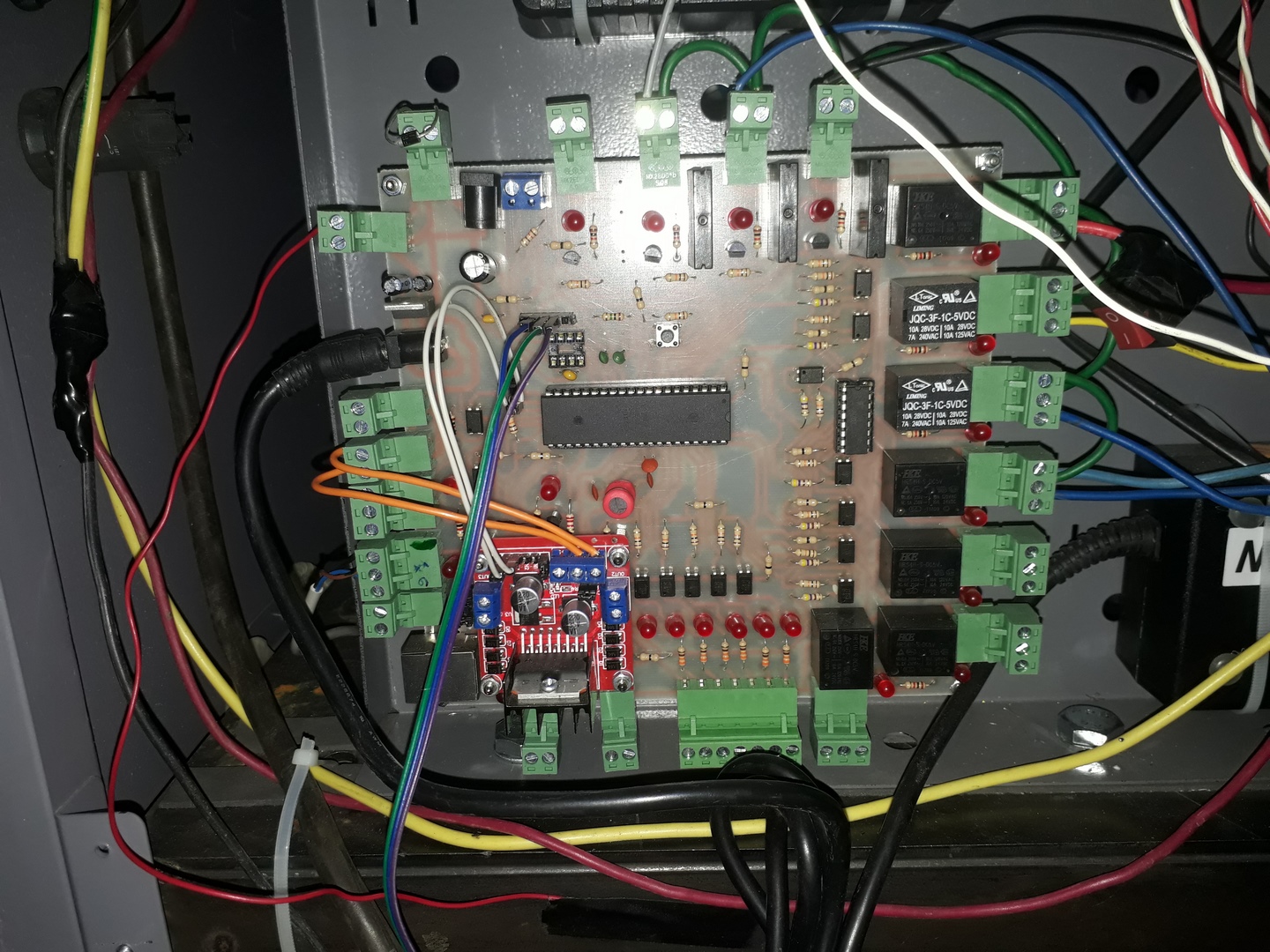

Below you can see photos of this control unit in the research and development phase.

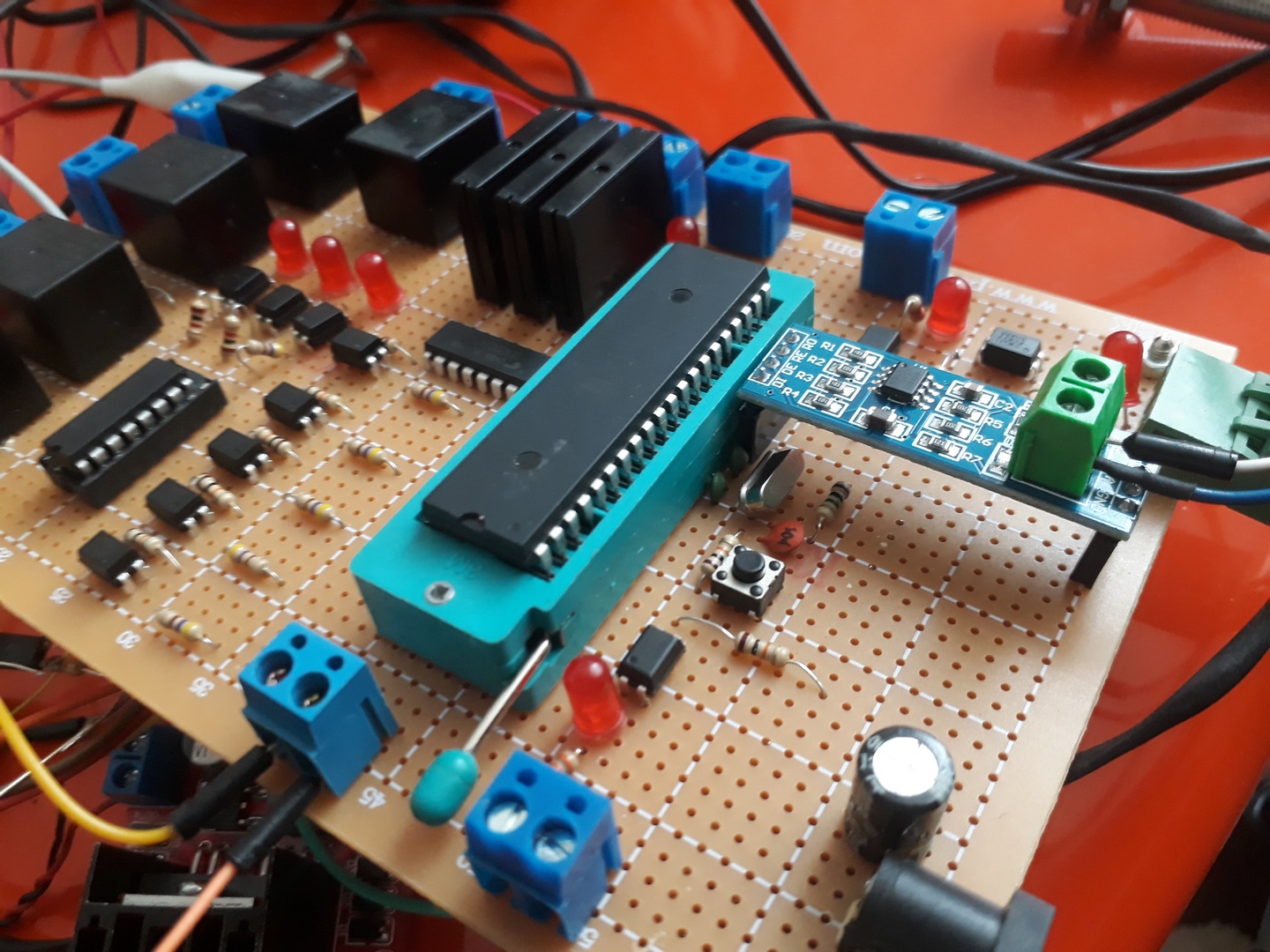

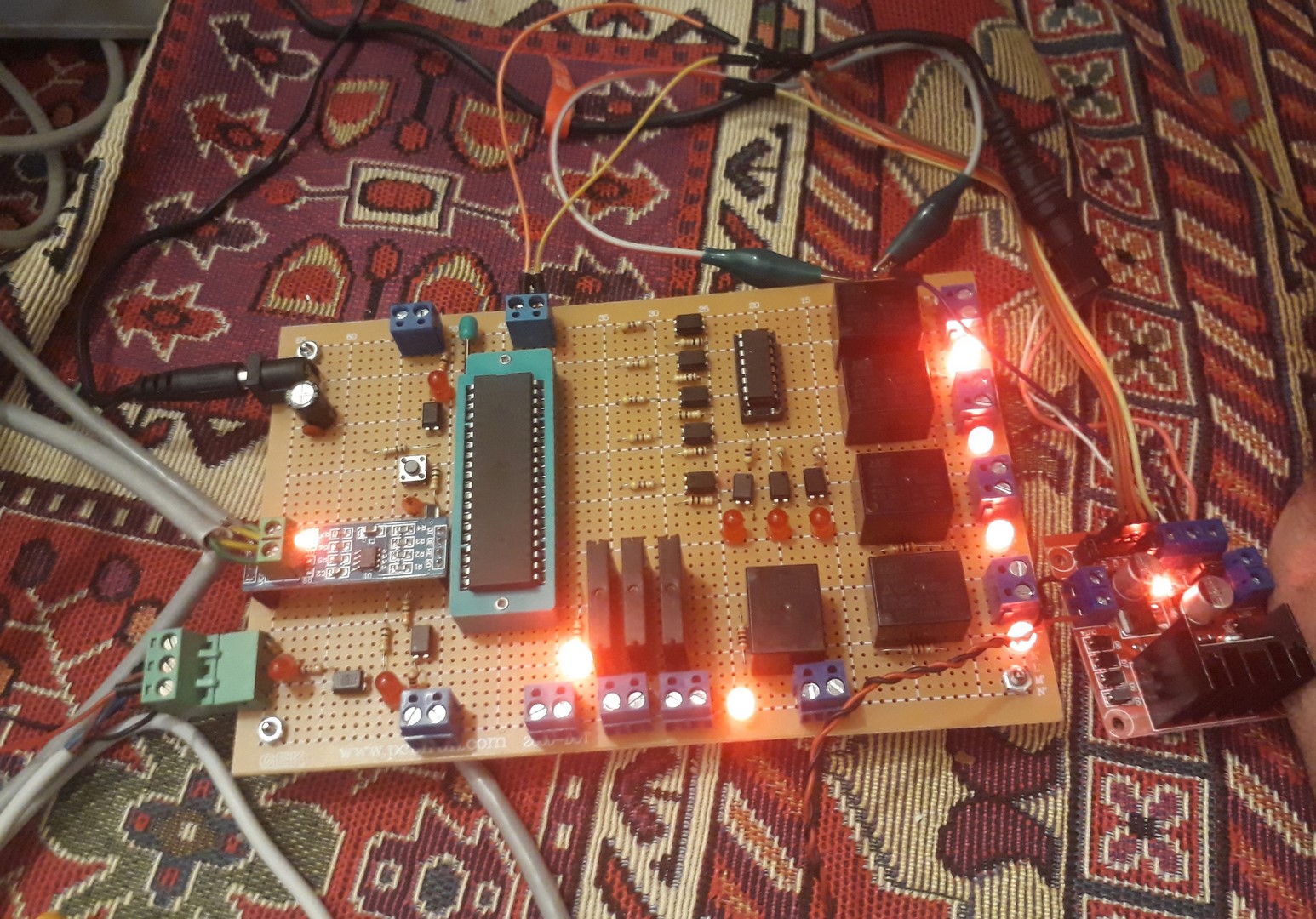

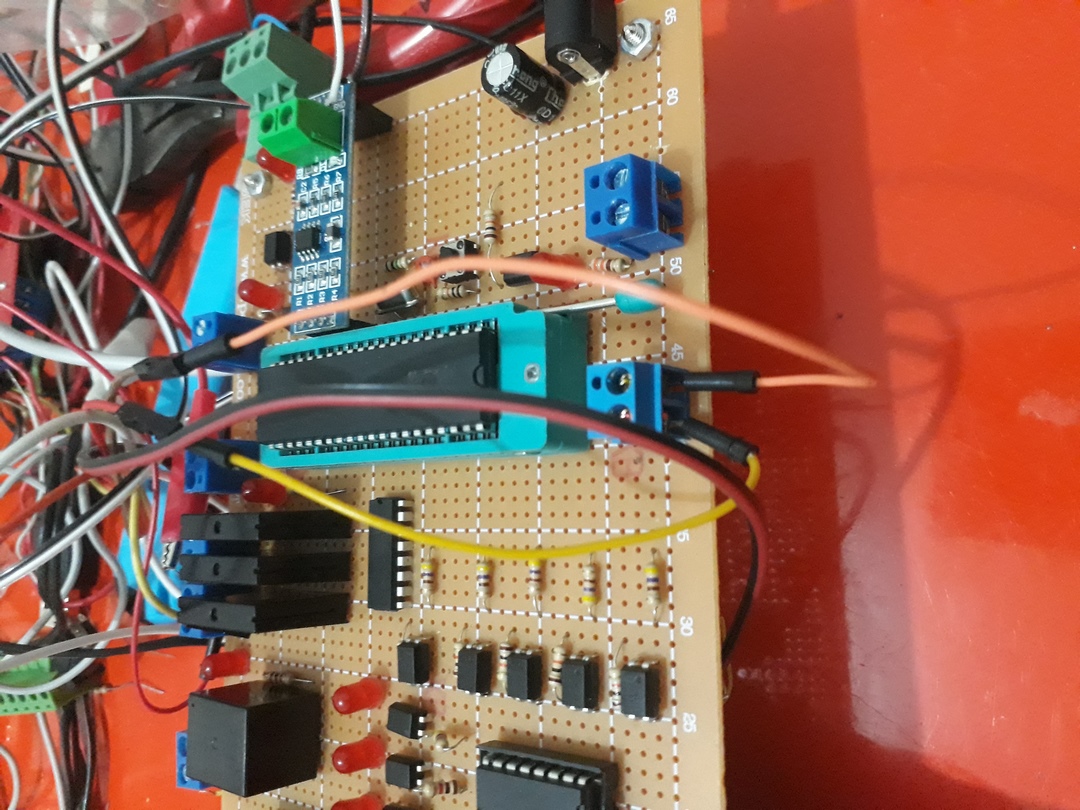

The following illustrations show the preliminary stages of testing and manufacturing this control unit.
