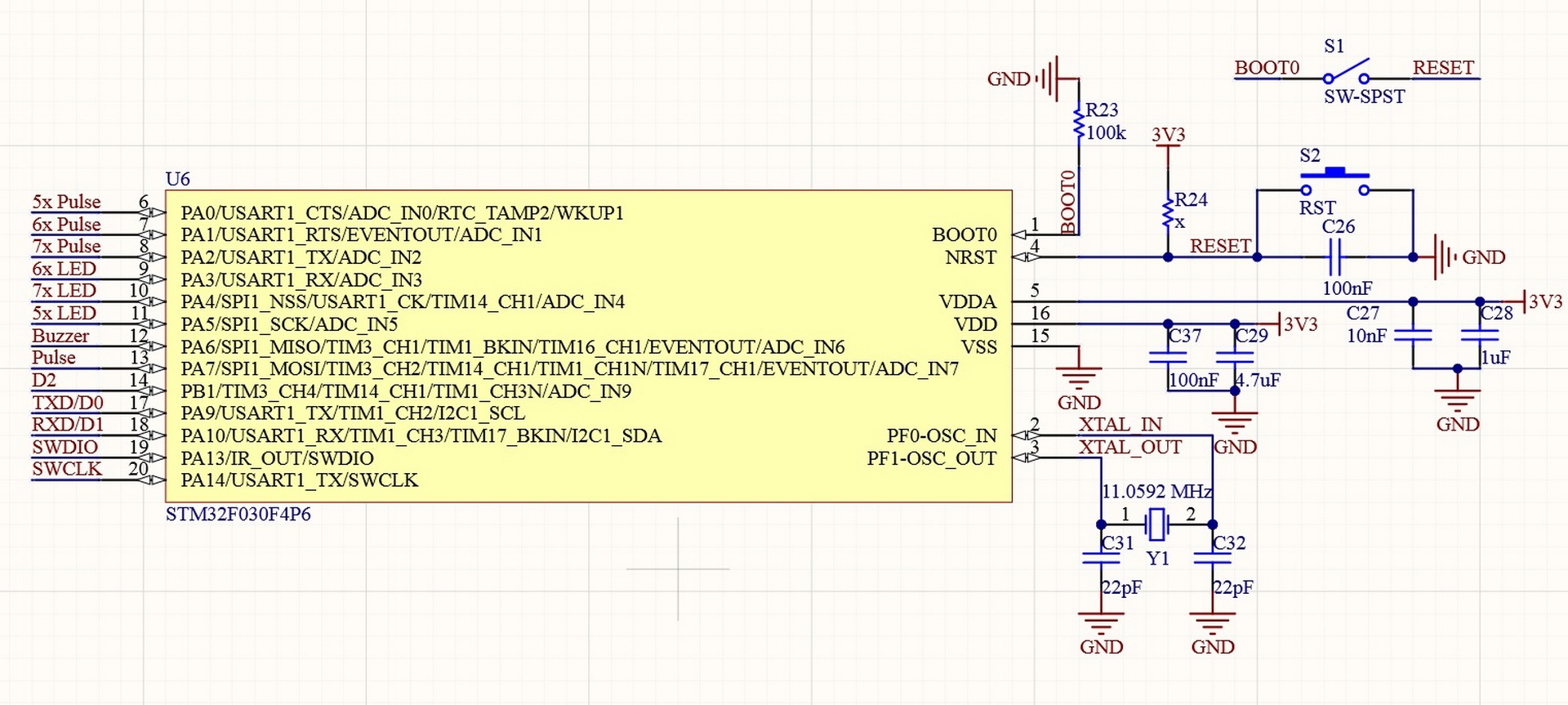

The central processor of the control unit in this High Pot system is an ARM-STM32F030F4P6.
PCB design and programming of 2 kV high pot device for the sanitary condom tester project V1.0
Project Details
- Category : Research-Industrial Project
- Date : 2019
- Related project 1 : Test device for very thin condoms
- Related project 2 : High voltage V1.0
- Related project 3 : PCB design for High voltage V2.0
- Related project 4 : PCB design for High voltage V3.0
- Related project 5 : PCB design for High voltage V4.0
- Related project 5 : PCB design for High voltage V5.0
- Related project 6 : PCB design for High voltage V5.1 Download Title
In this project, the PCB design and electronic board schematics of the 2 kV high pot devices were created. The programming of this PCB was also carried out in the C/C++ language in the Keil µVision software programming environment. In condom manufacturing factories, it is necessary to test condoms for the absence of holes after initial production. This test is carried out with an electronic testing device or ET. The basis of this device is to create a high-voltage circuit. If the condom has a hole, a short circuit occurs in the circuit and the device rejects the condom.

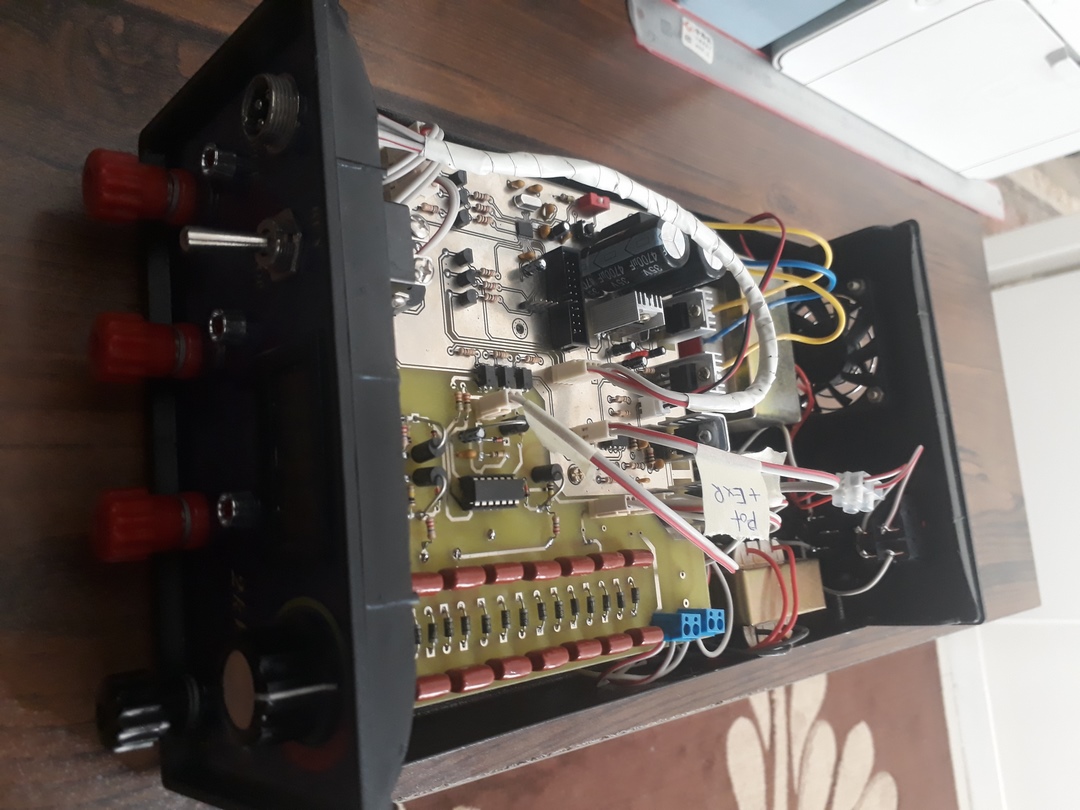

This 2 kV high pot device was designed and built for the research and development phase of the project to develop and manufacture sanitary condom testers.

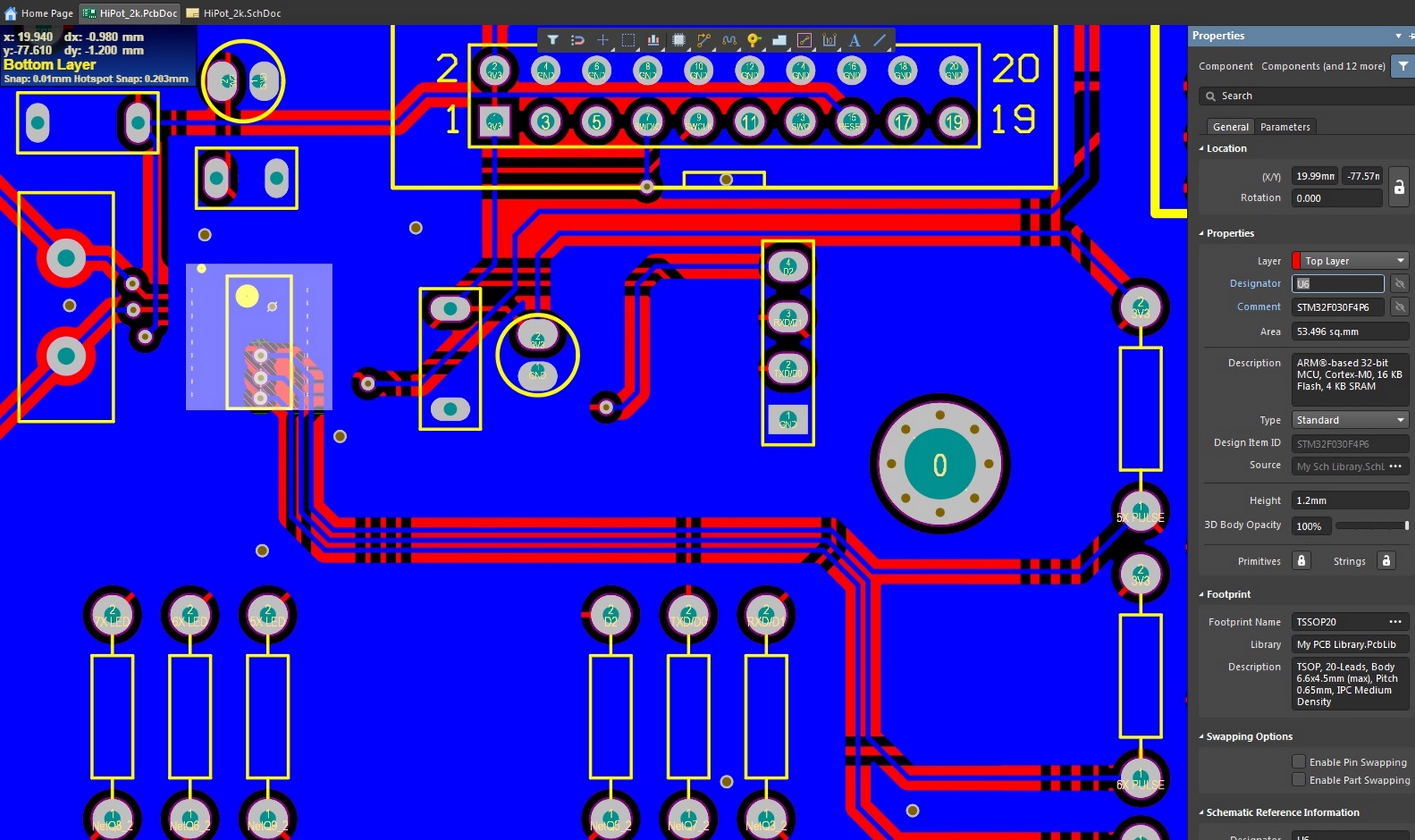

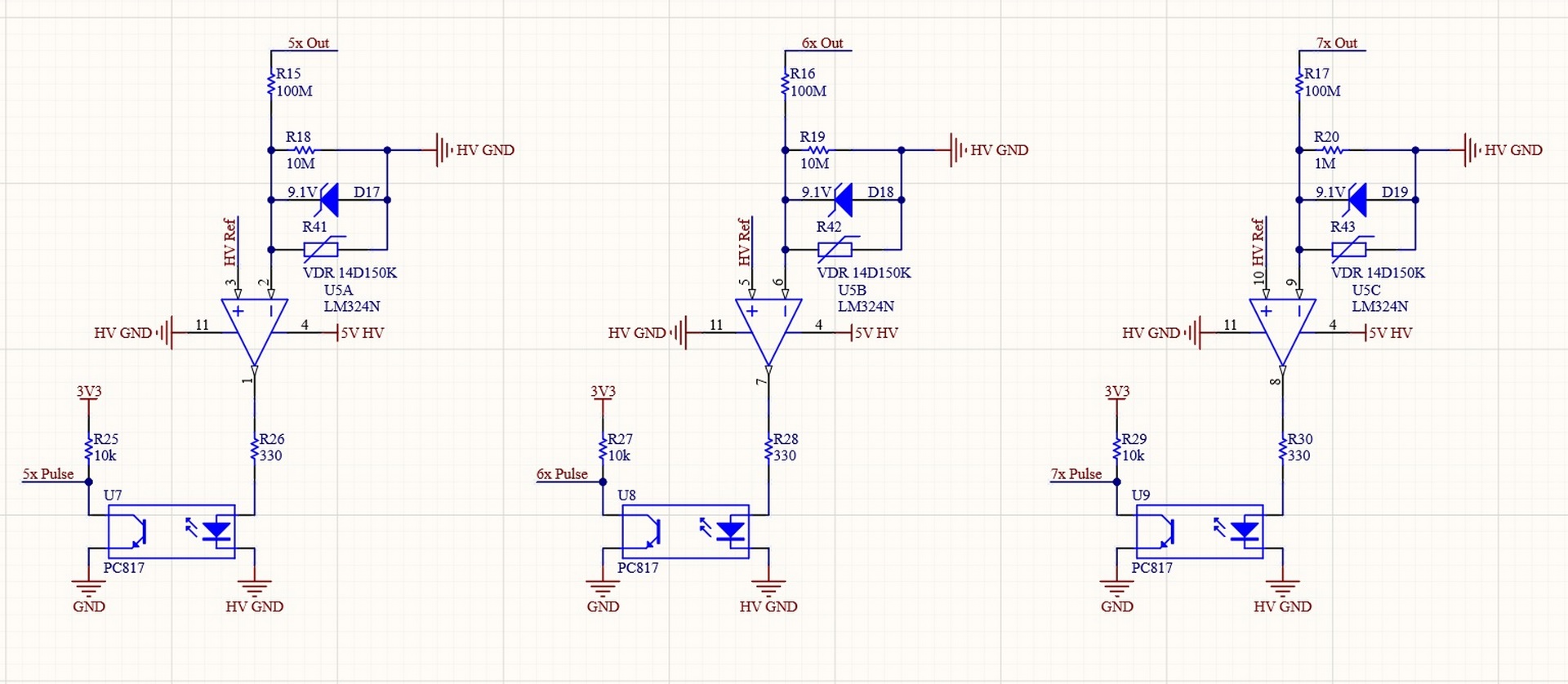

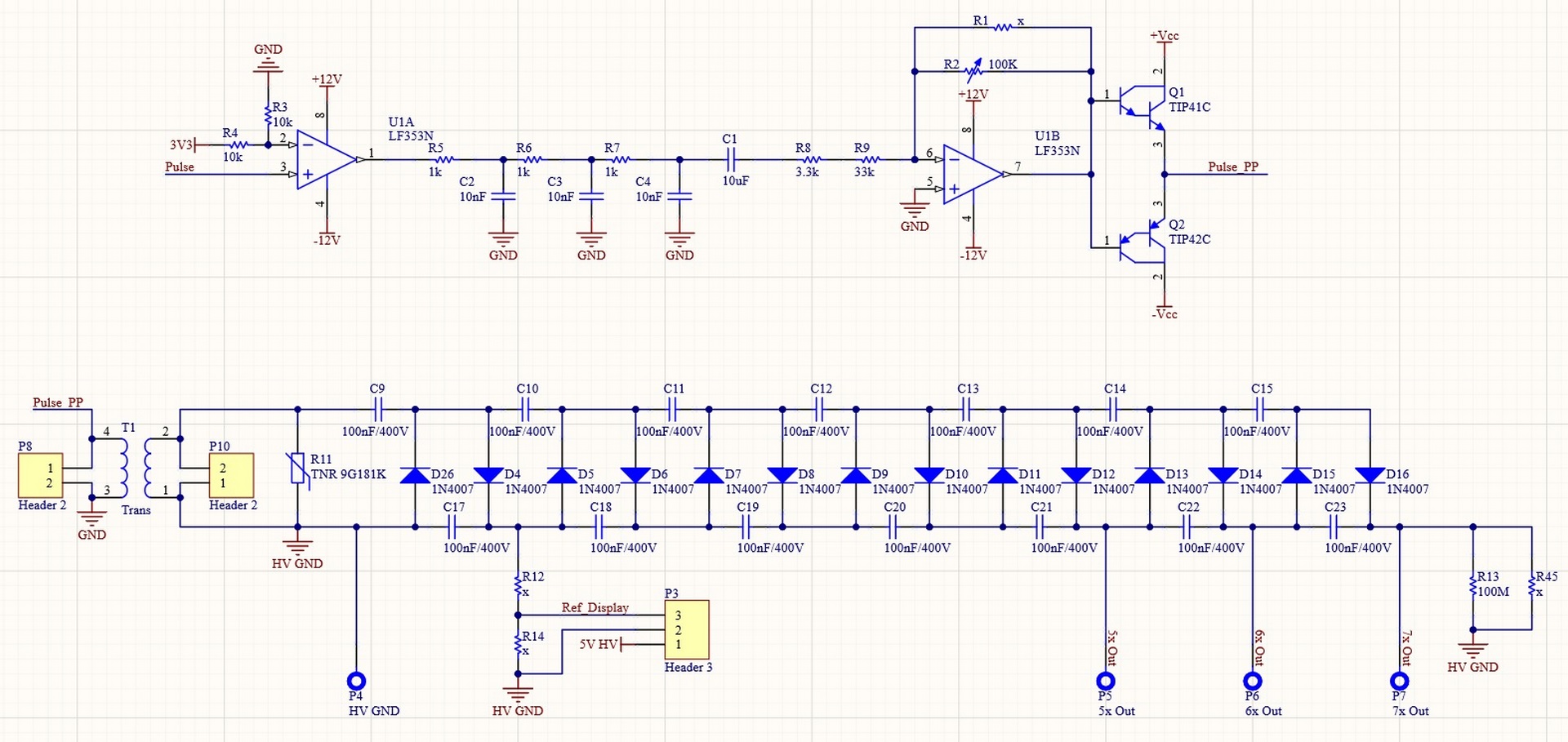

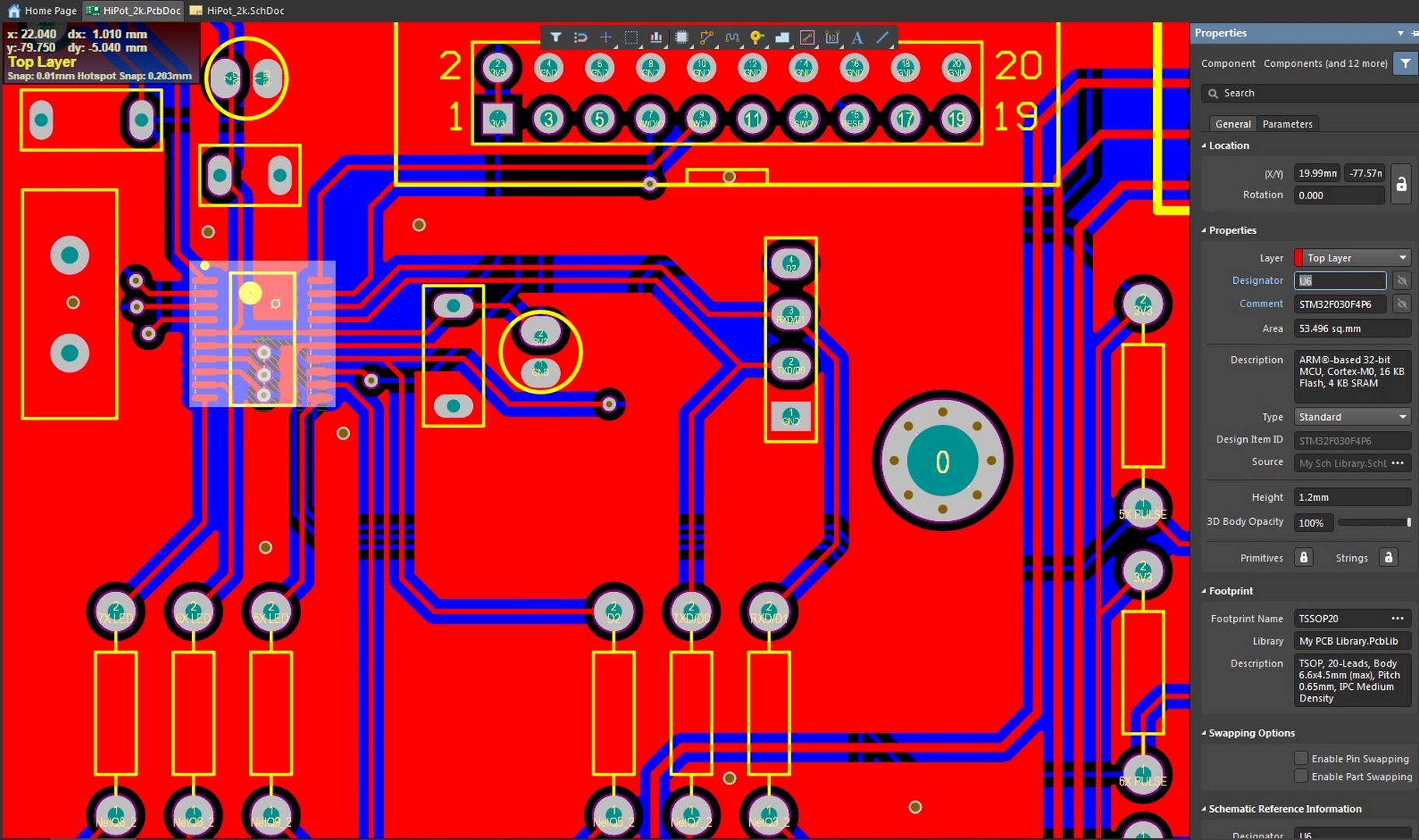

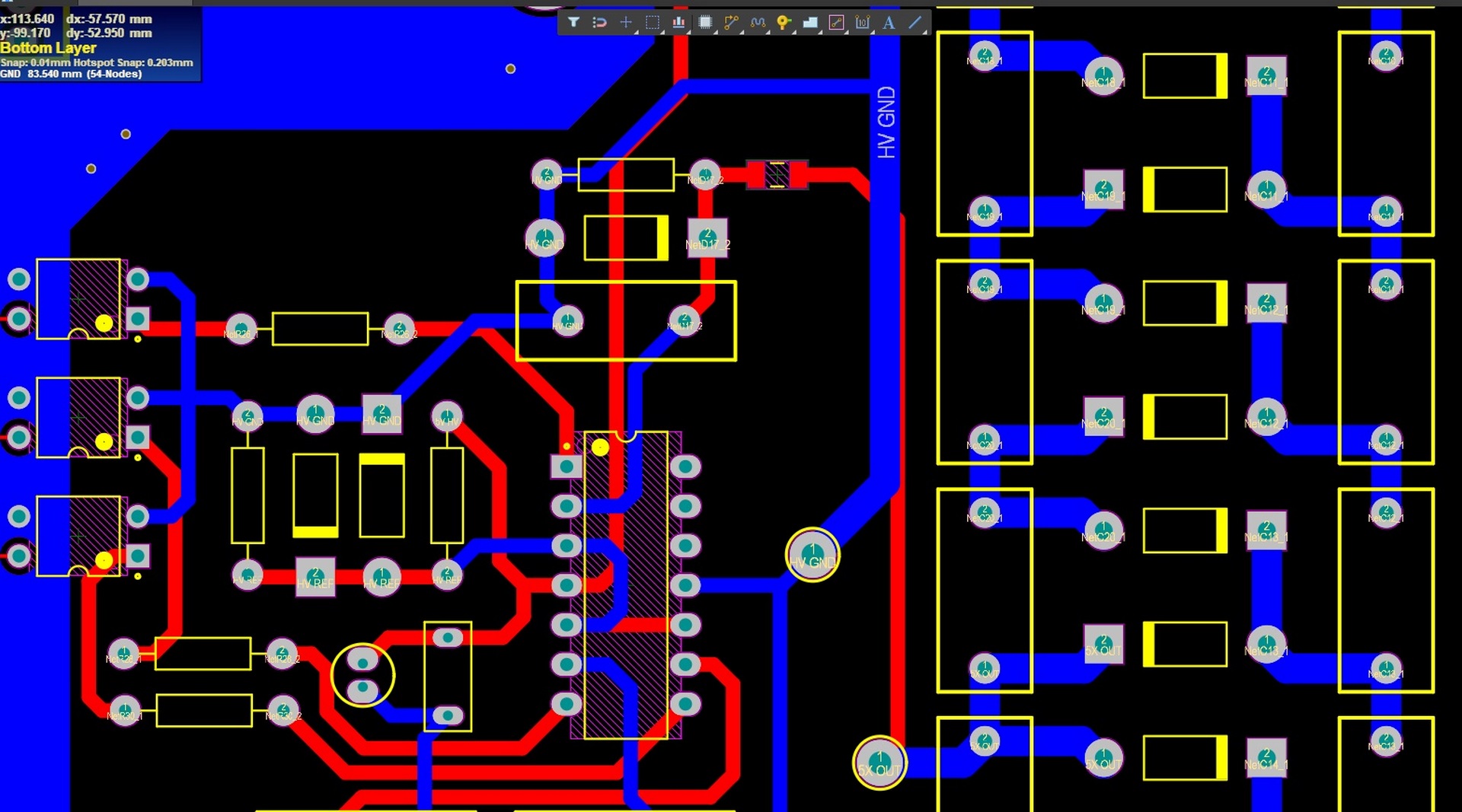

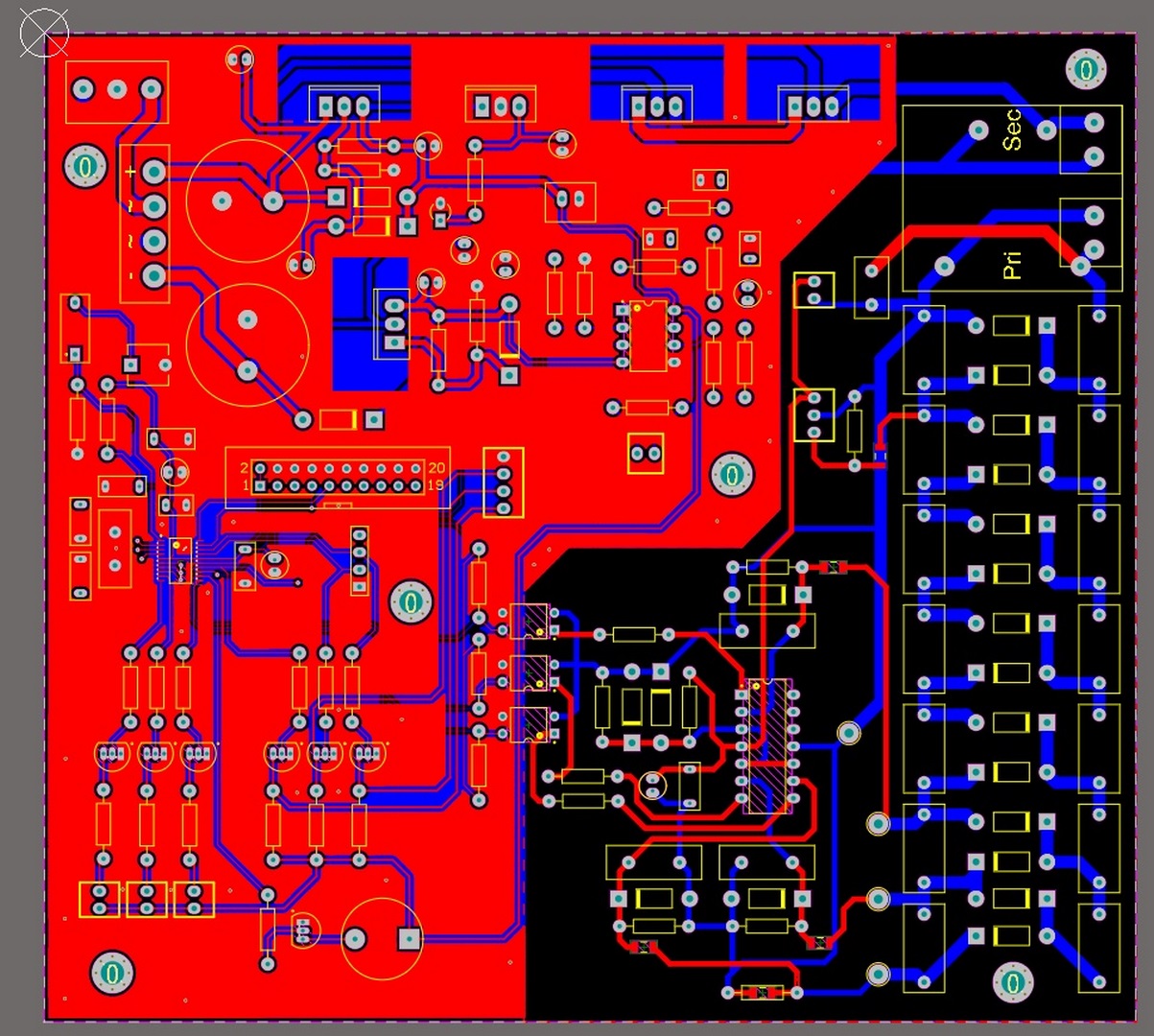

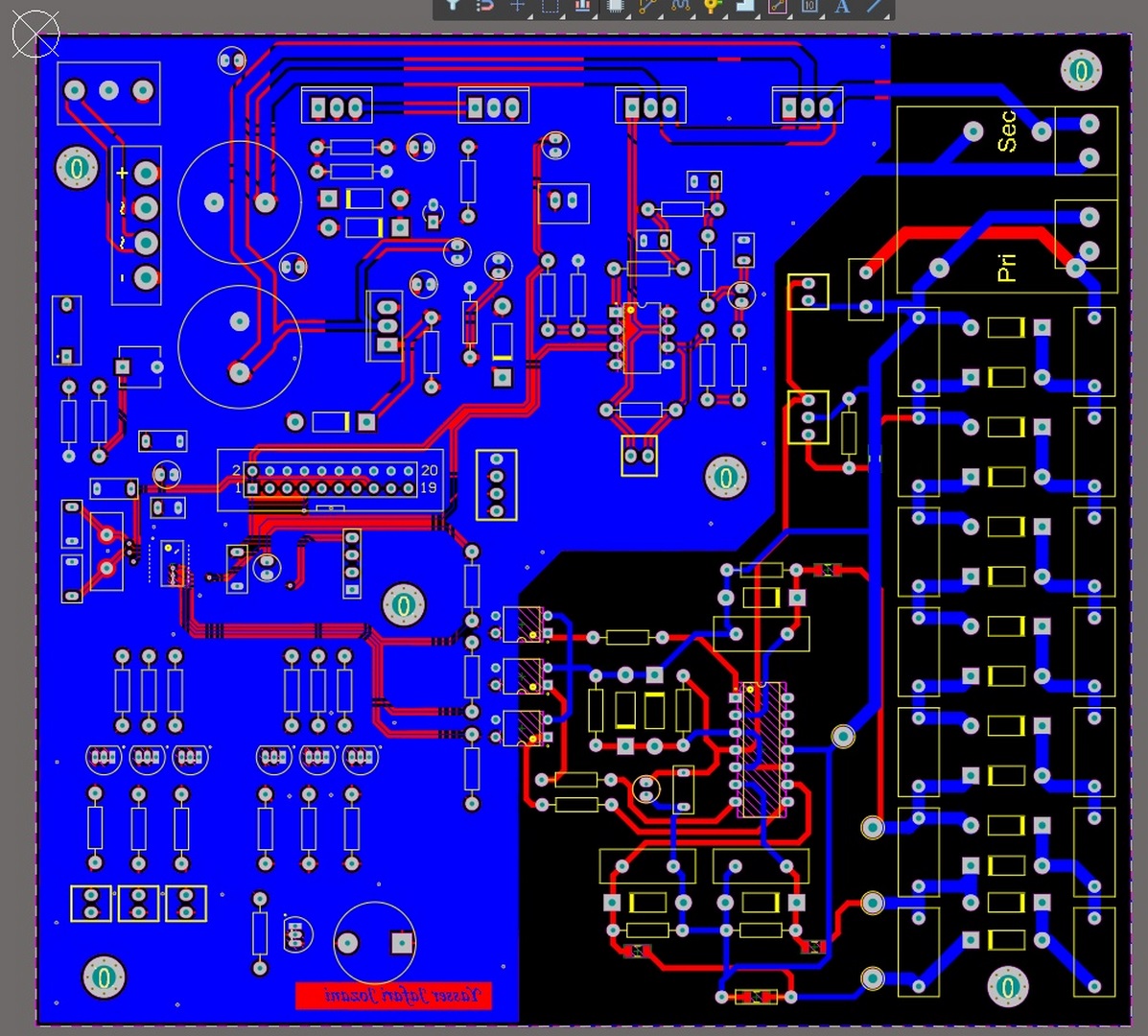

In the figures below, various parts of the schematic and PCB related to this project are shown.

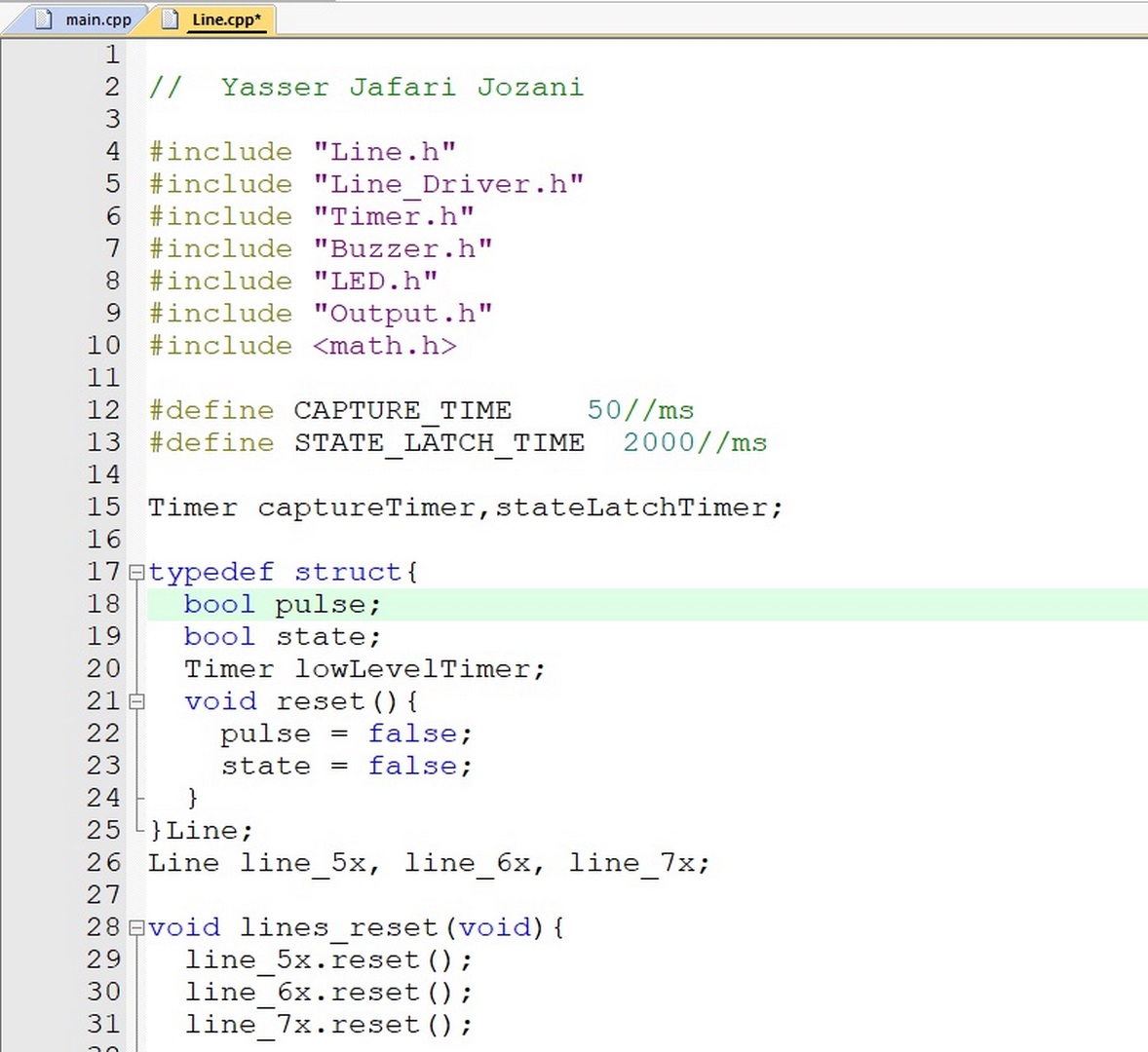

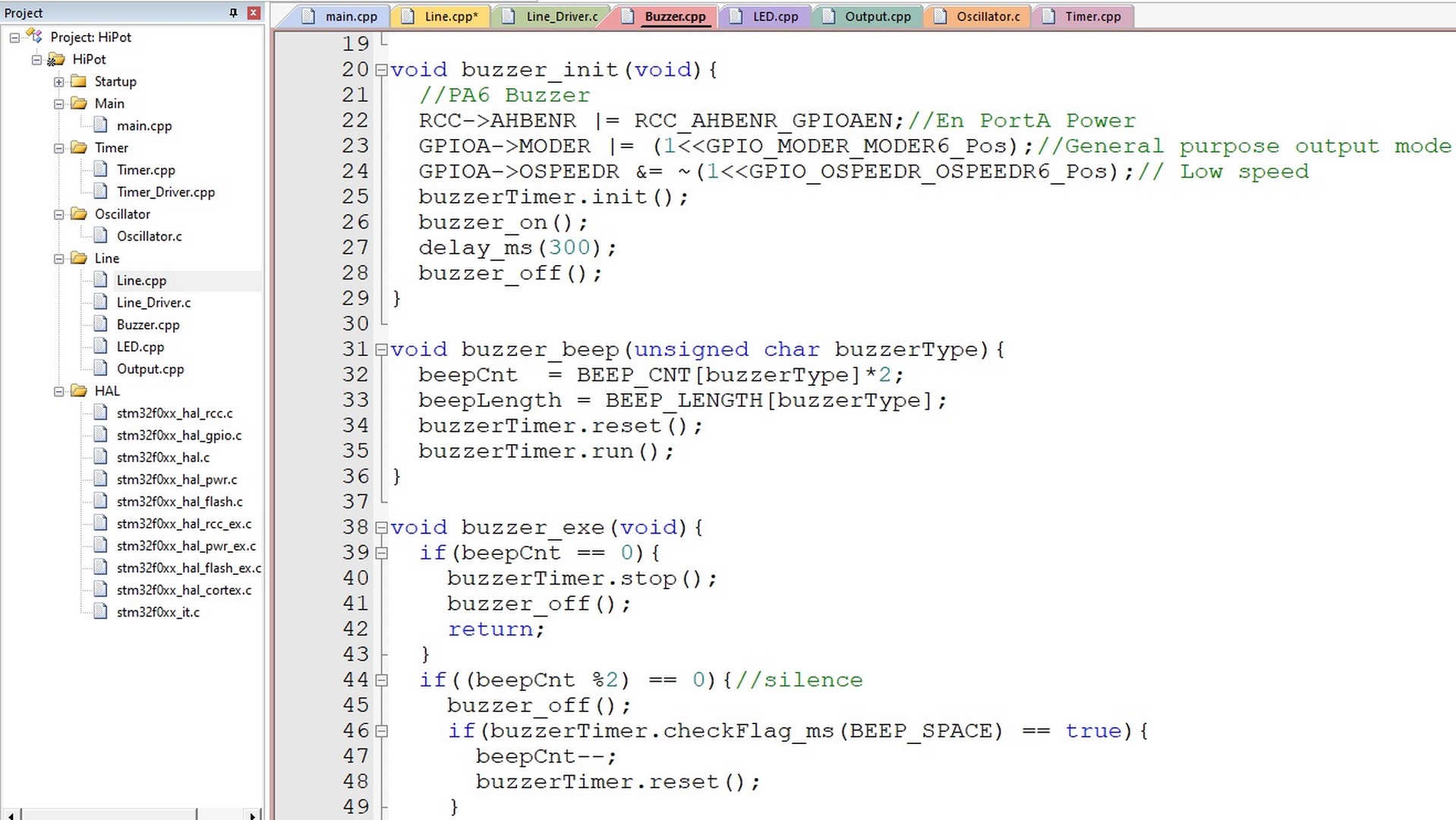

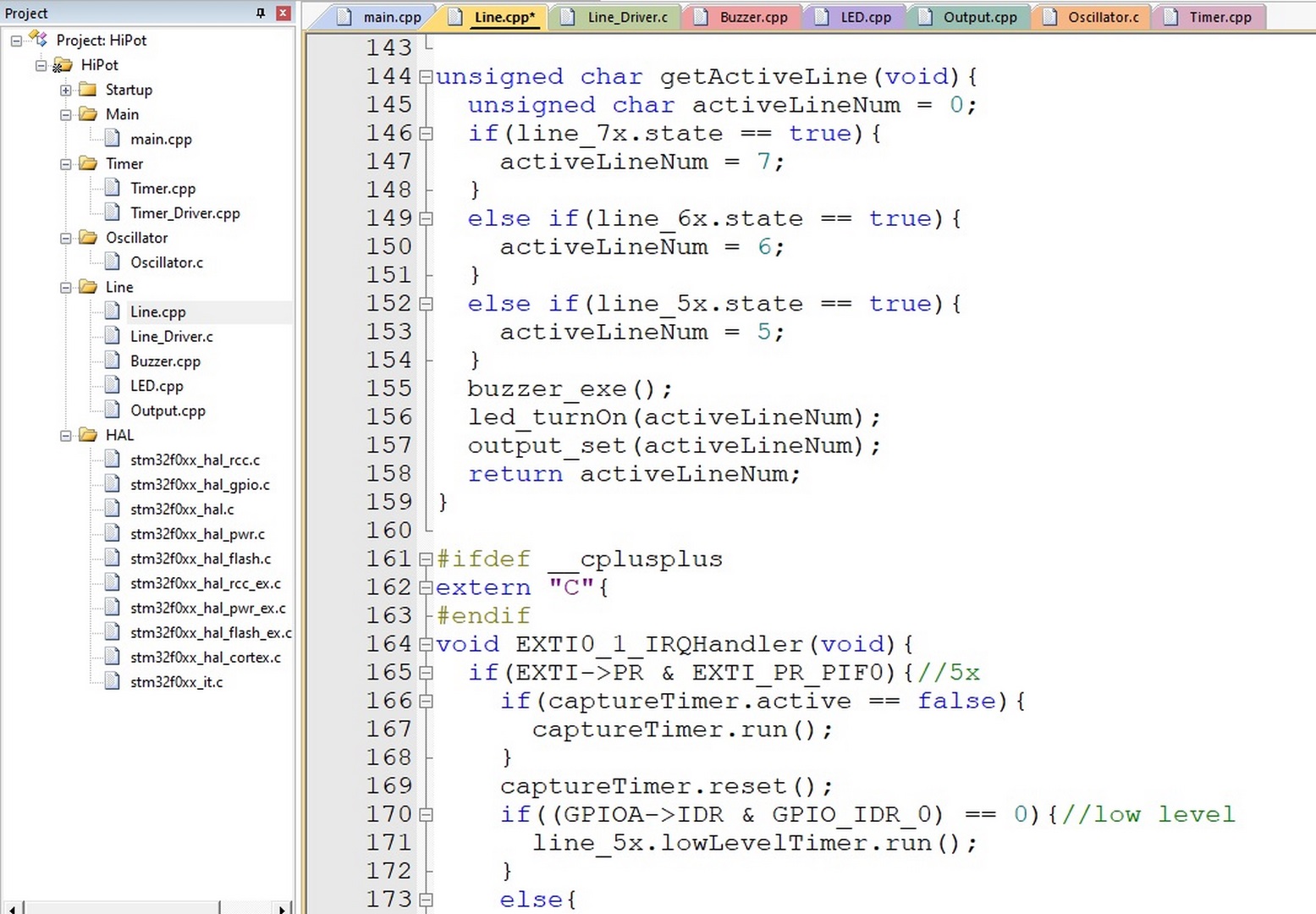

The figure below shows a part of the central microcontroller programming.
