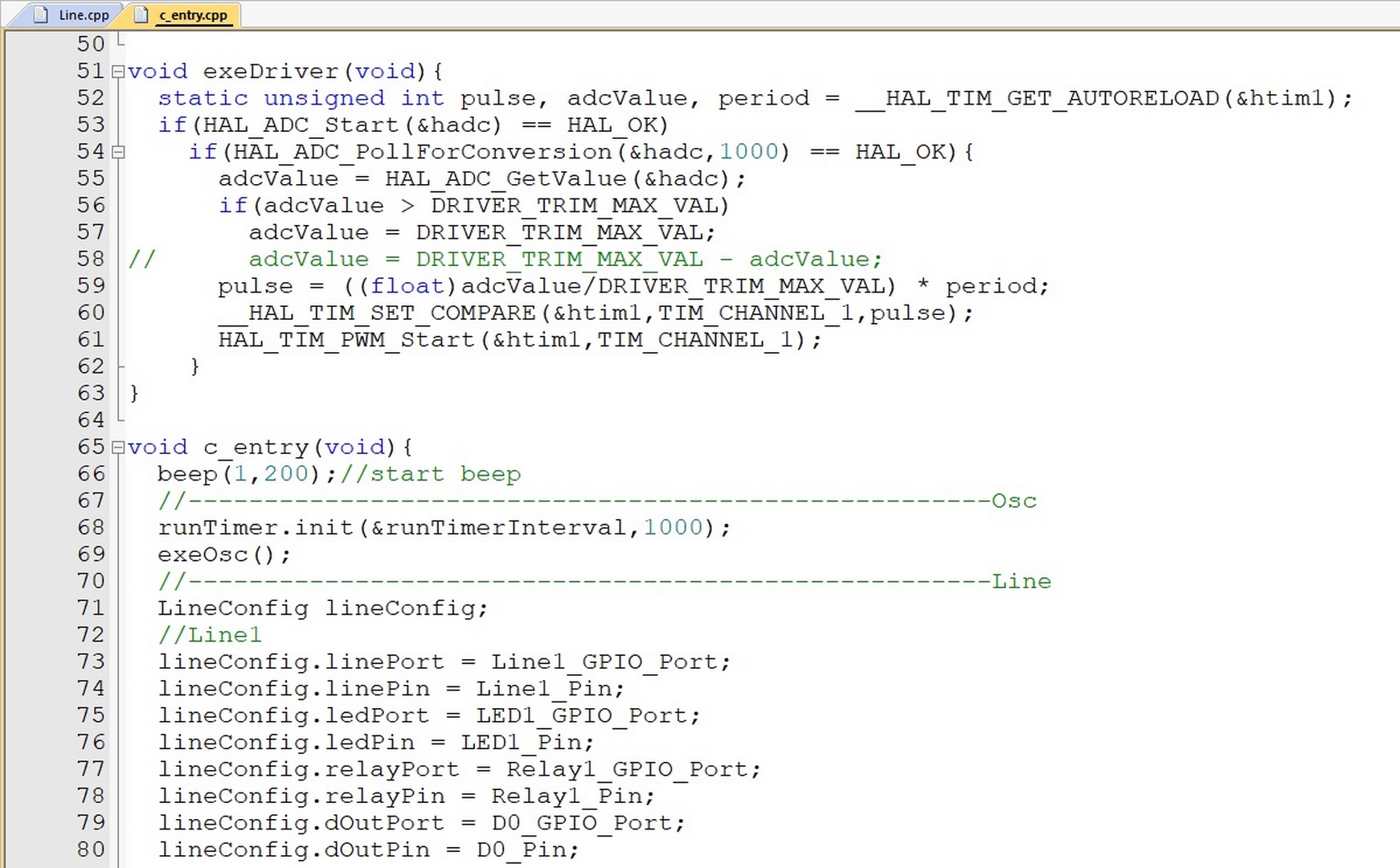

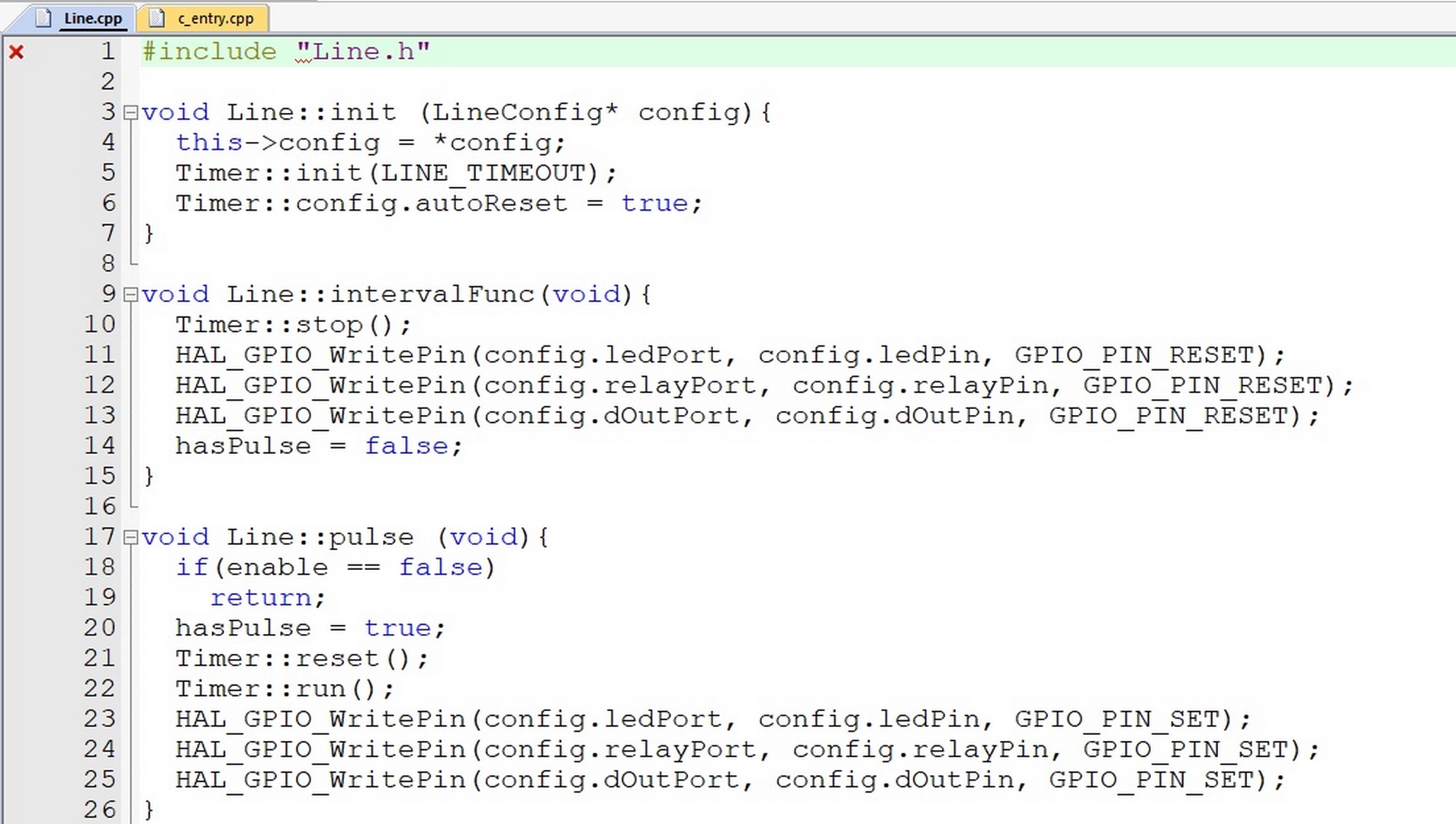

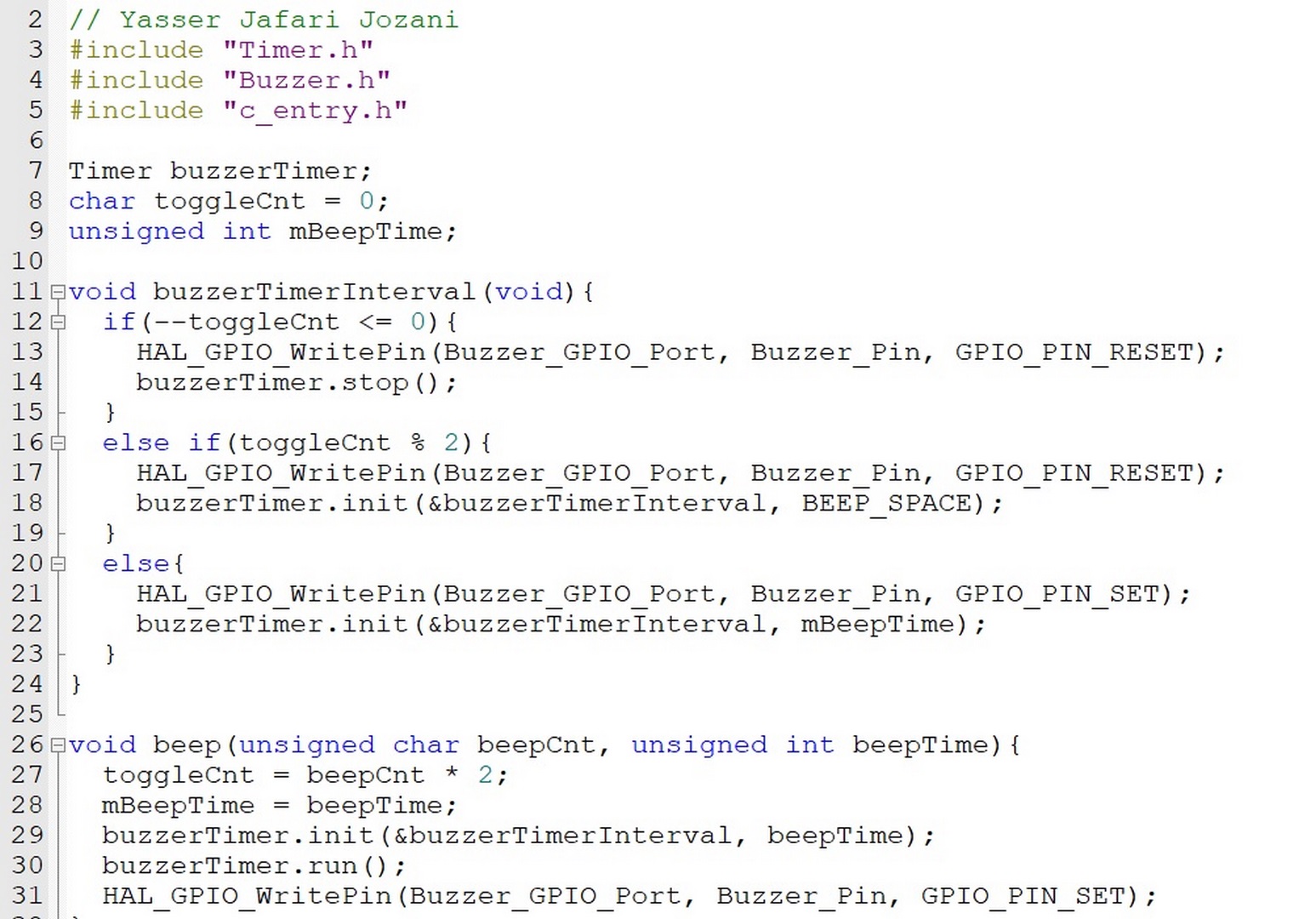

In this project, the PCB design and electronic board schematics of the 5 kV high pot devices were created. The programming of this PCB was also carried out in the C/C++ language in the Keil µVision software programming environment. In condom manufacturing factories, it is necessary to test condoms for the absence of holes after initial production. This test is carried out with an electronic testing device or ET. The basis of this device is to create a high-voltage circuit. If the condom has a hole, a short circuit occurs in the circuit and the device rejects the condom.

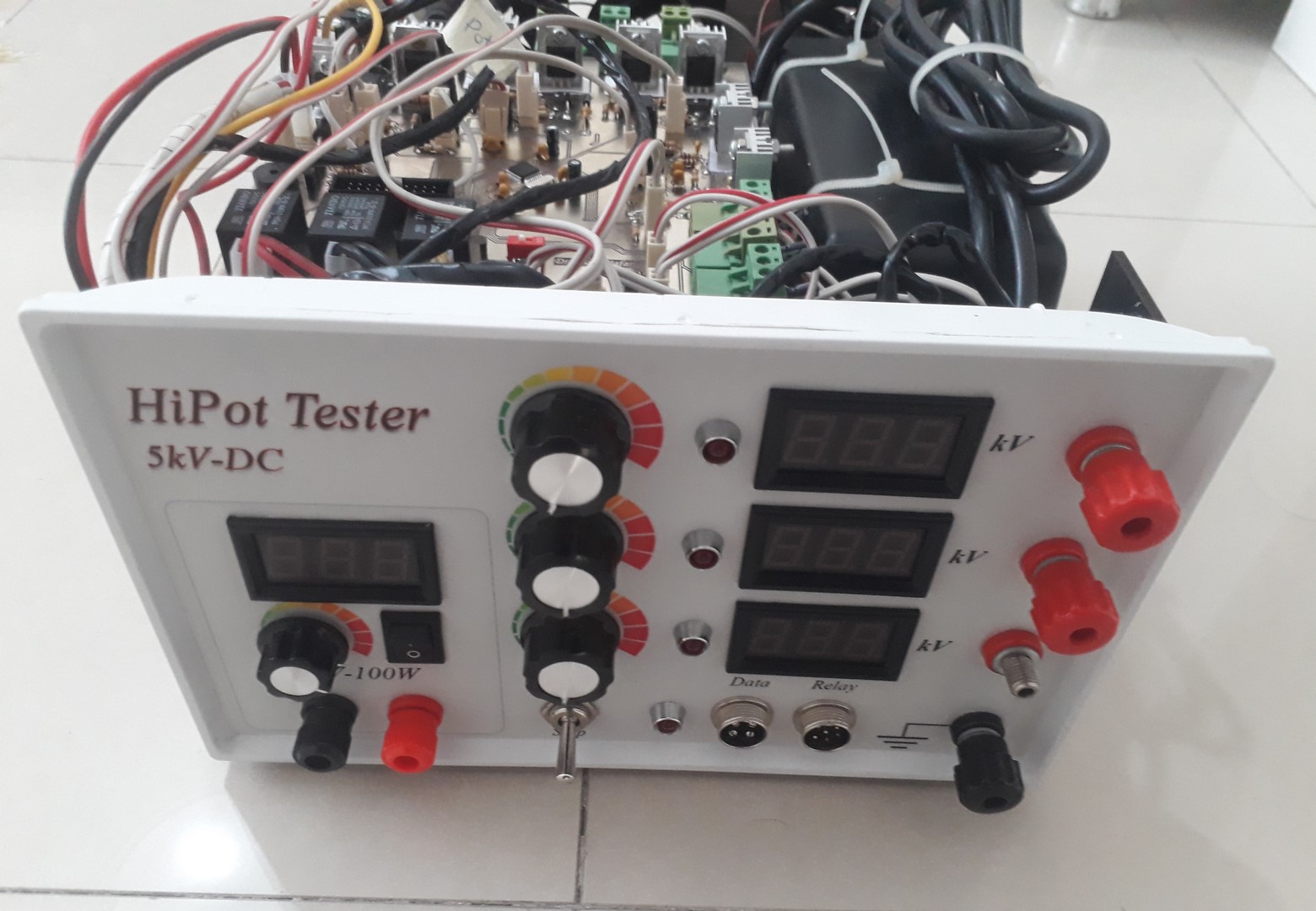

This 5 kV high pot device was designed and built for the research and development phase of the project to develop and manufacture sanitary condom testers.

This high voltage devices has the ability to detect holes on condoms in three areas:

1-Holes in the first area (the hole is in the upper third of the condom)

2-Holes in the second area (the hole is in the middle third of the condom)

3-Holes in the third area (the hole is in the bottom third of the condom)

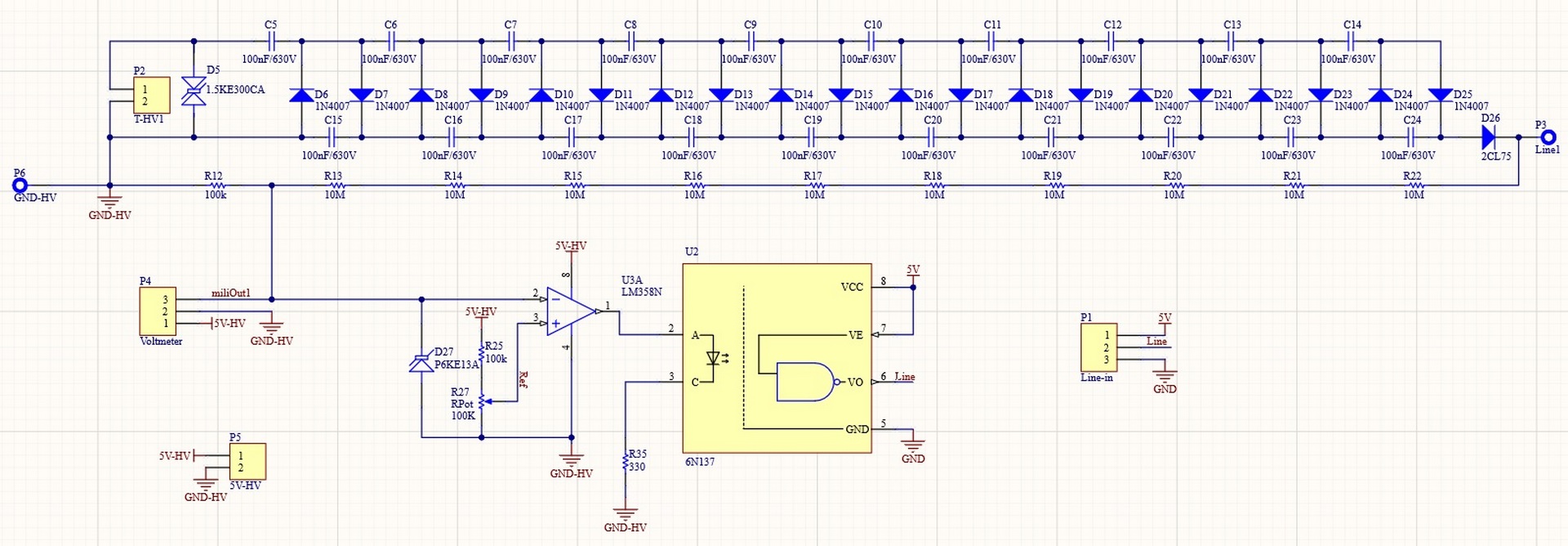

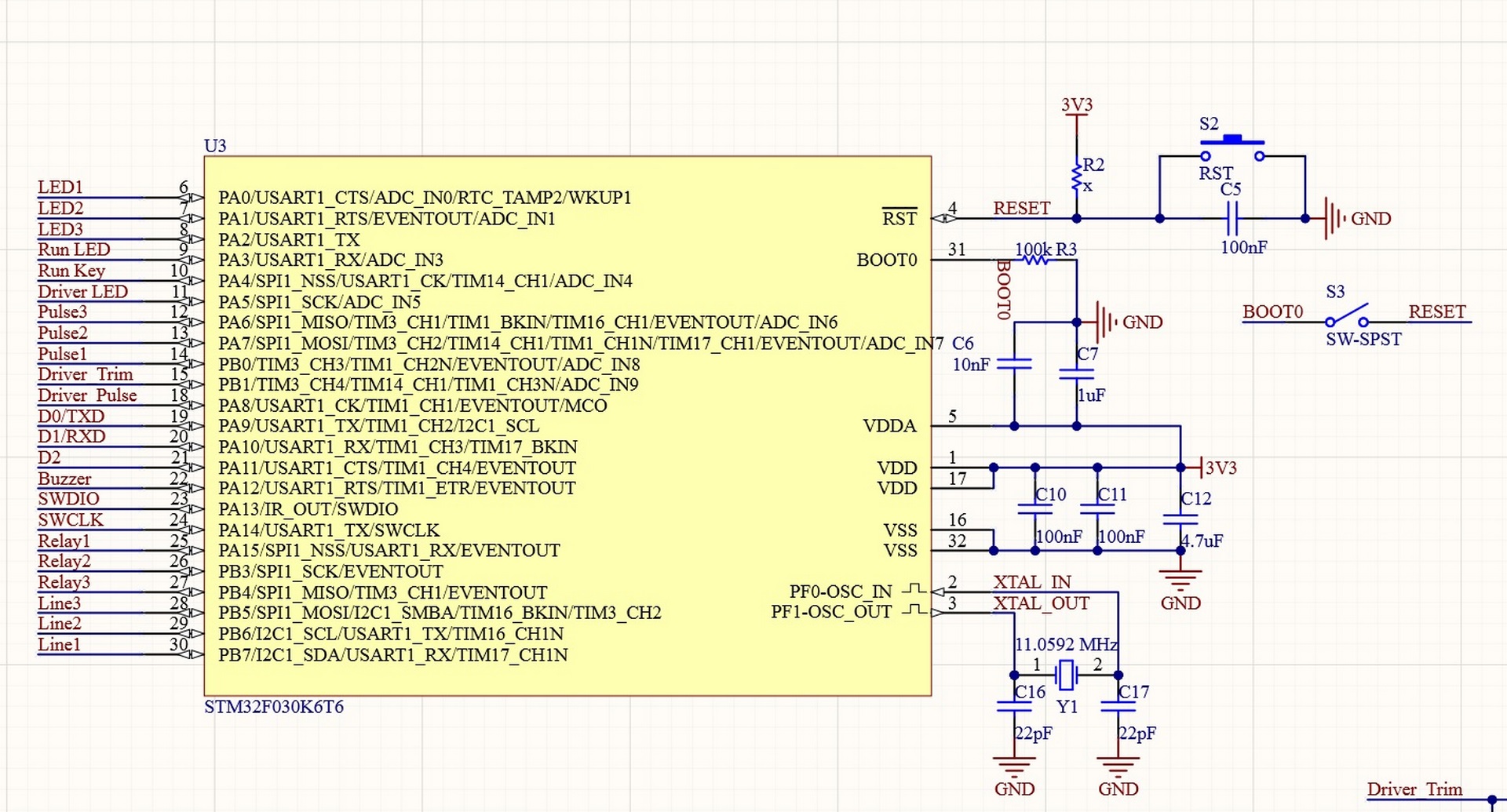

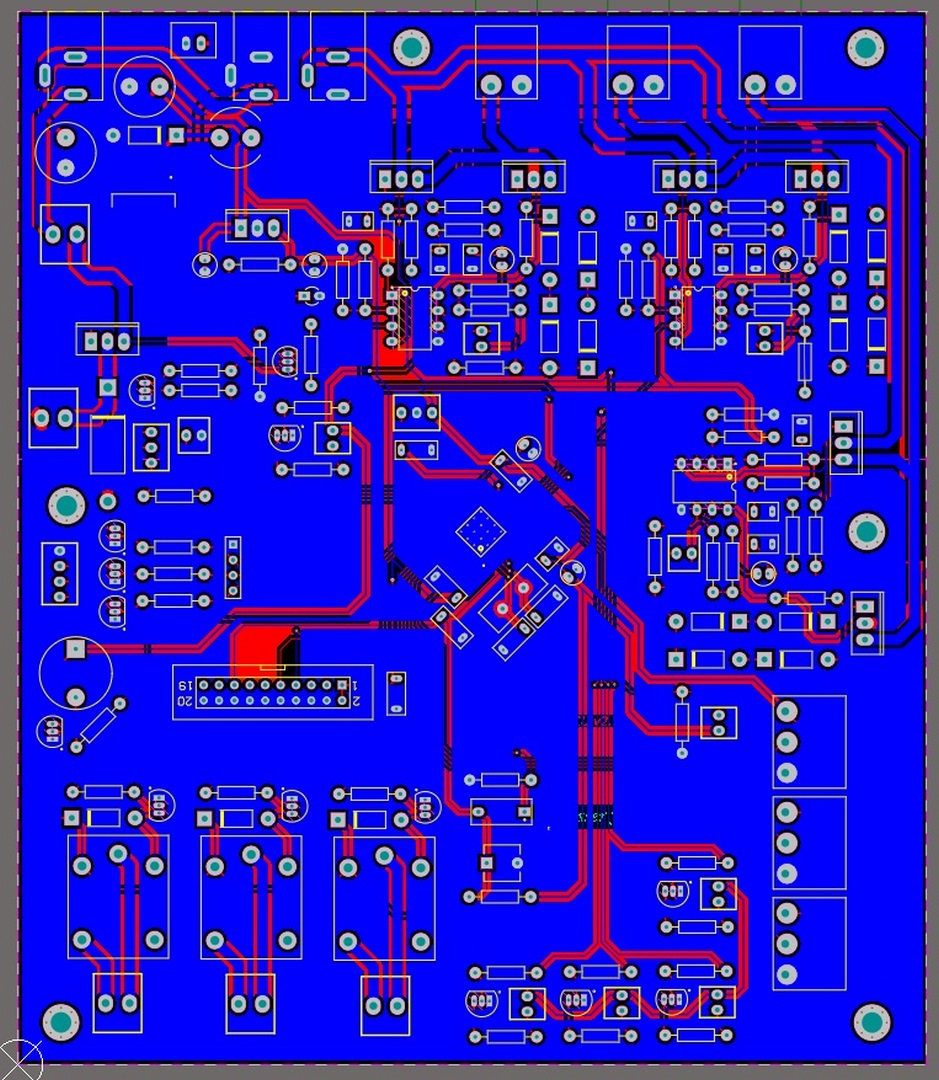

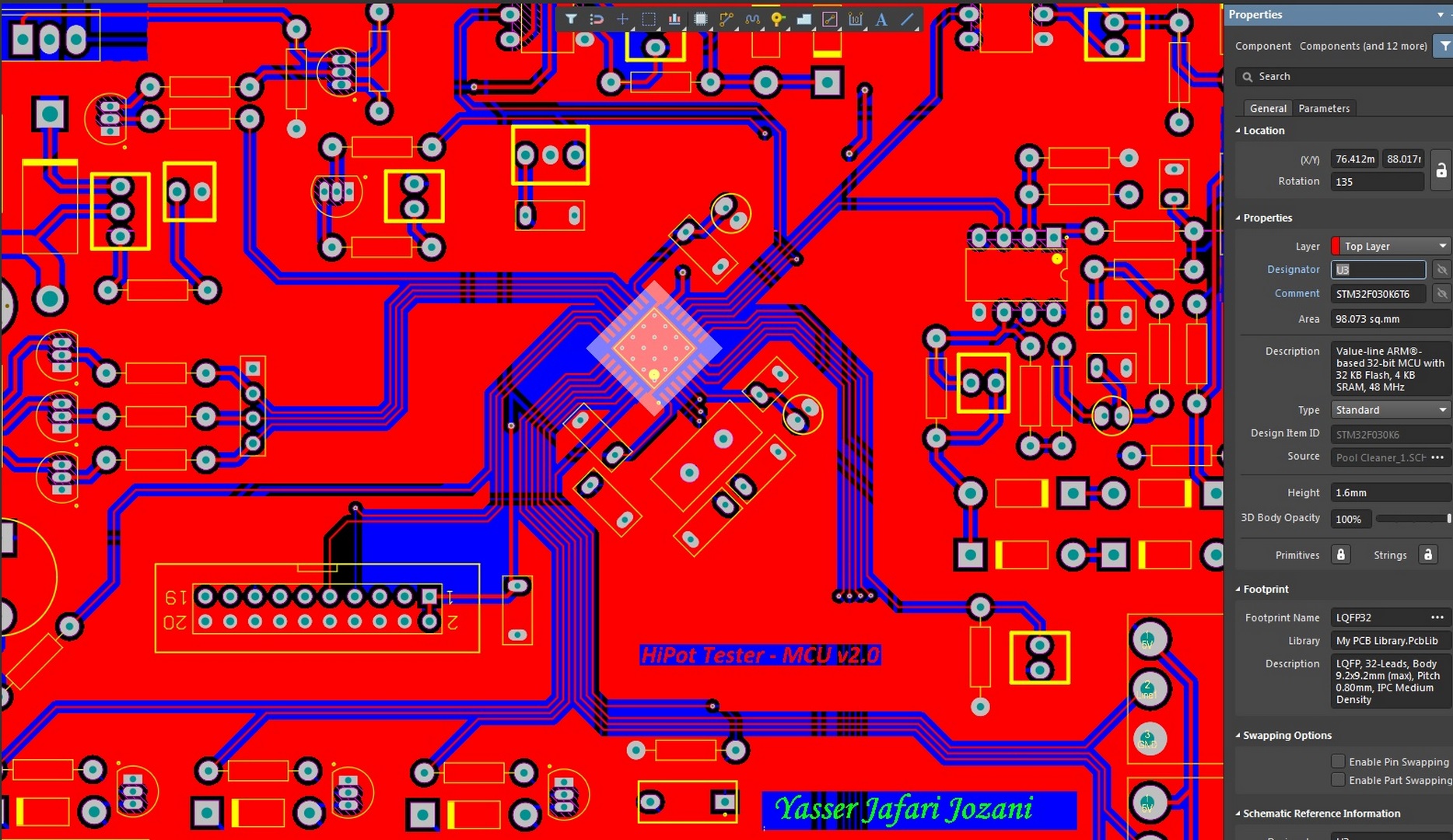

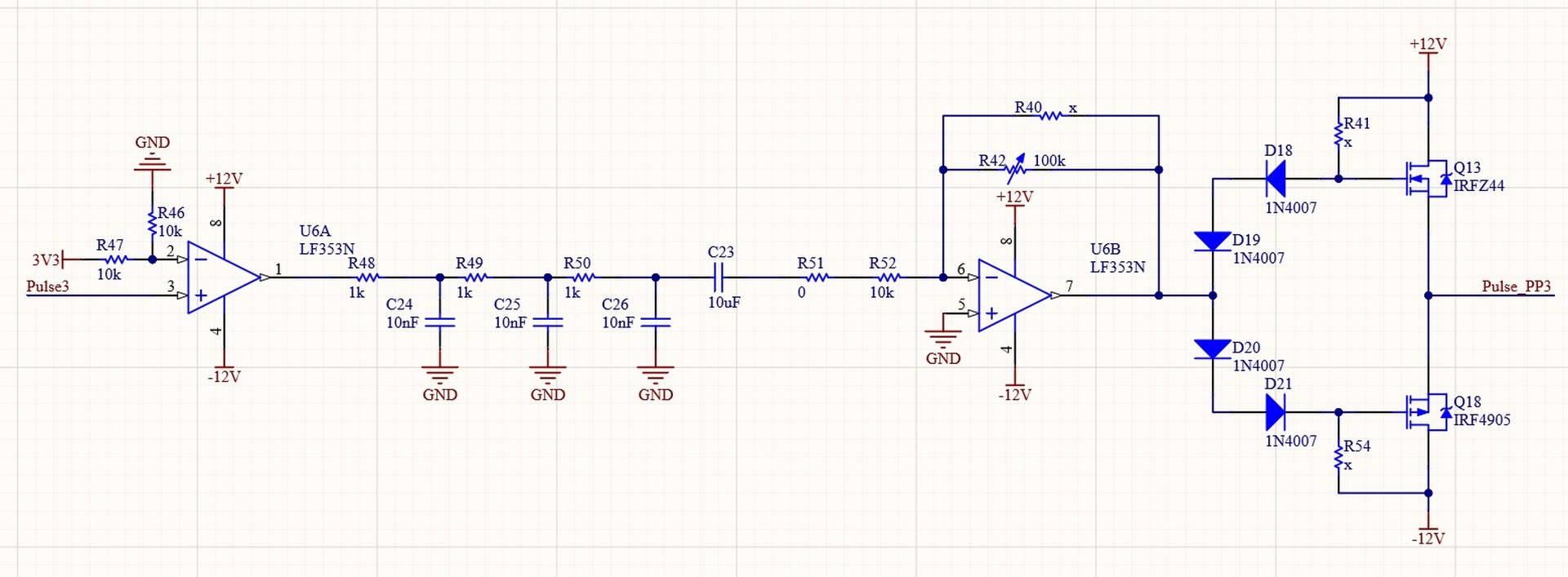

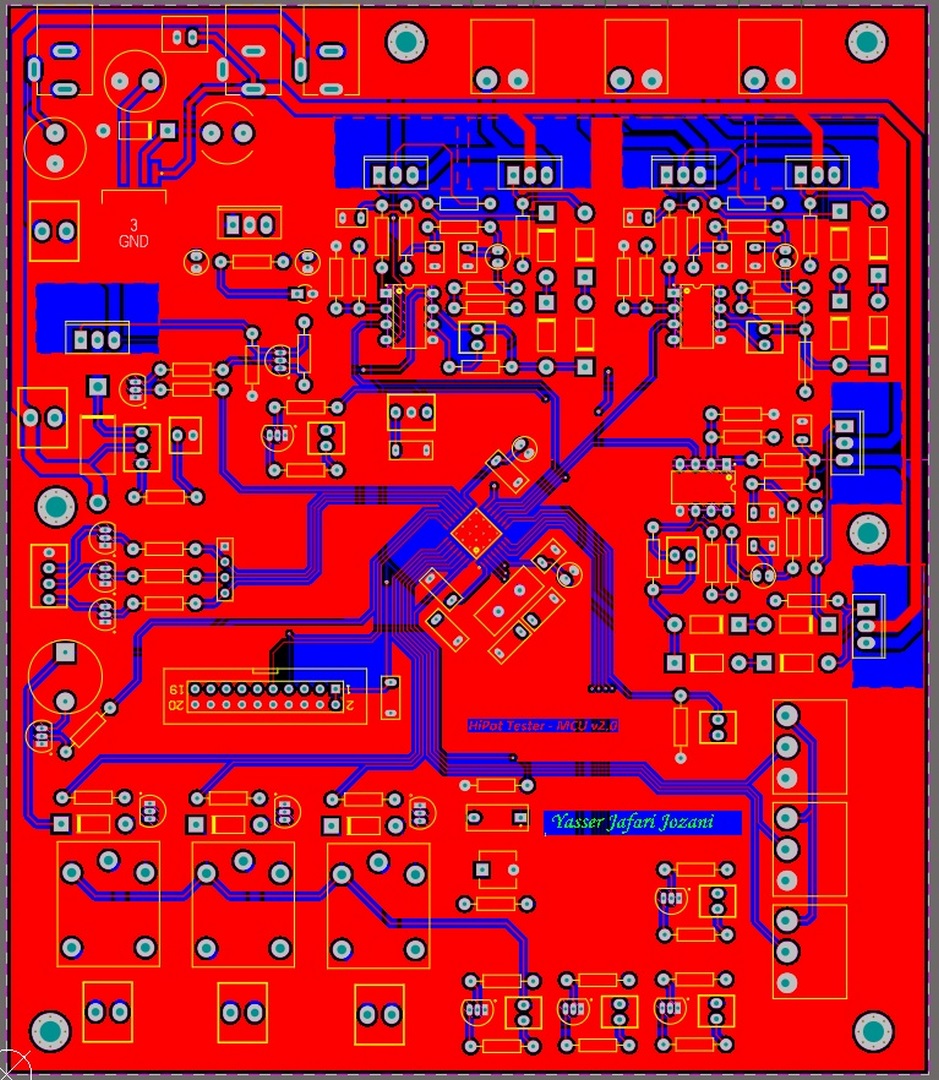

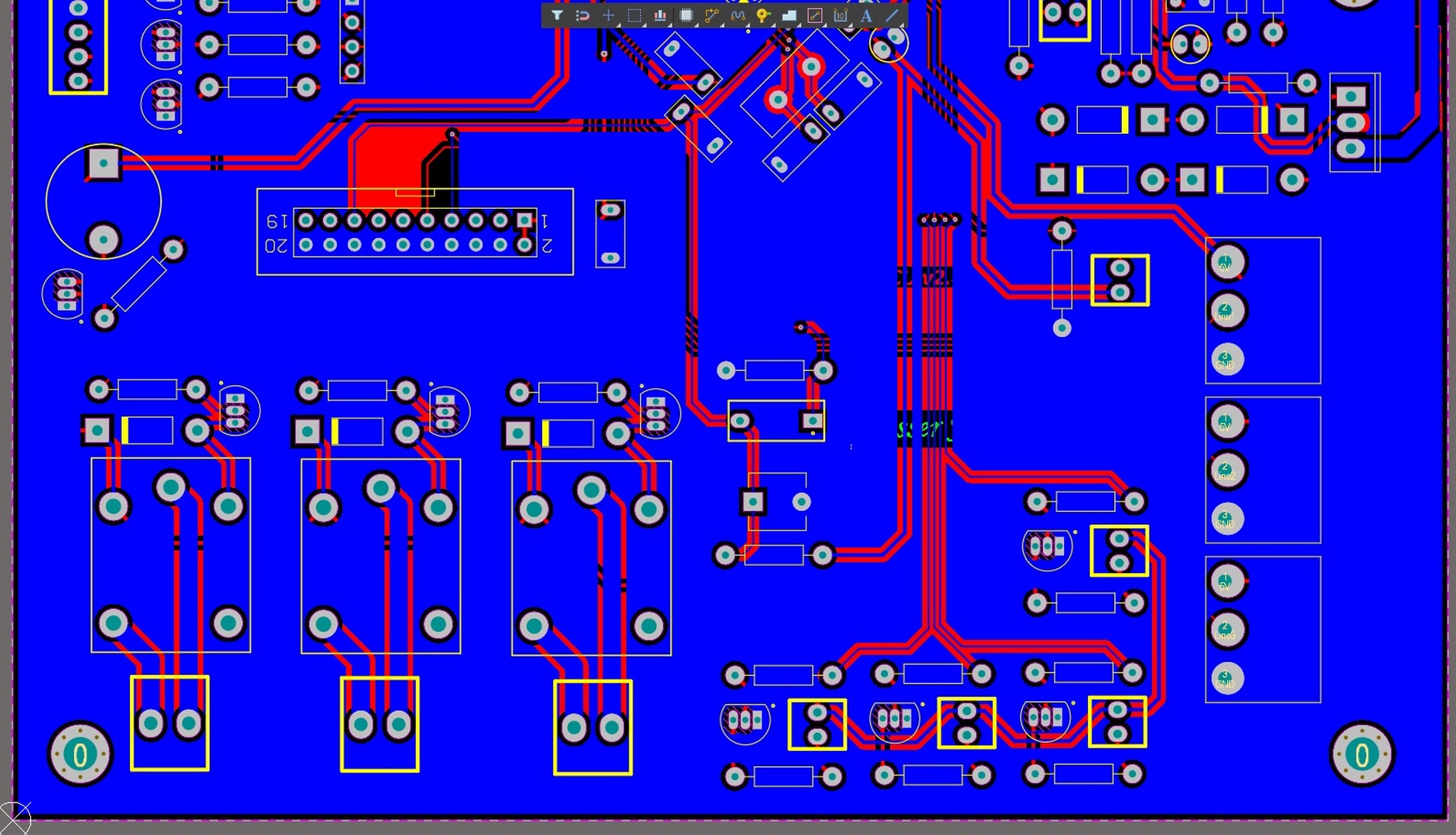

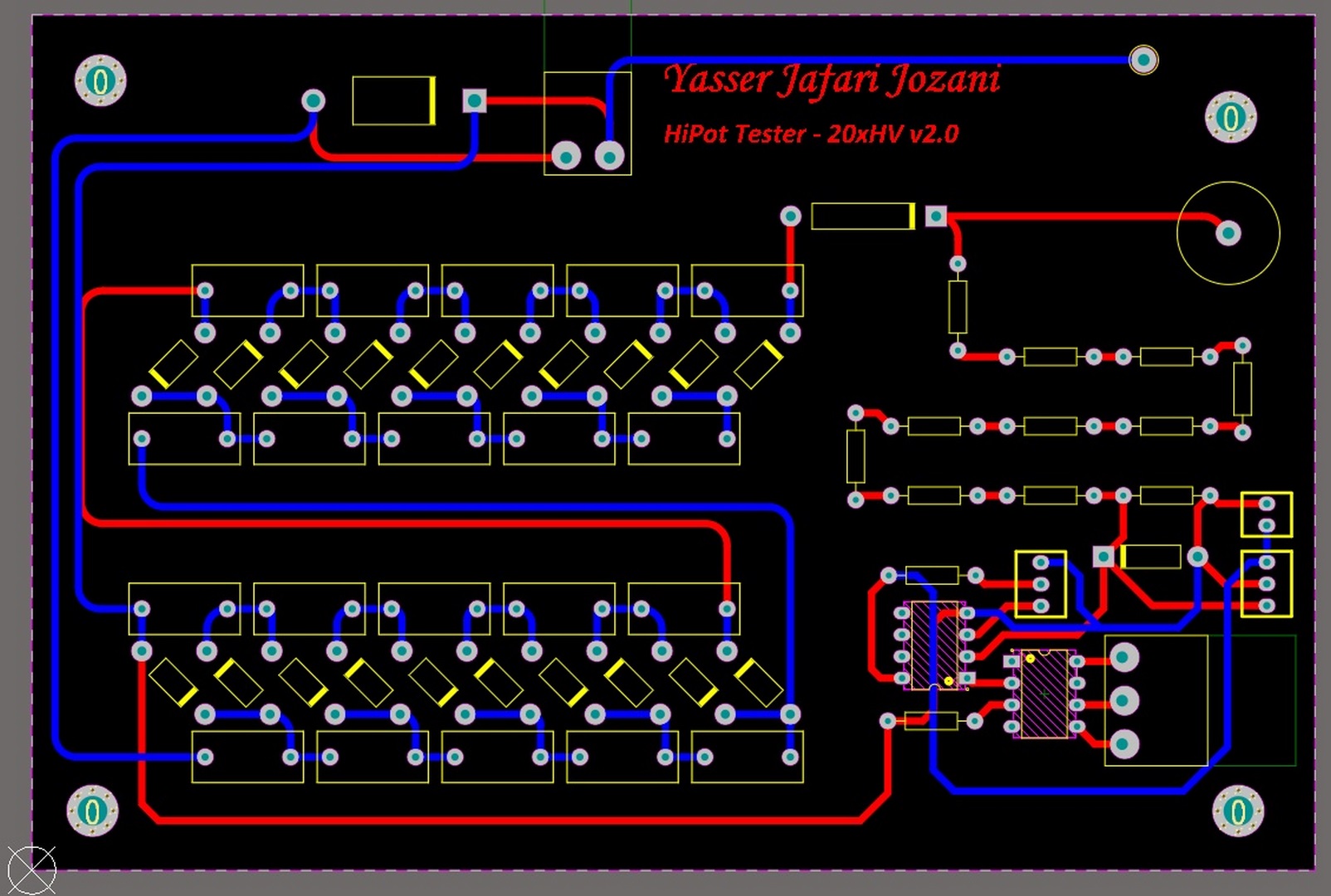

In the figures below, various parts of the schematic and PCB related to this project are shown.
